Product Details:
|
| Material: | Polycarbonate | Thickness: | 12mm~18mm |
|---|---|---|---|
| Width: | 2100mm | Length: | Customzied |
| Standard Size: | 2100*6000mm | Color: | Clear |
| Structure: | 6-Wall Diamond Structure | Brand Of Raw Material: | Covestro, , |
| UV Protection: | 50 Micron UV Resistance Coating | Forming Way: | Coextrusion Technology |
| Quality Warranty: | Ten Years Guarantee | Port Of Loading: | Ningbo, China |
| High Light: | 18mm Multi Wall Polycarbonate Sheet,polycarbonate hollow sheet 6 layer,hollow pc sheet antifire |
||

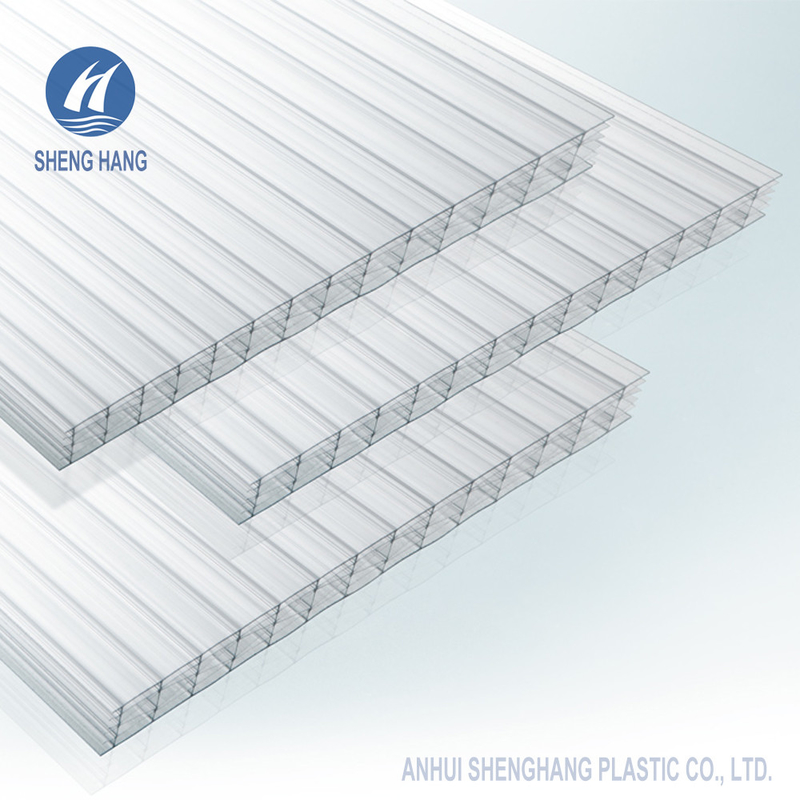

6-Wall Diamond Structure Plastic Board Multiwall Polycarbonate Hollow Sheet
DESCRIPTION
Shenghang Plastic 6-wall Diamond Plastic Board Multi-wall Polycarbonate Sheet is developed for buildings with higher insulation and heat preservation requirements. Two-wall of diamond structure are embedded in four-wall of rectangle. The diamond diagonal support makes the sheet structure more stable and has better load resistance. The light transmittance of the sheet is almost the same as 4-wall rectangle sheet. It is a good material for building design with higher requirements for purlin spacing and thermal insulation. It can save building skeleton profiles and obtain greater light transmittance per unit area, and reduce the energy consumption cost of air conditioning during installation and operation.
PRODUCT ADVANTAGES
● Light weight
● High impact strength
● Virtually unbreakable
● High light transmittance
● UV resistance
● Weather resistance
● Thermal insulation
● Excellent load capacity
● Environmental friendly
SPECIFICATIONS
| 01 | Product Name | 6-wall Diamond Structure Polycarbonate Sheet |
| 02 | Thickness | 12mm ~ 18mm (12mm, 14mm, 16mm, 18mm) |
| 03 | Width | 2100mm |
| 04 | Length | 3000mm, 5800mm, 6000mm, customized |
| 05 | Standard Size | 2100*3000mm, 2100*5800mm, 2100*6000mm |
| 06 | Color | Transparent, bronze, blue, green, white, gray, black, yellow, orange, red, customized |
| 07 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 08 | Warranty | Limited Ten Years Guarantee |
| 09 | MOQ | 300 Square Meters |
| 10 | Fire Resistance | UL94 V-2, UL94 V-0 |
| 11 | UV Protection | 50~80 Micron UV Resistant Coating |
| 12 | Packing | Both sides of the sheet are covered with PE protective film. The printed content of the protective film can be customized. |
| 13 | Technology | Co-extrusion |
| 14 | Delivery Time | 7-10 days after receipt of deposit |
| 15 | Sample | For free (Please contact us for samples) |
| 16 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
| (mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
| 6-wall Diamond | HS6D | 12 | 2.2 | 2100 | 50 | 61 | 2.17 | 2100 | Clear, White, Bronze, Blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black, etc. |
| 14 | 2.5 | 2100 | 50 | 60 | 1.90 | 2450 | |||
| 16 | 2.9 | 2100 | 50 | 59 | 1.84 | 2800 | |||
| 18 | 3.0 | 2100 | 50 | 58 | 1.72 | 3150 |

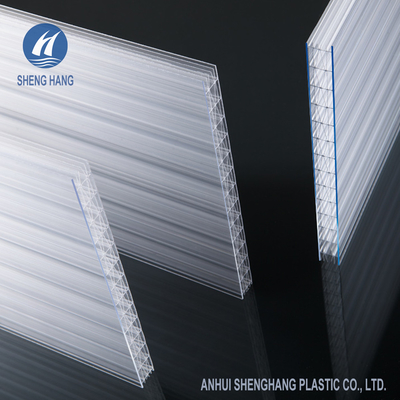

PRODUCT SHOW
PRODUCT CATEGORIES
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for stadium, bus stop, airport.
2. Lighting system for passage, walkway, entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Canopy for bus stop, advertising lamp box, ATM.
6. Lighting decoration for workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
9. Indoor partition. Simple windows and doors.
10. Building curtain walls.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINERS
|
Thickness(mm) |
Specification(mm) |
Quantity for 20GP |
Specification(mm) |
Quantity for 40HQ |
|
(PCS) |
(PCS) |
|||
|
12 |
2100*5800 |
195 |
2100*6000 |
440 |
|
14 |
2100*5800 |
165 |
2100*6000 |
380 |
|
16 |
2100*5800 |
145 |
2100*6000 |
330 |
|
18 |
2100*5800 |
130 |
2100*6000 |
295 |
