Product Details:
|
| Material: | Polycarbonate | Thickness: | 10 Mm |
|---|---|---|---|
| Width: | 2100 Mm | Length: | 6000 Mm |
| Standard Size: | 2100*6000 Mm | Color: | Clear And Colored |
| Structure: | 3-wall Rectangular Hollow | UV Protection: | 50 Micron UV Resistant Coating |
| Quality Guarantee: | Ten Years | OEM Production: | Available |
| Brand Of Raw Material: | Covestro, , | HS Code: | 3920610000 |
| High Light: | Lightweight Polycarbonate Hollow Sheet,2.1*6m Polycarbonate Hollow Sheet,hollow polycarbonate roofing sheet antifire |
||

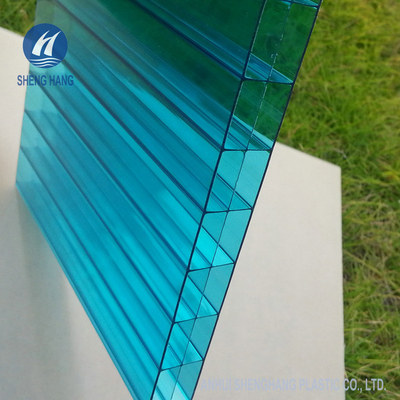

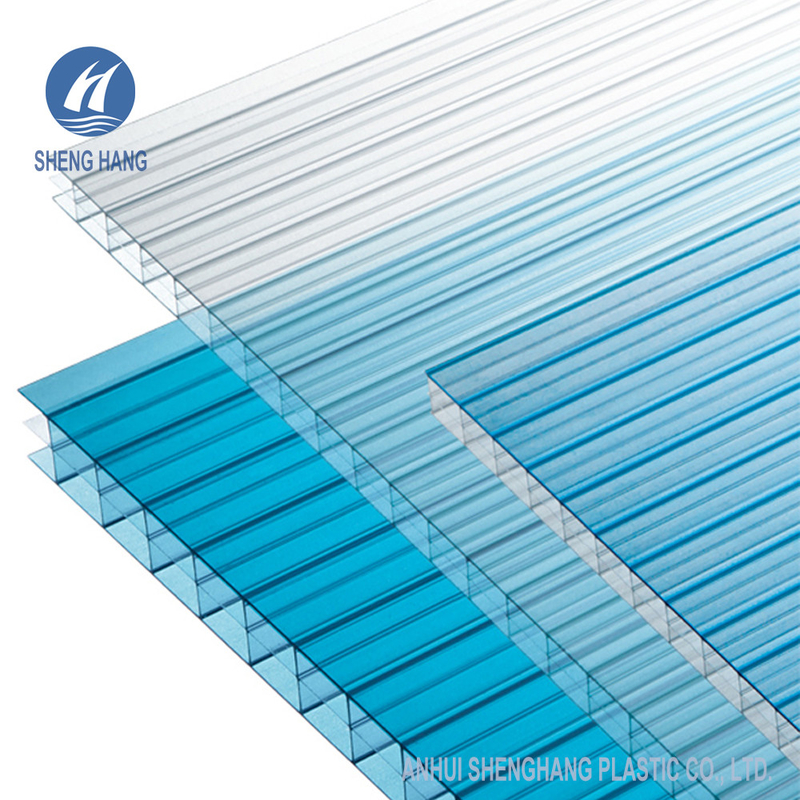

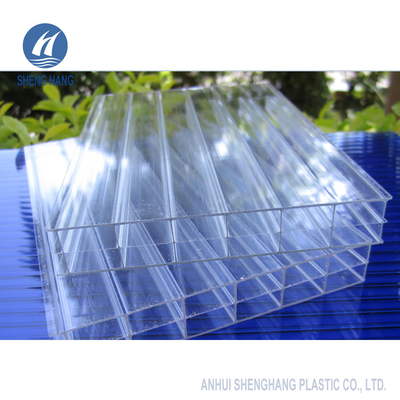

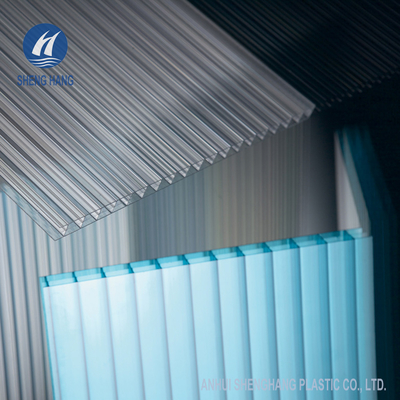

Lightweight Plastic Roof Board Three Walls Hollow Polycarbonate Roofing Sheet
DESCRIPTION
Shenghang Plastic polycarbonate triple wall sheets provide high light transmission, good thermal insulation, high temperature resistance, high impact strength (hail resistance) and can have our min-dew coating which eliminates condensation and water droplets. While increasing thermal insulation properties, triple wall still lets the light in with a minimal drop of light transmission versus the twin wall product. It is the most economical grade of multi-wall sheet available; it comes with a 10 year warranty against yellowing and damage from hail.
PRODUCT ADVANTAGES
● Light weight
● High impact strength
● High light transmittance
● Ultraviolet resistance
● Weather resistance
● Thermal insulation
● Easy to install and process
● Surface reduces noise from rain and hail
● Environmental friendly
SPECIFICATIONS
| 01 | Product Name | 3-wall Polycarbonate Hollow Sheet |
| 02 | Thickness | 8mm ~ 16mm |
| 03 | Width | 700mm, 1050mm, 1220mm, 2100mm, customized(Max.2100mm) |
| 04 | Length | 3000mm, 5800mm, 6000mm, customized |
| 05 | Standard Size | 2100*3000mm, 2100*5800mm, 2100*6000mm |
| 06 | Color | Transparent, bronze, blue, green, white, gray, black, yellow, orange, red, customized |
| 07 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 08 | Warranty | 10 years |
| 09 | Design Style | Modern Simple |
| 10 | Fire Resistance | UL94 V-2, UL94 V-0 |
| 11 | UV Protection | 50~80 micron UV resistant coating |
| 12 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 13 | Technology | Co-extrusion |
| 14 | Delivery Time | 7-10 days after receipt of deposit |
| 15 | Sample | For free (Please contact us for samples) |
| 16 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
| (mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
| 3-wall | HS3R | 6 | 1.4 | 2100 | 50 | 76 | 3.22 | 1050 | Clear, White, Bronze, Blue, Lake blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black… |
| 8 | 1.6 | 2100 | 50 | 72 | 2.92 | 1400 | |||
| 10 | 1.8 | 2100 | 50 | 68 | 2.70 | 1750 | |||
| 12 | 2.1 | 2100 | 50 | 66 | 2.60 | 2100 | |||
| 14 | 2.3 | 2100 | 50 | 65 | 2.40 | 2450 | |||
| 16 | 2.5 | 2100 | 50 | 63 | 2.27 | 2800 | |||
| 4-wall | HS4R | 8 | 1.8 | 2100 | 50 | 68 | 2.56 | 1400 | |
| 10 | 1.9 | 2100 | 50 | 67 | 2.39 | 1750 | |||
| 12 | 2.0 | 2100 | 50 | 65 | 2.30 | 2100 | |||
| 14 | 2.2 | 2100 | 50 | 64 | 2.10 | 2450 | |||
| 16 | 2.4 | 2100 | 50 | 63 | 2.00 | 2800 | |||
| 18 | 2.6 | 2100 | 50 | 62 | 1.88 | 3150 |
PRODUCT SHOW
COLORS SELECTION
PRODUCT CATEGORIES
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
OPTIONAL FUNCTIONS
1. Anti-drip
The new generation of the anti-drip sheets is made of hydroxyl-coated nano-silicone anti-fogging material imported from the original. This hydrophilic anti-fogging material can increase the tension of water vapor on the surface of the polycarbonate sheet. Its typical contact angle of water droplets can be as low as 8 degrees. The water droplets formed by the accumulation of fog will quickly distribute downward along the slope of the inner wall of the polycarbonate sheet. It is suitable for lighting roofs that do not allow droplets, especially for swimming pools, agricultural greenhouses, and plant ecological gardens.
2. Frosted
The twin-wall polycarbonate sheet is modified by a special BAYER brilliant masterbatch while maintaining high transmittance. Its inner wall particle effect changes the glare band formed by light refraction of ordinary board, so that the sunlight becomes soft and does not glare.
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.
2. Lighting system for passage, walkway, the entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Bus stop, advertising lamp box, canopy for ATM.
6. Lighting decoration for the workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINERS
|
Thickness (mm) |
Specification (mm) |
Quantity for 1*20GP |
Specification (mm) |
Quantity for 1*40HQ |
| (PCS) | (PCS) | |||
| 8 | 2100*5800 | 290 | 2100*6000 | 670 |
| 10 | 2100*5800 | 235 | 2100*6000 | 535 |
| 12 | 2100*5800 | 195 | 2100*6000 | 440 |
| 16 | 2100*5800 | 150 | 2100*6000 | 330 |
