Heat Shielding Performance Polycarbonate Hollow Sheet 50um Anti UV 16mm OEM

Exceptional Thermal Insulation 16mm Four Wall Polycarbonate Hollow Sheet

DESCRIPTION

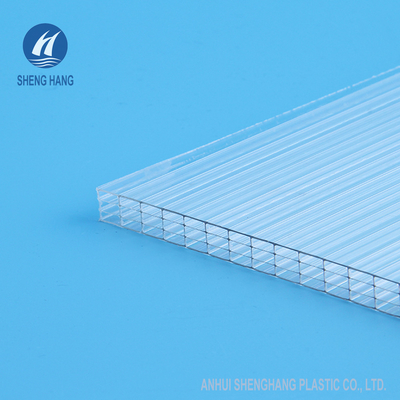

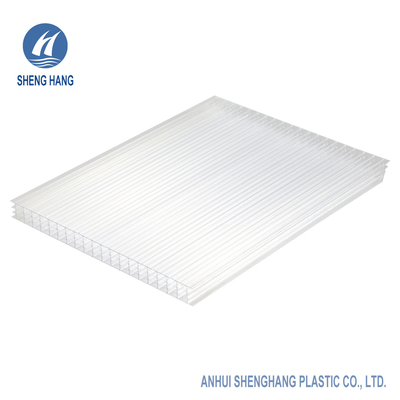

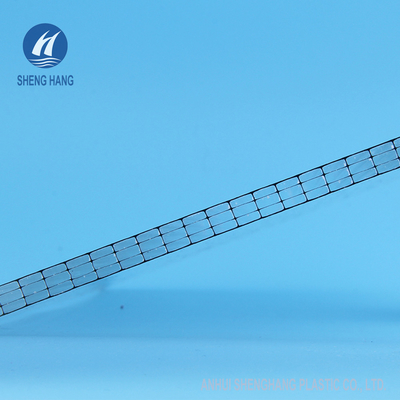

Shenghang Plastic Four Wall Polycarbonate Sheet is a versatile roofing material, the color can be transparent and translucent. It has four walls and creates three parallel insulation channels. This design adds both impact toughness and the ability to support the large weight. Meantime, four wall polycarbonate sheet offers preferential thermal insulation property. Four wall polycarbonate sheets are widely used for roofing, facade system, and the partition wall between rooms.

PRODUCT ADVANTAGES
● Light weight
● High impact strength
● High light transmittance
● Ultraviolet resistance
● Weather resistance
● Thermal insulation
● Easy to Handle, Install, and Maintain

● Surface reduces noise from rain and hail

● Environmental friendly

SPECIFICATIONS

TECHNICAL DATA

PRODUCT SHOW

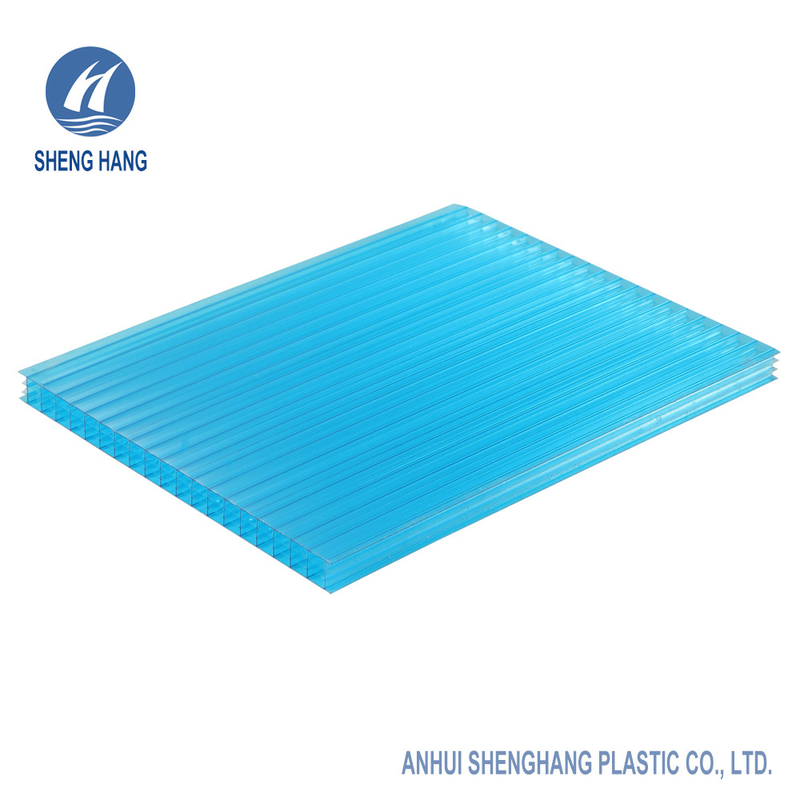

COLORS SELECTION

PRODUCT CATEGORIES

FEATURES

1) Lightweight: Only 1/12 of the weight of glass of the same thickness

2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet

3) Fire resistance: UL94 V-2, UL94 V-0

4) Good light transmittance: Up to 85%

5) Ultraviolet resistance: 50~80um UV coating

6) Excellent physical, mechanical, and electrical properties

7) Weather resistance: -40°C ~+120°C

8) Excellent thermal insulation performance



OPTIONAL FUNCTIONS
1. Anti-drip
The new generation of the anti-drip sheets is made of hydroxyl-coated nano-silicone anti-fogging material imported from the original. This hydrophilic anti-fogging material can increase the tension of water vapor on the surface of the polycarbonate sheet. Its typical contact angle of water droplets can be as low as 8 degrees. The water droplets formed by the accumulation of fog will quickly distribute downward along the slope of the inner wall of the polycarbonate sheet. It is suitable for lighting roofs that do not allow droplets, especially for swimming pools, agricultural greenhouses, and plant ecological gardens.

2. Frosted
The twin-wall polycarbonate sheet is modified by a special BAYER brilliant masterbatch while maintaining high transmittance. Its inner wall particle effect changes the glare band formed by light refraction of ordinary board, so that the sunlight becomes soft and does not glare.


FACTORY TOUR

TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.

2. Lighting system for passage, walkway, the entrance of subway.

3. Agriculture greenhouse, canopy for vegetables, animals, flowers.

4. Heat insulation, soundproof for expressway, buildings.

5. Bus stop, advertising lamp box, canopy for ATM.

6. Lighting decoration for the workshop, commercial canopy, villas.

7. Lighting system for skylight, cellar, dome.

8. Decoration panel for inner/outer wall, roof.


PACKING & SHIPPING

LOADING QUANTITY OF CONTAINERS
