Product Details:
|
| Material: | Polycarbonate | Thickness: | 8mm~12mm |
|---|---|---|---|
| Width: | 2100mm | Length: | Customzied |
| Standard Size: | 2100*6000mm | Color: | Clear |
| Structure: | 5-wall Rectangular Structure | UV Resistance: | 50 Micron UV Protection |
| Warranty: | Limited Ten Years Guarantee | Transport Package: | PE Protective Film |
| Brand Of Raw Material: | Covestro, | HS Code: | 3920610000 |
| High Light: | fireproof five wall polycarbonate,5 wall polycarbonate panels 2100*6000mm,five wall polycarbonate panels 12mm |
||

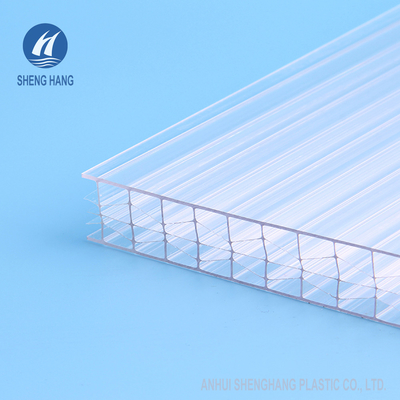

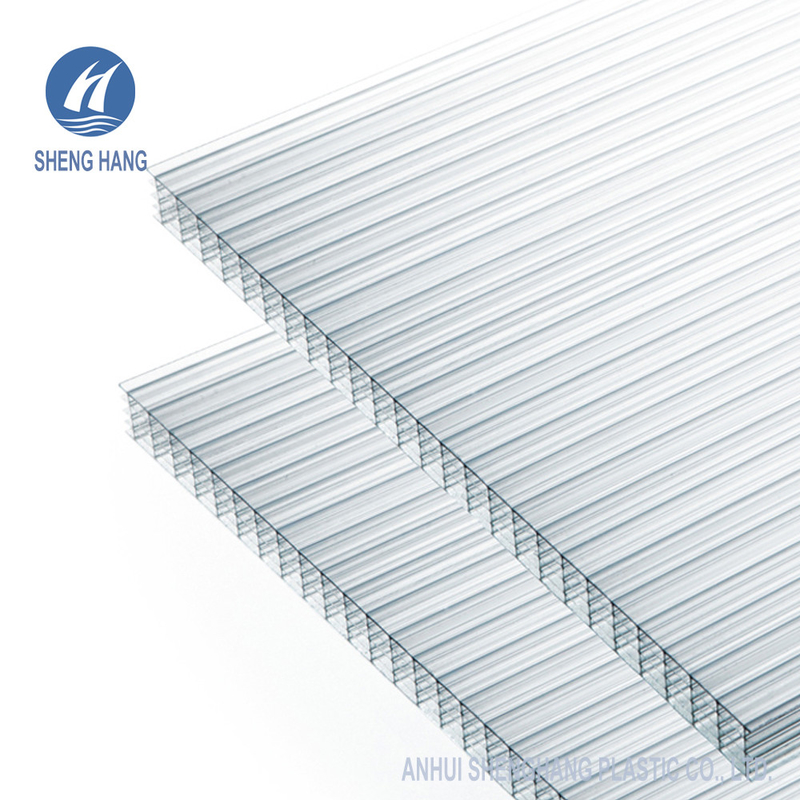

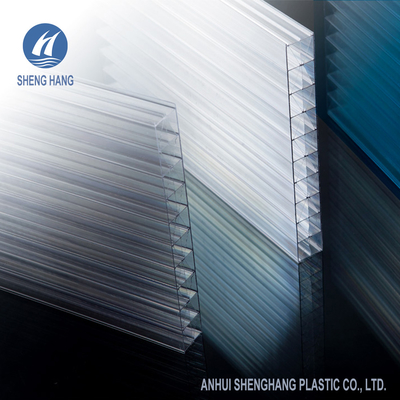

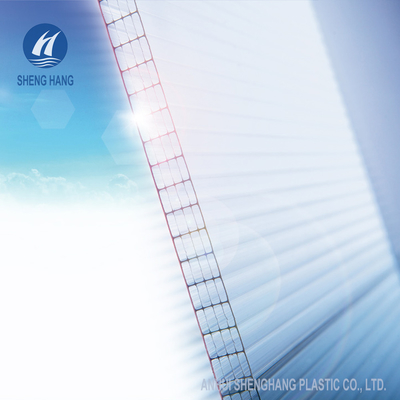

8~12mm Multiwall Plastic Panels 5-wall Polycarbonate Hollow Sheets
DESCRIPTION
Shenghang Plastic Five Walls Polycarbonate Sheet increases the R Value over traditional twin wall polycarbonate. The material is extruded with three inner layers of polycarbonate to create more air pockets, thus increasing the R Value. This makes Shenghang Plastic Five Wall an ideal covering for all greenhouse applications where heat saving is a concern. It is also ideal for industrial and residential building such as: • Greenhouse Applications • Skylights • Roofing, Glazing • Windows • Do-It-Yourself Projects • Pool Enclosures
PRODUCT ADVANTAGES
● Light weight
● High impact strength
● High light transmittance
● UV resistance
● Weather resistance
● Thermal insulation
● Excellent load capacity
● Environmental friendly
SPECIFICATIONS
1) Thickness: 8mm~12mm(8mm, 10mm, 12mm)
2) Standard size: 2100*6000mm, 2100*5800mm
3) Colors: Transparent(clear), Bronze, Green, Blue, Lake blue, White, Gry, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twin-wall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.
| Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
| (mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
| 5-wall | HS5R | 8 | 1.8 | 2100 | 50 | 65 | 2.53 | 1400 | Clear, White, Bronze, Blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black, etc. |
| 10 | 2.0 | 2100 | 50 | 64 | 2.30 | 1750 | |||
| 12 | 2.2 | 2100 | 50 | 63 | 2.26 | 2100 | |||
| 5-wall X | HS5R-X | 16 | 2.5 | 2100 | 50 | 61 | 1.89 | 2800 | |
| 18 | 2.8 | 2100 | 50 | 60 | 1.78 | 3150 | |||
| 20 | 3.2 | 2100 | 50 | 59 | 1.69 | 3500 | |||
| 25 | 3.5 | 2100 | 50 | 57 | 1.50 | 4375 | |||
| 30 | 4.0 | 2100 | 50 | 55 | 1.35 | 5250 | |||
| 6-wall Diamond | HS6D | 12 | 2.2 | 2100 | 50 | 61 | 2.17 | 2100 | |
| 14 | 2.5 | 2100 | 50 | 60 | 1.90 | 2450 | |||
| 16 | 2.9 | 2100 | 50 | 59 | 1.84 | 2800 | |||
| 18 | 3.0 | 2100 | 50 | 58 | 1.72 | 3150 | |||
| 7-wall | HS7R | 14 | 2.4 | 2100 | 50 | 58 | 1.80 | 2450 | |
| 16 | 2.6 | 2100 | 50 | 56 | 1.66 | 2800 | |||
| 18 | 2.8 | 2100 | 50 | 54 | 1.52 | 3150 | |||
| 20 | 3.0 | 2100 | 50 | 52 | 1.38 | 3500 | |||
| 22 | 3.2 | 2100 | 50 | 50 | 1.24 | 3850 | |||
| 8-wall Diamond |
HS8D | 25 | 3.4 | 2100 | 50 | 48 | 1.40 | 4375 | |
| 32 | 3.6 | 2100 | 50 | 46 | 1.28 | 5600 | |||
| 35 | 4.0 | 2100 | 50 | 44 | 1.19 | 6125 | |||
| 40 | 4.5 | 2100 | 50 | 42 | 1.10 | 7000 |
PRODUCT SHOW
COLOR SELECT
PRODUCT CATEGORIES
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
OPTIONAL FUNCTIONS
1. Anti-drip
The new generation of the anti-drip sheets is made of hydroxyl-coated nano-silicone anti-fogging material imported from the original. This hydrophilic anti-fogging material can increase the tension of water vapor on the surface of the polycarbonate sheet. Its typical contact angle of water droplets can be as low as 8 degrees. The water droplets formed by the accumulation of fog will quickly distribute downward along the slope of the inner wall of the polycarbonate sheet. It is suitable for lighting roofs that do not allow droplets, especially for swimming pools, agricultural greenhouses, and plant ecological gardens.
2. Frosted
The twin-wall polycarbonate sheet is modified by a special BAYER brilliant masterbatch while maintaining high transmittance. Its inner wall particle effect changes the glare band formed by light refraction of
ordinary board, so that the sunlight becomes soft and does not glare.
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.
2. Lighting system for passage, walkway, the entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Bus stop, advertising lamp box, canopy for ATM.
6. Lighting decoration for the workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINER
| Thickness(mm) | Specification(mm) | QTY. 20GP | Specification(mm) | QTY. 40HQ |
| (PCS) | (PCS) | |||
| 8 | 2100*5800 | 290 | 2100*6000 | 670 |
| 10 | 2100*5800 | 235 | 2100*6000 | 535 |
| 12 | 2100*5800 | 195 | 2100*6000 | 440 |
