Product Details:
|
| Material: | Polycarbonate | Thickness: | 25mm~40mm |
|---|---|---|---|
| Width: | 2100mm | Length: | Customzied |
| Color: | Clear, Tinted | Structure: | 8-Wall Diamond Structure |
| Brand Of Raw Material: | Covestro, , | UV Protection: | 50 Micron UV Resistance Coating |
| Forming Way: | Coextrusion Technology | Quality Warranty: | Ten Years Guarantee |
| Hs Code: | 3920610000 | Typical Applications: | Roofing, Curtain Wall, Partition, Awning, Canopy |
| High Light: | 50 Micron Multi Wall Polycarbonate Sheet,8 Wall 25mm multiwall polycarbonate sheet,polycarbonate clear multiwall roof panel Lightweight |
||

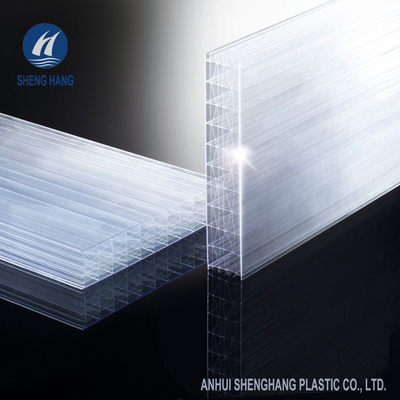

Multiwall Polycarbonate Hollow Sheet 8 Wall Diamond Structure Plastic Board
DESCRIPTION
Shenghang Plastic 25mm~40mm 8-wall Polycarbonate Multiwall Sheet is developed for lighting, side windows and elevation partition of large buildings with high load and heat insulation performance requirements. The diamond-shaped distribution of double oblique bars in the six-storey rectangular structure makes the whole sheet more stable. The cross-section structure of up to 8 walls makes the sheet have better load-bearing, impact resistance and thermal insulation performance.
PRODUCT ADVANTAGES
● Light weight
● High impact strength
● Virtually unbreakable
● High light transmittance
● UV resistance
● Weather resistance
● Thermal insulation
● Excellent load capacity
● Environmental friendly
SPECIFICATIONS
| 01 | Product Name | 8-wall Diamond Structure Polycarbonate Sheet |
| 02 | Thickness | 25mm ~ 40mm (25mm, 32mm, 35mm, 40mm) |
| 03 | Width | 2100mm |
| 04 | Length | 3000mm, 5800mm, 6000mm, customized |
| 05 | Standard Size | 2100*3000mm, 2100*5800mm, 2100*6000mm |
| 06 | Color | Transparent, bronze, blue, green, white, gray, black, yellow, orange, red, customized |
| 07 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 08 | Warranty | Limited Ten Years Guarantee |
| 09 | MOQ | 300 Square Meters |
| 10 | Fire Resistance | UL94 V-2, UL94 V-0 |
| 11 | UV Protection | 50~80 Micron UV Resistant Coating |
| 12 | Packing | Both sides of the sheet are covered with PE protective film. The printed content of the protective film can be customized. |
| 13 | Technology | Co-extrusion |
| 14 | Delivery Time | 7-10 days after receipt of deposit |
| 15 | Sample | For free (Please contact us for samples) |
| 16 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
| (mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
| 8-wall Diamond |
HS8D | 25 | 3.4 | 2100 | 50 | 48 | 1.40 | 4375 | Clear, White, Bronze, Blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black, etc. |
| 32 | 3.6 | 2100 | 50 | 46 | 1.28 | 5600 | |||
| 35 | 4.0 | 2100 | 50 | 44 | 1.19 | 6125 | |||
| 40 | 4.5 | 2100 | 50 | 42 | 1.10 | 7000 |

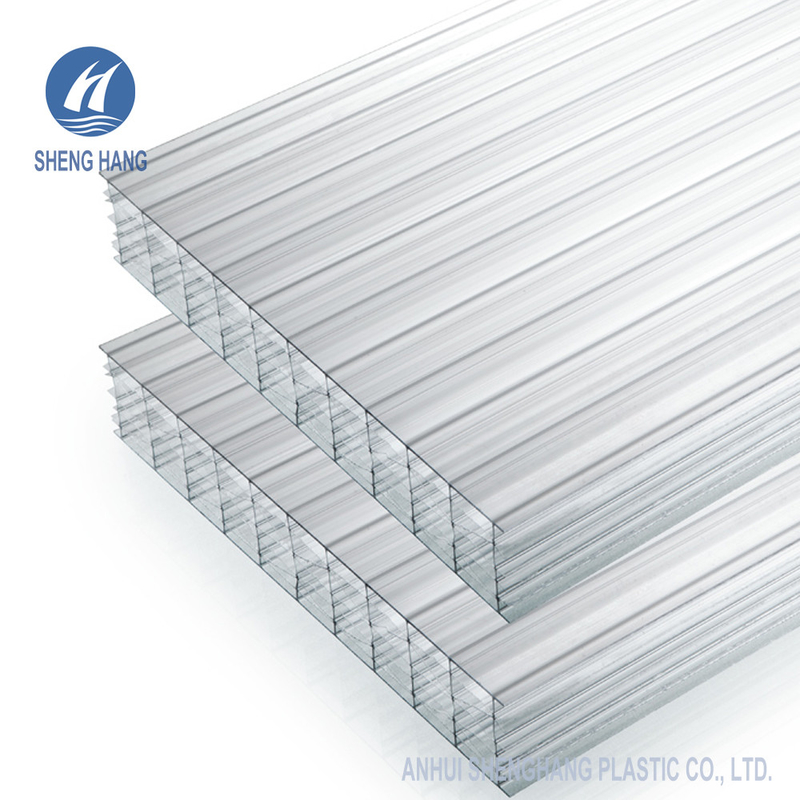

PRODUCT SHOW
PRODUCT CATEGORIES
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for stadium, bus stop, airport.
2. Lighting system for passage, walkway, entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Canopy for bus stop, advertising lamp box, ATM.
6. Lighting decoration for workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
9. Indoor partition. Simple windows and doors.
10. Building curtain walls.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINERS
|
Thickness(mm) |
Specification(mm) |
Quantity for 20GP |
Specification(mm) |
Quantity for 40HQ |
|
(PCS) |
(PCS) |
|||
|
12 |
2100*5800 |
195 |
2100*6000 |
440 |
|
14 |
2100*5800 |
165 |
2100*6000 |
380 |
|
16 |
2100*5800 |
145 |
2100*6000 |
330 |
|
18 |
2100*5800 |
130 |
2100*6000 |
295 |
