Product Details:
|
| Raw Material: | Polycarbonate | Color: | Clear And Colored |
|---|---|---|---|
| Thickness: | 1.0 Mm | Width: | 1000 Mm |
| Length: | 1 Meter ~ 6 Meters | UV Protection: | 50 Micron UV Resistance |
| Brand Of Raw Material: | Covestro, , | Quality Warranty: | Limited Ten Years Warranty |
| HS Code: | 39206100 | Structure: | Square Wave |
| High Light: | Square Wave Corrugated Polycarbonate Roofing Panel,1.0mm Corrugated Polycarbonate Roofing Panel,Square Wave Corrugated Polycarbonate Sheet |
||

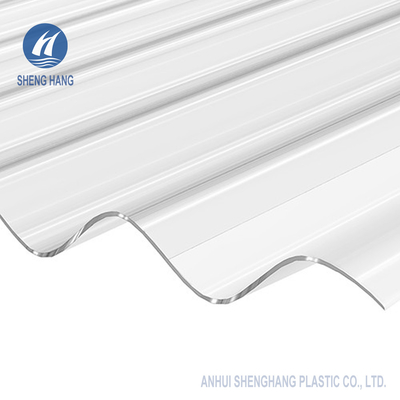

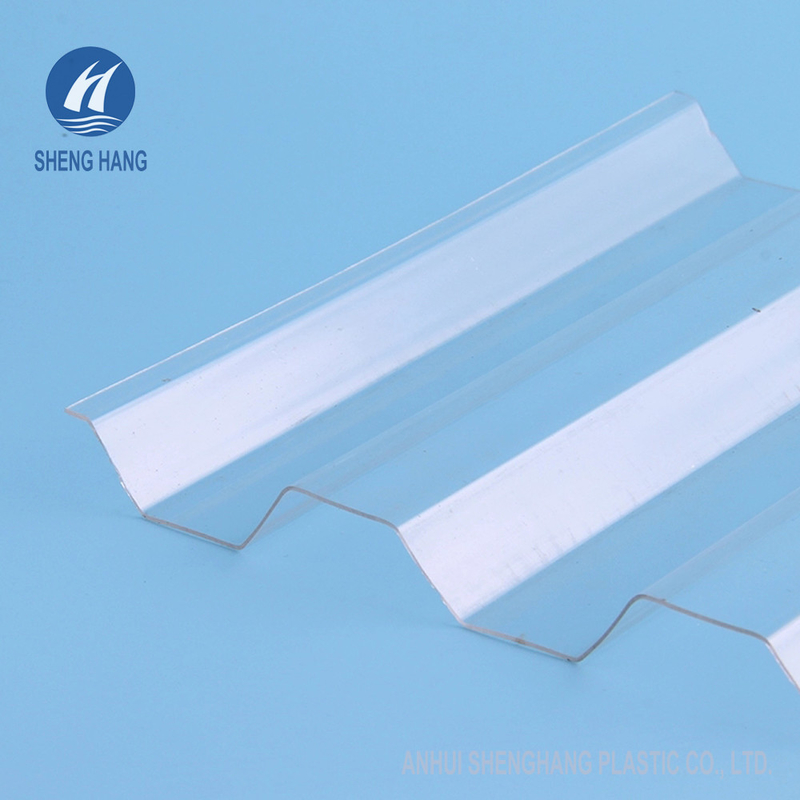

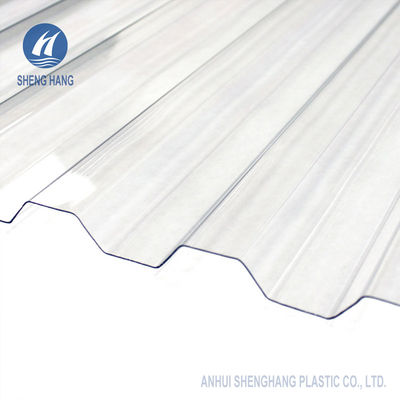

Polycarbonate Square Wave Sheet Corrugated Polycarbonate Roofing Panel
DESCRIPTION
Shenghang Plastic corrugated polycarbonate square wave sheets offer a high degree of light transmittance while blocking harmful UV rays. Lightweight, yet 10 times stronger than acrylic and 200 times stronger than glass, corrugated polycarbonate is the perfect option for various applications, some of which are hobby greenhouses, pool enclosures, window replacements, skylights, canopies, carports, sunrooms, and more! These sheets have drip guard protection which is a coating that ensures condensation is carried away from roofing so droplets will not fall. These sheets also come with a limited 10-year warranty and are easy to fabricate with no special tools required.
PRODUCT ADVANTAGES
● Unbreakable
● Weather resistance
● Waterproof
● Can be transparent or opaque
● Maximum condensation control
● Fire resistant
● Thermal insulation
● UV resistance
● Lifetime limited warranty
● Lightweight and easy to handle
SPECIFICATIONS
| 01 | Product Name | Corrugated Polycarbonate Sheet |
| 02 | Thickness | 0.8mm ~ 3.0mm |
| 03 | Width | 760mm, 840mm, 900mm, 930mm, 1000mm, customized |
| 04 | Length | 2000mm, 3000mm, 4000mm, 5000mm, 6000mm, customized |
| 05 | Color | Transparent, bronze, blue, green, white, gray, yellow, customized |
| 06 | Certification | SGS, ROSH, ISO9001:2008, Fire-resistant Test Report |
| 07 | Type | Corrugated |
| 08 | Warranty | Ten years |
| 09 | Design Style | Modern |
| 10 | Fire Resistance | UL94 V2, UL94 V0 |
| 11 | UV Protection | 50 micron anti-uv coating |
| 12 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 13 | Technology | Co-extrusion |
| 14 | Delivery Time | 7-10 days after receipt of deposit |
| 15 | Sample | For free (Please contact us for samples) |
| 16 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| FEATURES | UNIT | DATA |
| Specific Gravity | g/cm2 | 1.2 |
| Light Transmission | % | 88 |
| Impact Strength | J/m | 850 |
| The Bending Strength | N/mm2 | 100 |
| Tensile Strength | N/mm2 | ≥60 |
| Modulus of Elasticity | mpa | 2400 |
| TensileStressat Break | mpa | ≥65 |
| Elongation at Break | % | >100 |
| Specific Heat | KJ/KG · k | 1.17 |
| Heat Conductivity | W/m2· K | 0.2 |
| HeatDeflection Temperature | °C | 140 |
| Coefficientof Thermal Expansion | mm/m2 ·°C | 0.067 |
| Range of Temperature | °C | -40~~ +120 |
| Effect of Soundproof | 10mm solid sheet | 33 db attenuation |
FEATURES
1) Good light transmission: reaches 12%~95% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: only half weight of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um anti-UV coating
7) Heat insulation: heat Conductivity 0.21 W/m· K
8) Good stability, Anti-corrosion
PRODUCT SHOW
PRODUCT CATEGORIES
FACTORY TOUR
TYPICAL APPLICATIONS
1) Roofing materials for the greenhouse, corridors, pavilions, recreational and rest places;
2) Roofing and wall lighting of factories, warehouses, and families;
3) Daylighting band of various building roofs;
4) Lighting materials, walls, roofs, doors and windows, screens, skylight;
5) Ceiling material for awning, canopy, carport, car shed, balcony.
PACKING AND SHIPPING
