Product Details:
|
| Raw Material: | Polycarbonate | Color: | Transparent |
|---|---|---|---|
| Thickness: | 1.0mm | Width: | 860 Mm |
| Length: | 1 Meter ~ 6 Meters | UV Protection: | 50 Micron UV Resistance |
| Brand Of Raw Material: | Covestro, , | Quality Warranty: | Limited Ten Years Warranty |
| HS Code: | 39206100 | Samples: | Available |
| High Light: | 1.0mm Corrugated Plastic Roofing Sheets,UV Protection Corrugated Plastic Roofing Sheets,UV Protection Polycarbonate Roof Panels |
||

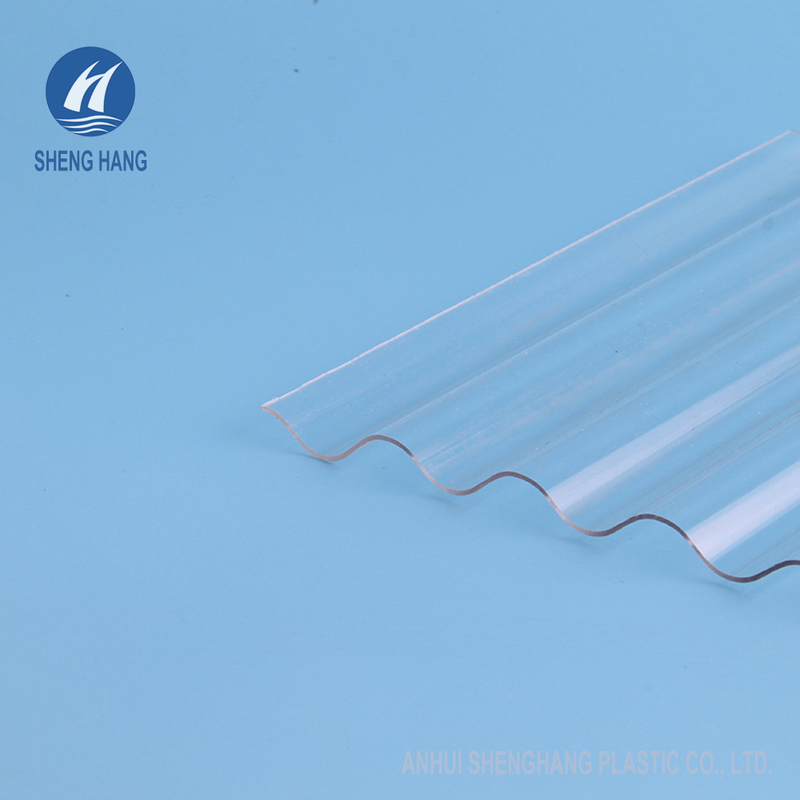

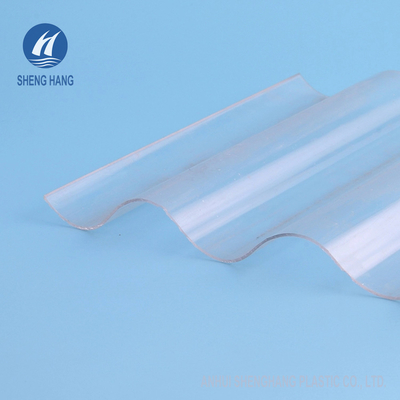

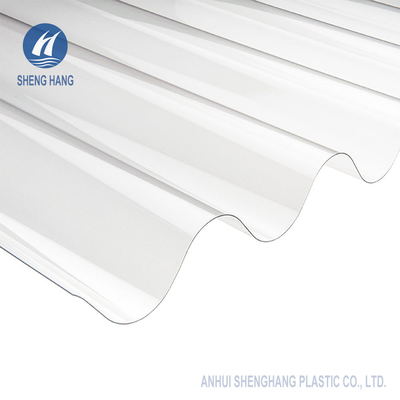

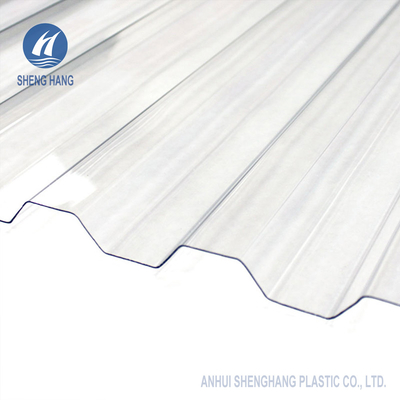

UV Protection Plastic Roofing Sheets Compact Polycarbonate Roof Panels
DESCRIPTION
Shenghang Plastic corrugated polycarbonate sheet is used for a variety of applications including supermarkets, restaurants, hotels, car washes, residential & commercial kitchens, office buildings, sports arenas, swimming pools, warehouses, livestock facilities, airplane hangars, food processors, airports, train stations, museums, deck and patio covers, deck roofs, car ports, fences, awnings, sun rooms, and more. Most commonly, Shenghang Plastic polycarbonate is used as plastic roofing material due to its lightweight, unique corrugated shape, and incredible strength.
PRODUCT ADVANTAGES
● Unbreakable
● Weather resistance
● Waterproof
● Can be transparent or opaque
● Maximum condensation control
● Fire resistant
● Thermal insulation
● UV resistance
● Lifetime limited warranty
● Lightweight and easy to handle
SPECIFICATIONS
| 01 | Product Name | Corrugated Polycarbonate Sheet |
| 02 | Thickness | 0.8mm ~ 3.0mm |
| 03 | Width | 760mm, 840mm, 900mm, 930mm, 1000mm, customized |
| 04 | Length | 2000mm, 3000mm, 4000mm, 5000mm, 6000mm, customized |
| 05 | Color | Transparent, bronze, blue, green, white, gray, yellow, customized |
| 06 | Certification | SGS, ROSH, ISO9001:2008, Fire-resistant Test Report |
| 07 | Type | Corrugated |
| 08 | Warranty | Ten years |
| 09 | Design Style | Modern |
| 10 | Fire Resistance | UL94 V2, UL94 V0 |
| 11 | UV Protection | 50 micron anti-uv coating |
| 12 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 13 | Technology | Co-extrusion |
| 14 | Delivery Time | 7-10 days after receipt of deposit |
| 15 | Sample | For free (Please contact us for samples) |
| 16 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| FEATURES | UNIT | DATA |
| Specific Gravity | g/cm2 | 1.2 |
| Light Transmission | % | 88 |
| Impact Strength | J/m | 850 |
| The Bending Strength | N/mm2 | 100 |
| Tensile Strength | N/mm2 | ≥60 |
| Modulus of Elasticity | mpa | 2400 |
| TensileStressat Break | mpa | ≥65 |
| Elongation at Break | % | >100 |
| Specific Heat | KJ/KG · k | 1.17 |
| Heat Conductivity | W/m2· K | 0.2 |
| HeatDeflection Temperature | °C | 140 |
| Coefficientof Thermal Expansion | mm/m2 ·°C | 0.067 |
| Range of Temperature | °C | -40~~ +120 |
| Effect of Soundproof | 10mm solid sheet | 33 db attenuation |
FEATURES
1) Good light transmission: reaches 12%~95% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: only half weight of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um anti-UV coating
7) Heat insulation: heat Conductivity 0.21 W/m· K
8) Good stability, Anti-corrosion
PRODUCT SHOW
PRODUCT CATEGORIES
FACTORY TOUR
TYPICAL APPLICATIONS
1) Roofing materials for the greenhouse, corridors, pavilions, recreational and rest places;
2) Roofing and wall lighting of factories, warehouses, and families;
3) Daylighting band of various building roofs;
4) Lighting materials, walls, roofs, doors and windows, screens, skylight;
5) Ceiling material for awning, canopy, carport, car shed, balcony.
