Product Details:
|
| Raw Material: | Polycarbonate | Color: | Brown |
|---|---|---|---|
| Thickness: | 3 Mm | Size: | Customized |
| Standard: | Based On Customer′s Drawings | UV Protection: | 50 Micron UV Resistance Coating |
| Forming Way: | Coextrusion | Warranty: | Ten Years |
| Design Style: | Modern | Port Of Loading: | Shanghai, China |
| High Light: | Coextrusion Polycarbonate Products,3mm roof rack wind deflector,Polycarbonate Roof Rack Fairing |
||

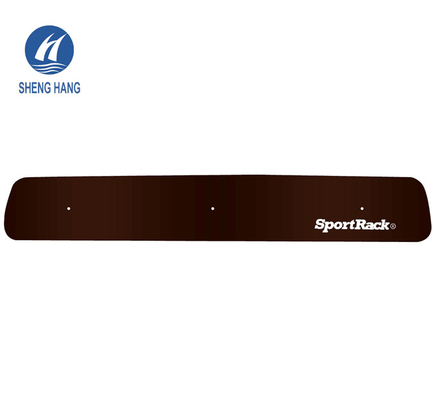

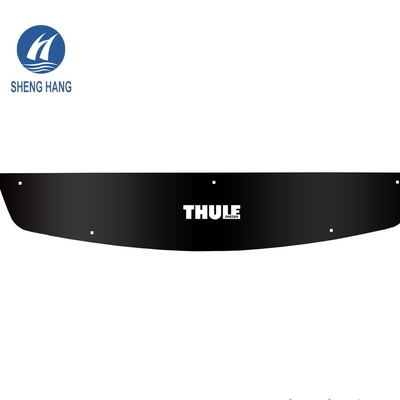

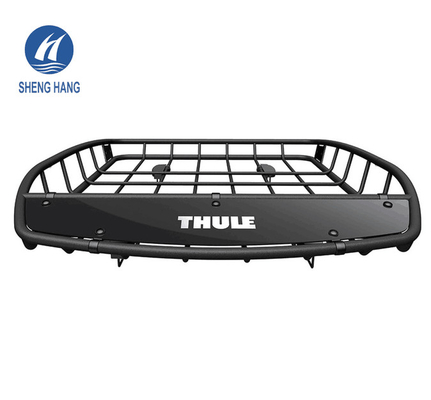

China Wholesale Roof Basket Spoiler PC Polycarbonate Roof Rack Fairing
DESCRIPTION
Shenghang Plastic Universal fairing deflects wind around your roof rack to drastically reduce noise and drag. Padded feet protect your vehicle's roof. Mounts easily to most crossbar configurations. Application: round, square, aero, elliptical, and most factory crossbars. This Fairing has been engineered to minimize wind noise whilst driving. Hearing the whistle of wind running through the load you're transporting can take away the fun of driving. Shenghang Plastic Wind Fairing deflects air around your load which keeps it quiet.
PRODUCT ADVANTAGES
● Noise Reduction
● Save fuel consumption
● Customizable appearance
● Unbreakable
● UV Resistance
● Weather resistance
● Lightweight
● Deflect wind, reduce roof rack noise
● Sleek design enhances the overall look of your roof rack
● Easy installation on most crossbars with ratcheting straps
SPECIFICATIONS
| 01 | Product Name | Polycarbonate Roof Rack Fairing |
| 02 | Thickness | 3mm |
| 03 | Size | Based on the drawings |
| 04 | Material | Solid Polycarbonate Sheet |
| 05 | Color | Brown, Black |
| 06 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 07 | Surface Texture | Polished |
| 08 | Warranty | 10 years |
| 09 | Design Style | Modern |
| 10 | Fire Resistance | UL94 V-2, UL94 V-0 |
| 11 | UV Protection | Double-sided UV Resistance Coating |
| 12 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 13 | Technology | Coextrusion |
| 14 | Delivery Time | 7-10 days after receipt of deposit |
| 15 | MOQ | 100 Pieces |
| 16 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| 1) Impact strength: | 850J/m. About 200-350 times of common glass. |
| 2) Light weight: | About 1/2 times of glass of the same thickness. |
| 3) Specific gravity: | 1.2 g/cm3 |
| 4) Coefficient of thermal expansion: | 0.065 mm/m° C |
| 5) Temperature range: | -40° Cto 120° C |
| 6) Heat conductivity: | 2.3-3.9 W/m2 º |
| 7) Tensile strength: | >=60N/mm2 |
| 8) Flexural strength: | 100N/mm2 |
| 9) Heat deflection temperature | 140 ° C |
| 10) Modulus of elasticity: | 2, 400mPa |
| 11) Tensile street at break: | >=65mPa |
| 12) Elongation at break: | >100% |
| 13) Specific heat: | 1.16J/kgk |
| 14) Soundproof index: | 4mm-27dB,10mm-33dB |
FEATURES
1) Good light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: 1/2 of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um one side or both sides anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
The solid polycarbonate sheet has excellent dimensional stability, which is very suitable for secondary processing. The polycarbonate processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
Shenghang Plastic can provide professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are tested and approved.
