Product Details:
|
| Raw Material: | Polycarbonate | Color: | Transparent |
|---|---|---|---|
| Thickness: | 8 Mm | Size: | Customized |
| Standard: | Based On Customer′s Drawings | UV Protection: | 50 Micron UV Resistance Coating |
| Forming Way: | Hot Forming | Warranty: | Ten Years |
| Design Style: | Modern | Port Of Loading: | Shanghai, China |
| High Light: | wearproof Polycarbonate Products,plastic skylight dome 8mm,dome polycarbonate skylight UV Protection |
||

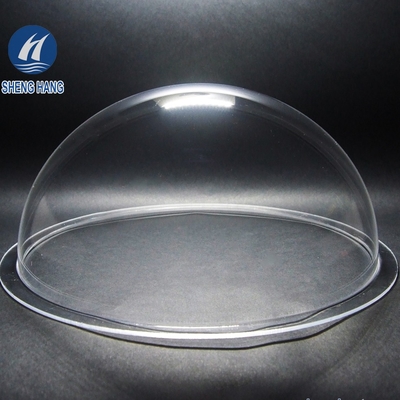

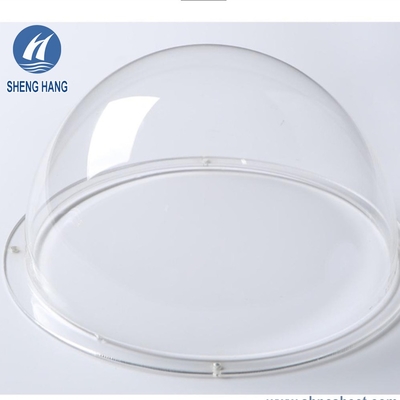

Double Sides UV Protection Plastic Sheet Hot Forming Polycarbonate Dome Skylight
DESCRIPTION
Shenghang Plastic polycarbonate skylight dome is made of the high quality polycarbonate sheet through the hot forming technology. The polycarbonate skylights block out harmful UV rays, so you can enjoy the sun without its damaging effects. Shenghang Plastic polycarbonate skylights are also highly adaptable to suit a wide variety of needs, with options for different levels of light diffusion, heat resistance and ventilation. Get in touch with our team to learn more about what polycarbonate skylights can do for your home or building!
PRODUCT ADVANTAGES
● High transparency
● High light transmittance
● High impact strength
● Unbreakable
● UV Resistance
● Weather resistance
● Lightweight
● Thermal insulation
SPECIFICATIONS
| 01 | Product Name | Polycarbonate Skylight Dome |
| 02 | Thickness | 3mm ~10mm |
| 03 | Size | Based on the drawings |
| 04 | Material | Solid Polycarbonate Sheet |
| 05 | Color | Transparent |
| 06 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 07 | Surface Texture | Polished |
| 08 | Warranty | 10 years |
| 09 | Design Style | Modern |
| 10 | Fire Resistance | UL94 V-2, UL94 V-0 |
| 11 | UV Protection | 50 micron, 80 micron |
| 12 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 13 | Technology | Hot Forming |
| 14 | Delivery Time | 7-10 days after receipt of deposit |
| 15 | MOQ | 1 Piece |
| 16 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| 1) Impact strength: | 850J/m. About 200-350 times of common glass. |
| 2) Light weight: | About 1/2 times of glass of the same thickness. |
| 3) Light transmission: | 80%-92% for different thickness of clear color |
| 4) Specific gravity: | 1.2 g/cm3 |
| 5) Coefficient of thermal expansion: | 0.065 mm/m° C |
| 6) Temperature range: | -40° Cto 120° C |
| 7) Heat conductivity: | 2.3-3.9 W/m2 º |
| 8) Tensile strength: | >=60N/mm2 |
| 9) Flexural strength: | 100N/mm2 |
| 10) Heat deflection temperature | 140 ° C |
| 11) Modulus of elasticity: | 2, 400mPa |
| 12) Tensile street at break: | >=65mPa |
| 13) Elongation at break: | >100% |
| 14) Specific heat: | 1.16J/kgk |
| 15) Soundproof index: | 4mm-27dB,10mm-33dB |
FEATURES
1) Good light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: 1/2 of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um one side or both sides anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K

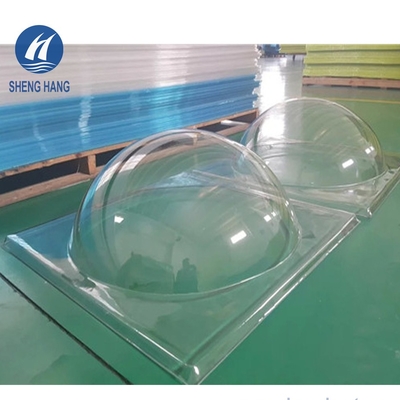

PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
The solid polycarbonate sheet has excellent dimensional stability, which is very suitable for secondary processing. The polycarbonate processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
Shenghang Plastic can provide professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are tested and approved.
