Product Details:
|
| Material: | PC | Color: | Clear And Tinted |
|---|---|---|---|
| Thickness: | 3.0 Mm | Width: | 2100 Mm |
| Length: | 5800 Mm | Standard Size: | 1220*2440mm, 2000*3000mm, 2100*5800mm |
| Fire Rating: | UL94 V2, UL94 V0 | UV Protection: | 50 Micron UV Resistant Coating |
| OEM Production: | Available | Brand Of Raw Material: | Covestro(Bayer), , |
| Typical Applications: | Roofing, Partition, Decoration, Lighting | HS Code: | 3920610000 |
| High Light: | polycarbonate embossed sheets 2100*5800mm,RoHS textured polycarbonate sheets,polycarbonate diamond sheet SGS |
||

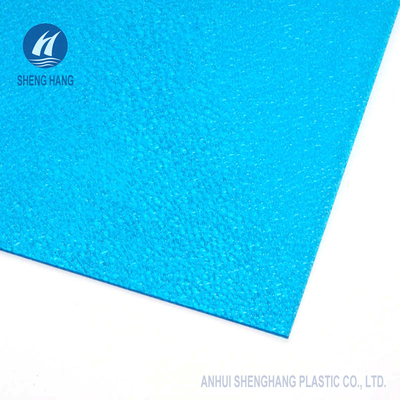

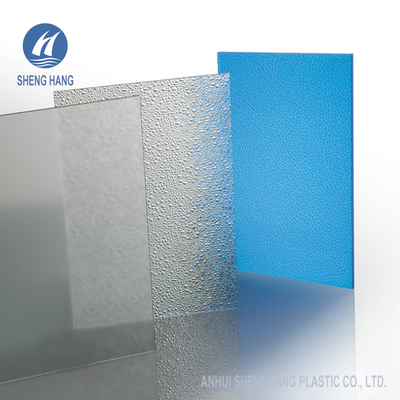

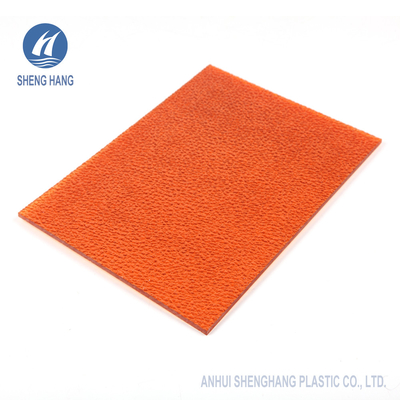

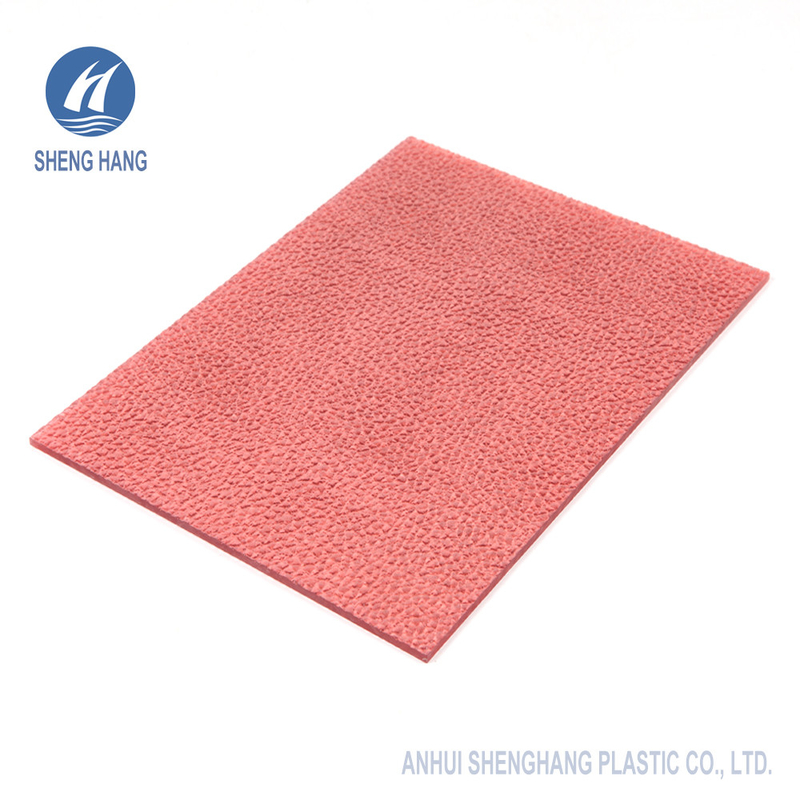

UV Protected Plastic Textured Sheet Embossed Polycarbonate Panel
DESCRIPTION
Shenghang Plastic embossed polycarbonate sheet is a branch of solid polycarbonate sheets and it is a one-sided solid sheet with the grain. Shenghang Plastic embossed polycarbonate sheets have great surface textures available in different colors. It is widely used for roofing, lighting enclosure, window, doors, partitions, and more. The embossed polycarbonate sheets are ideal for different production like kitchen products, furniture, and more.
PRODUCT ADVANTAGES
* High impact strength
* Weather resistance
* Lightweight
* Good flame retardancy
* Good thermal insulation
* Waterproof
* Fine plasticity
* Good processability
* Unique textured surface
* Privacy protection
SPECIFICATIONS
| 01 | Product Name | Embossed Polycarbonate Sheet |
| 02 | Thickness | 1.5mm ~ 10mm |
| 03 | Width | 1000mm, 1220mm, 2000mm, customized(Max.2100mm) |
| 04 | Length | 2440mm, 3000mm, customized |
| 05 | Standard Size | 1220*2440mm, 2000*3000mm, 2100*5800mm |
| 06 | Color | Transparent, bronze, blue, green, white, gray, black, yellow, orange, red, customized |
| 07 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 08 | Surface Texture | Lichee Pattern |
| 09 | Warranty | 10 years |
| 10 | Design Style | Modern |
| 11 | Fire Resistance | UL94 V-2, UL94 V-0 |
| 12 | UV Protection | 50 micron |
| 13 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 14 | Technology | Co-extrusion |
| 15 | Delivery Time | 7-10 days after receipt of deposit |
| 16 | Sample | For free (Please contact us for samples) |
| 17 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
| 18 | Applications | Decoration, Advertising light box, Roof, Door, Windows, Screens, Skylight, Partition, Daylighting panel |
TECHNICAL DATA
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: 1/2 of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um one side or both sides anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Fine plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing, etc.
PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
Polycarbonate sheet has excellent dimensional stability, which is very suitable for secondary processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
We provide professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are checked and qualified.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Unusual decorations, corridors and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern buildings;
3) Advertising light box, telephone booths, street name plates and sign boards;
4) Lighting materials, walls, roofs, doors and windows, screens, skylight;
5) Sound insulation shields(acoustic barrier) on express ways and city overhead highways;
6) Ceiling material for awnings, canopy, carport, balcony.
