Product Details:
|
| Material: | PC | Surface Texture: | Diamond |
|---|---|---|---|
| Color: | Orange, Bronze, Blue, Green | Thickness: | 3.0 Mm |
| Width: | 2.1 Meters | Length: | 5.8 Meters |
| Standard Size: | 1000*2000mm, 2000*3000mm, 2100*5800mm | Fire Rating: | UL94 V2, UL94 V0 |
| UV Protection: | Can Block 99.9% UV Rays | OEM Production: | Available |
| Typical Applications: | Roofing, Partition, Decoration, Window, Door | HS Code: | 39206100 |
| High Light: | Tinted polycarbonate embossed sheet,polycarbonate sheet embossed Lightweight,pc embossed sheet 5.8m |
||

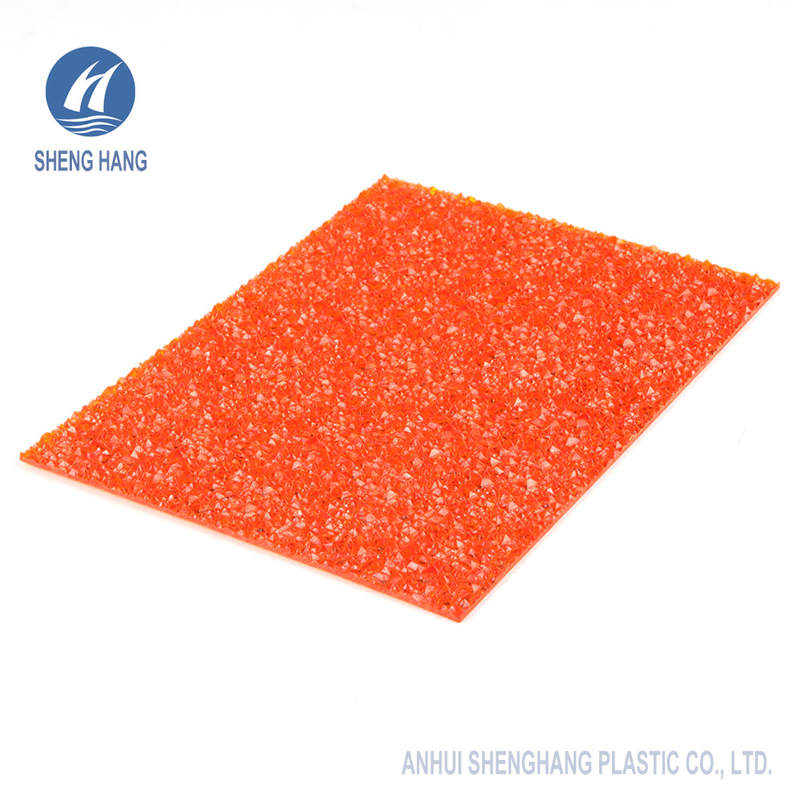

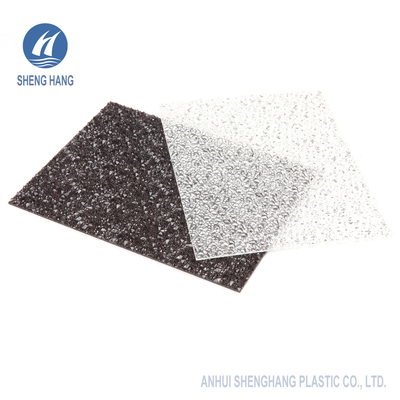

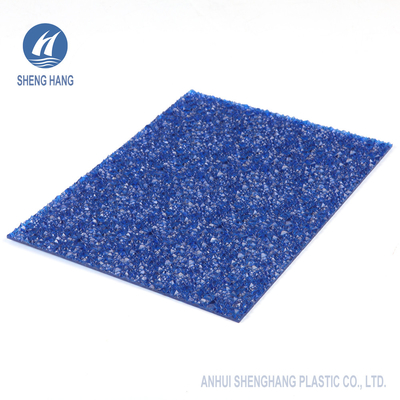

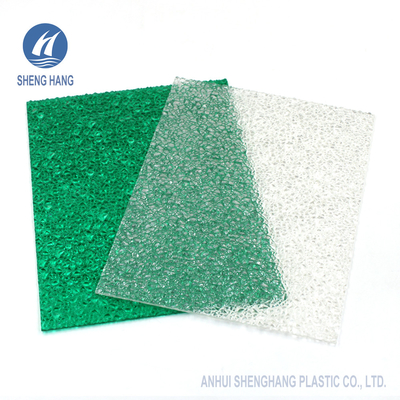

Plastic Diamond Textured Surface Tinted Polycarbonate Embossed Sheet
DESCRIPTION
Shenghang Plastic embossed diamond polycarbonate sheet has several features with high impact resistance, light weight, can be easy cold bend processed and hot molding. So, it can be widely used in construction and decorations. Shenghang Plastic wide range of high quality polycarbonate embossed rolls and sheets can be used in various ways and for various applications such as for veranda glazing, safety or vandalized areas indoor outdoor signs or instrument panels. They are exceptional impact strength and virtually unbreakable.
PRODUCT ADVANTAGES
* High impact strength
* Weather resistance
* Lightweight
* Good flame retardancy
* Good thermal insulation
* Waterproof
* Sparkling and fascinating
* Good processability
* Unique textured surface
* Privacy protection
SPECIFICATIONS
| 01 | Product Name | Embossed Polycarbonate Sheet |
| 02 | Thickness | 2mm ~ 10mm |
| 03 | Width | 1000mm, 2000mm, 2100mm, customized(Max.2100mm) |
| 04 | Length | 2000mm, 3000mm, 5800mm, customized |
| 05 | Standard Size | 1000*2000mm, 2000*3000mm, 2100*5800mm |
| 06 | Color | Transparent, bronze, blue, green, white, gray, black, yellow, orange, red, customized |
| 07 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 08 | Surface Texture | Diamond Pattern |
| 09 | Warranty | 10 years |
| 10 | Design Style | Modern |
| 11 | Fire Resistance | UL94 V-2, UL94 V-0 |
| 12 | UV Protection | 50 micron |
| 13 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 14 | Technology | Co-extrusion |
| 15 | Delivery Time | 7-10 days after receipt of deposit |
| 16 | Sample | For free (Please contact us for samples) |
| 17 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
| 18 | Applications | Decoration, Advertising light box, Roof, Door, Windows, Screens, Skylight, Partition, Daylighting panel |
TECHNICAL DATA
| FEATURES | UNIT | DATA |
| Specific Gravity | g/cm2 | 1.2 |
| Light Transmission | % | 88 |
| Impact Strength | J/m | 850 |
| The Bending Strength | N/mm2 | 100 |
| Tensile Strength | N/mm2 | ≥60 |
| Modulus of Elasticity | mpa | 2400 |
| TensileStressat Break | mpa | ≥65 |
| Elongation at Break | % | >100 |
| Specific Heat | KJ/KG · k | 1.17 |
| Heat Conductivity | W/m2· K | 0.2 |
| HeatDeflection Temperature | °C | 140 |
| Coefficientof Thermal Expansion | mm/m2 ·°C | 0.067 |
| Range of Temperature | °C | -40~~ +120 |
| Effect of Soundproof | 10mm solid sheet | 33 db attenuation |
FEATURES
1) Light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: 1/2 of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um one side or both sides anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Fine plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing, etc.
PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
Polycarbonate sheet has excellent dimensional stability, which is very suitable for secondary processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
We provide professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are checked and qualified.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Unusual decorations, corridors and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern buildings;
3) Advertising light box, telephone booths, street name plates and sign boards;
4) Lighting materials, walls, roofs, doors and windows, screens, skylight;
5) Sound insulation shields(acoustic barrier) on express ways and city overhead highways;
6) Ceiling material for awnings, canopy, carport, balcony.
