Product Details:
|
| Raw Material: | Polycarbonate | Color: | Transparent |
|---|---|---|---|
| Thickness: | 1.0 Mm | Width: | 1.2 Meter |
| Length: | 2~6 Meter | Technology: | Co-extrusion |
| UV Protection: | 50um UV Resistant Coating | Brand Of Raw Material: | Covestro(Bayer), , |
| Quality Warranty: | Limited 10-year Warranty | Typical Applications: | Roofing, Canopy, Awning, Skylight, Greenhouse, Carport |
| HS Code: | 39206100 | Customized Shape: | Acceptable |
| High Light: | 1.2m Clear Corrugated Polycarbonate Sheet,Polycarbonate Greenhouse Panel Bayer,UV Coated corrugated clear roofing sheets |
||

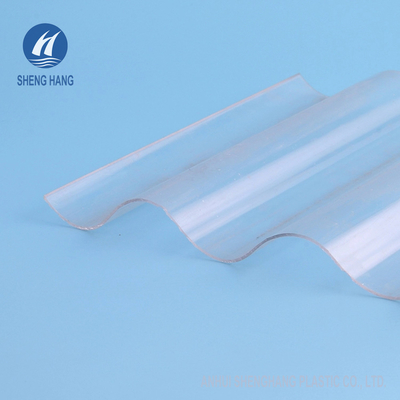

Clear Corrugated Polycarbonate Sheet Corrugated Polycarbonate Greenhouse Panel
DESCRIPTION
Shenghang Plastic corrugated polycarbonate sheet is a new energy-saving product, which has the characteristics of lightweight, high strength, and excellent transmittance. In addition, it has better stability, is not easy to yellowing, and has a high absorption capacity in the ultraviolet spectrum range.The polycarbonate is 20 times stronger than traditional fiberglass panels.
PRODUCT ADVANTAGES
● Unbreakable
● Weather resistance
● Waterproof
● Can be transparent or opaque
● Maximum condensation control
● Fire resistant
● Thermal insulation
● UV resistance
● Lifetime limited warranty
● Lightweight and easy to handle
SPECIFICATIONS
| 01 | Product Name | Corrugated Polycarbonate Sheet |
| 02 | Thickness | 0.8mm ~ 3.0mm |
| 03 | Width | 760mm, 840mm, 900mm, 930mm, 1000mm, customized |
| 04 | Length | 2000mm, 3000mm, 4000mm, 5000mm, 6000mm, customized |
| 05 | Color | Transparent, bronze, blue, green, white, gray, yellow, customized |
| 06 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 07 | Type | Corrugated |
| 08 | Warranty | 10 years |
| 09 | Design Style | Modern |
| 10 | Fire Resistance | UL94 V2, UL94 V0 |
| 11 | UV Protection | 50 micron |
| 12 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 13 | Technology | Co-extrusion |
| 14 | Delivery Time | 7-10 days after receipt of deposit |
| 15 | Sample | For free (Please contact us for samples) |
| 16 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| FEATURES | UNIT | DATA |
| Specific Gravity | g/cm2 | 1.2 |
| Light Transmission | % | 88 |
| Impact Strength | J/m | 850 |
| The Bending Strength | N/mm2 | 100 |
| Tensile Strength | N/mm2 | ≥60 |
| Modulus of Elasticity | mpa | 2400 |
| TensileStressat Break | mpa | ≥65 |
| Elongation at Break | % | >100 |
| Specific Heat | KJ/KG · k | 1.17 |
| Heat Conductivity | W/m2· K | 0.2 |
| HeatDeflection Temperature | °C | 140 |
| Coefficientof Thermal Expansion | mm/m2 ·°C | 0.067 |
| Range of Temperature | °C | -40~~ +120 |
| Effect of Soundproof | 10mm solid sheet | 33 db attenuation |
FEATURES
1) Good light transmission: reaches 12%~95% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: only half weight of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um anti-UV coating
7) Heat insulation: heat Conductivity 0.21 W/m· K
8) Good stability, Anti-corrosion
PRODUCT SHOW
PRODUCT CATEGORIES
FACTORY TOUR
TYPICAL APPLICATIONS

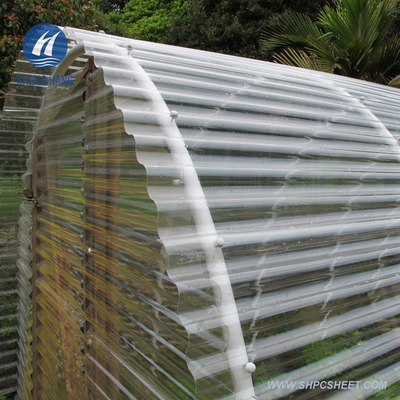

1) Roofing materials for the greenhouse, corridors, pavilions, recreational and rest places;
2) Roofing and wall lighting of factories, warehouses, and families;
3) Daylighting band of various building roofs;
4) Lighting materials, walls, roofs, doors and windows, screens, skylight;
5) Ceiling material for awning, canopy, carport, car shed, balcony.
