Product Details:
|
| Material: | Polycarbonate | Color: | Yellow, Bronze |
|---|---|---|---|
| Thickness: | 1.5mm | Width: | 1000mm |
| Length: | Customized | UV Protection: | 50 Micron UV Resistance |
| Fire Rating: | UL94-V2, UL94-V0 | Brand Of Raw Material: | Covestro, , |
| Main Advantages: | Lightweight, High Impact, High Transparency | Service Life: | Above 10 Years |
| Transport Package: | Kraft Paper | HS Code: | 3920610000 |
| High Light: | 50 Micron Corrugated Polycarbonate Sheet,Lightweight polycarbonate roof panels,plastic roof panel UL94 V0 |
||

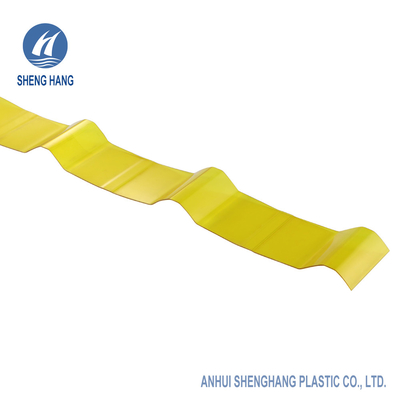

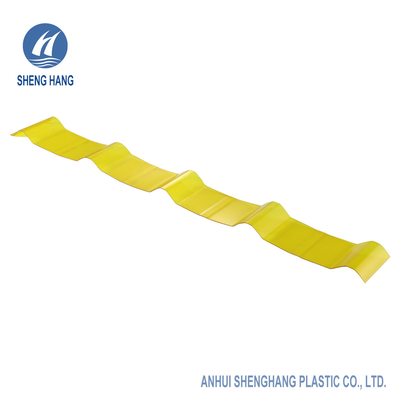

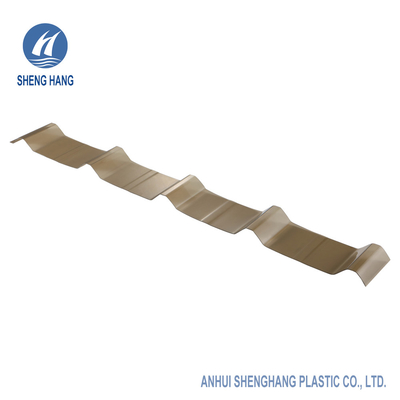

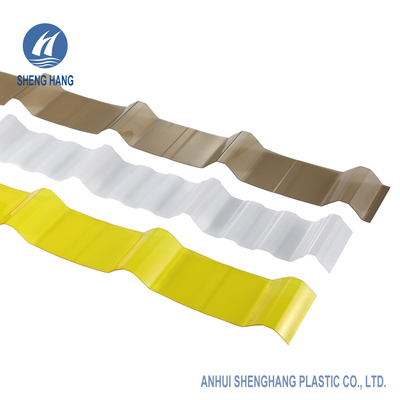

100% Virgin Material Plastic Roof Panel Corrugated Polycarbonate Sheet
DESCRIPTION
Shenghang Plastic corrugated polycarbonate roofing panels are perfect for covering a patio, deck, or hobby greenhouse. The polycarbonate is 20 times stronger than traditional fiberglass panels. Polycarbonate is extremely impact resistant and with a co-extruded UV protective layer the panels will keep their beauty and clarity for many, many years to come.
PRODUCT ADVANTAGES
* High impact strength(Unbreakable)
* High transparency
* High light transmittance
* Strong weather resistance
* Waterproof
* Maximum condensation control
* Good flame retardancy
* Good thermal insulation
* UV resistance
* Fine plasticity
* Lightweight
* Easy to install
SPECIFICATIONS
*Thickness Range: 0.8mm~3.0mm (0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm)
*Width: 760mm, 840mm, 900mm, 930mm, 1000mm, Max.1200mm (Depending on different shapes)
*Length: 2000mm/3000mm/5800mm/6000mm/customized
*Structure selections: More than 30 structures and shapes for selecting.
*Colors: Transparent(clear), brown, lake blue, blue, green, opal white, grey, black, yellow, orange, red, pink, customized
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Good light transmission: reaches 12%~95% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: only half weight of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um one side or both sides anti-UV coating
7) Heat insulation: heat Conductivity 0.21 W/m· K
8) Good stability, Anti-corrosion
PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
Polycarbonate sheet has excellent dimensional stability, which is very suitable for secondary processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
We provide professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are tested and approved.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Roofing materials for the greenhouse, corridors, pavilions, recreational and rest places;
2) Roofing and wall lighting of factories, warehouses, and families;
3) Daylighting band of various building roofs;
4) Lighting materials, walls, roofs, doors and windows, screens, skylight;
5) Ceiling material for awning, canopy, carport, car shed, balcony.
