Product Details:
|
| Material: | Polycarbonate(PC) | Thickness: | 8mm~12mm |
|---|---|---|---|
| Width: | 2100mm | Length: | 5800mm, 6000mm |
| Standard Size: | 2100*6000mm | Color: | Clear, Bronze, White, Blue, Lake Blue, Green, Grey, Red, Yellow, Orange, Customized |
| Structure: | 5-wall Rectangular Hollow Structure | UV Protection: | 50 Micron Anti-UV Coating |
| Service Life: | Above 10 Years | Transport Package: | PE Protective Film |
| Brand Of Raw Material: | Covestro, | HS Code: | 3920610000 |
| High Light: | Multi Wall Polycarbonate Sheet 5.8m,clear multiwall polycarbonate sheet 6m,UV Resistance hollow polycarbonate sheet |
||
UV Resistance Multiwall PC Hollow Sheet Five Walls Polycarbonate Sheet
DESCRIPTION
SHENGHANG PLASTIC Five Walls Polycarbonate Hollow Sheet is a new generation of multi-wall energy-saving products specially developed for agricultural greenhouses, ecological restaurants and other buildings which require higher thermal insulation performance and lightweight lighting structure. The built-in three-layer ultra-thin transverse rib structure keeps the sheet excellent high transmittance. The multi-wall structure gives the sheet excellent load-carrying capacity and excellent thermal insulation performance. Its K value is 30% lower than that of the triple-wall sheet with the same thickness. Italian UNION die cladding co-extrusion technology makes the upper surface of sheet completely covered by UV material, providing ten years of anti-aging quality assurance.
PRODUCT ADVANTAGES
● Light weight
● High impact strength
● High light transmittance
● UV resistance
● Weather resistance
● Thermal insulation
● Excellent load capacity
● Environmental friendly
SPECIFICATIONS
1) Thickness: 8mm~12mm(8mm, 10mm, 12mm)
2) Standard size: 2100*6000mm, 2100*5800mm
3) Colors: Transparent(clear), Bronze, Green, Blue, Lake blue, White, Gry, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twin-wall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.
| Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
| (mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
| 5-wall | HS5R | 8 | 1.8 | 2100 | 50 | 65 | 2.53 | 1400 | Clear, White, Bronze, Blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black, etc. |
| 10 | 2.0 | 2100 | 50 | 64 | 2.30 | 1750 | |||
| 12 | 2.2 | 2100 | 50 | 63 | 2.26 | 2100 | |||
| 5-wall X | HS5R-X | 16 | 2.5 | 2100 | 50 | 61 | 1.89 | 2800 | |
| 18 | 2.8 | 2100 | 50 | 60 | 1.78 | 3150 | |||
| 20 | 3.2 | 2100 | 50 | 59 | 1.69 | 3500 | |||
| 25 | 3.5 | 2100 | 50 | 57 | 1.50 | 4375 | |||
| 30 | 4.0 | 2100 | 50 | 55 | 1.35 | 5250 | |||
| 6-wall Diamond | HS6D | 12 | 2.2 | 2100 | 50 | 61 | 2.17 | 2100 | |
| 14 | 2.5 | 2100 | 50 | 60 | 1.90 | 2450 | |||
| 16 | 2.9 | 2100 | 50 | 59 | 1.84 | 2800 | |||
| 18 | 3.0 | 2100 | 50 | 58 | 1.72 | 3150 | |||
| 7-wall | HS7R | 14 | 2.4 | 2100 | 50 | 58 | 1.80 | 2450 | |
| 16 | 2.6 | 2100 | 50 | 56 | 1.66 | 2800 | |||
| 18 | 2.8 | 2100 | 50 | 54 | 1.52 | 3150 | |||
| 20 | 3.0 | 2100 | 50 | 52 | 1.38 | 3500 | |||
| 22 | 3.2 | 2100 | 50 | 50 | 1.24 | 3850 | |||
| 8-wall Diamond |
HS8D | 25 | 3.4 | 2100 | 50 | 48 | 1.40 | 4375 | |
| 32 | 3.6 | 2100 | 50 | 46 | 1.28 | 5600 | |||
| 35 | 4.0 | 2100 | 50 | 44 | 1.19 | 6125 | |||
| 40 | 4.5 | 2100 | 50 | 42 | 1.10 | 7000 |

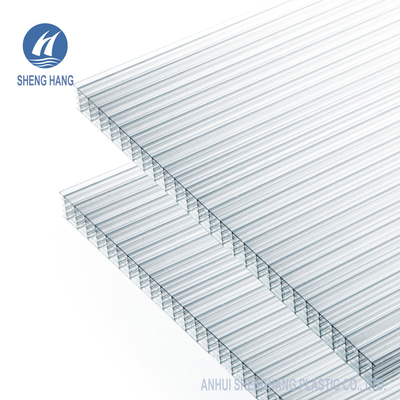

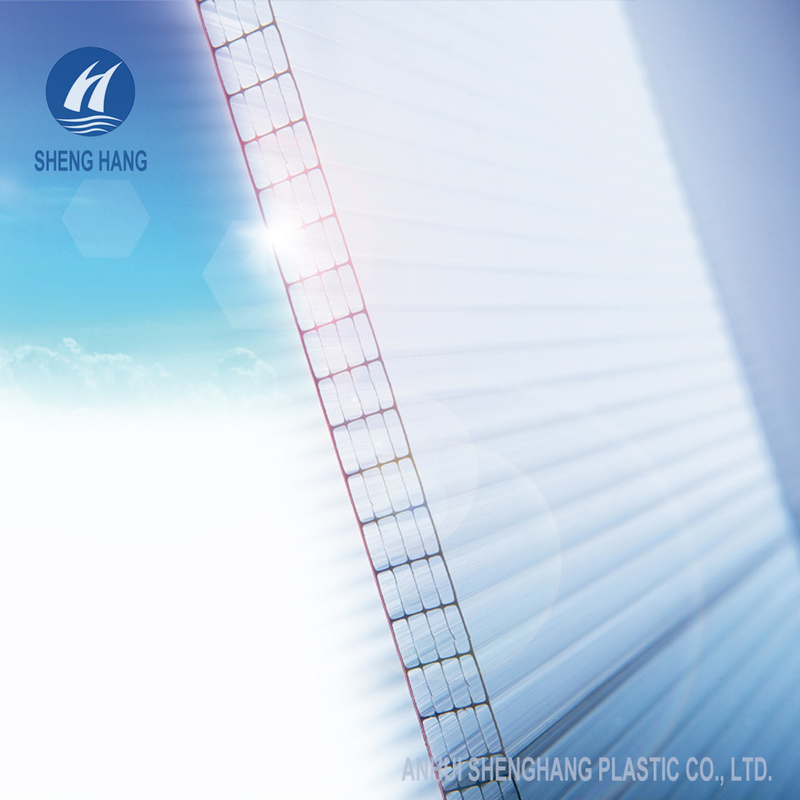

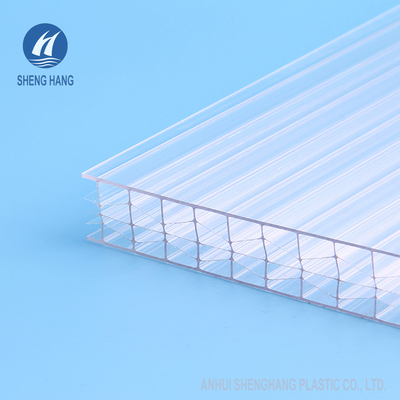

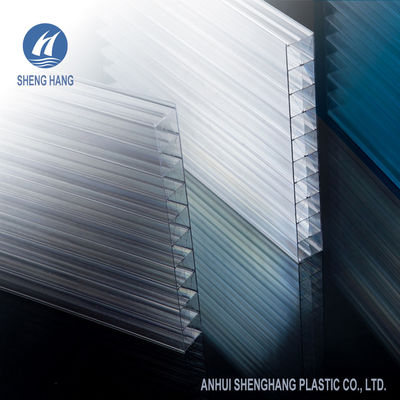

PRODUCT SHOW
PRODUCT CATEGORIES
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.
2. Lighting system for passage, walkway, the entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Bus stop, advertising lamp box, canopy for ATM.
6. Lighting decoration for the workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINER
| Thickness(mm) | Specification(mm) | QTY. 20GP | Specification(mm) | QTY. 40HQ |
| (PCS) | (PCS) | |||
| 8 | 2100*5800 | 290 | 2100*6000 | 670 |
| 10 | 2100*5800 | 235 | 2100*6000 | 535 |
| 12 | 2100*5800 | 195 | 2100*6000 | 440 |
