Product Details:
|
| Material: | Polycarbonate | Thickness: | 8mm |
|---|---|---|---|
| Standard Size: | 2100*6000 MM | Color: | Clear |
| UV Protection: | UV Resistance | Warranty: | 10 Years |
| Brand Of Raw Material: | , , Lihuayi | MOQ: | Wholesale |
| High Light: | Double Wall Polycarbonate Hollow Sheet,Hollow Polycarbonate Greenhouse Panels,Polycarbonate Greenhouse Panels Double Wall |
||

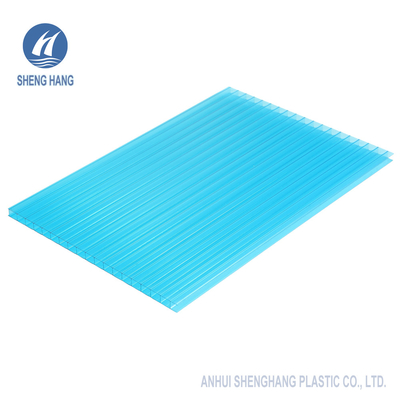

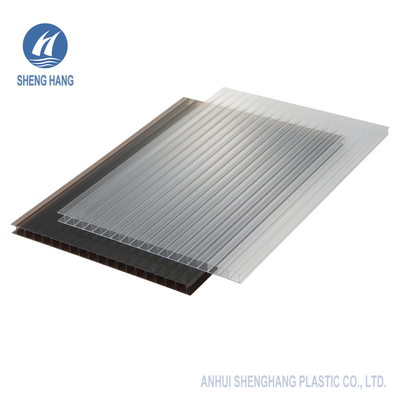

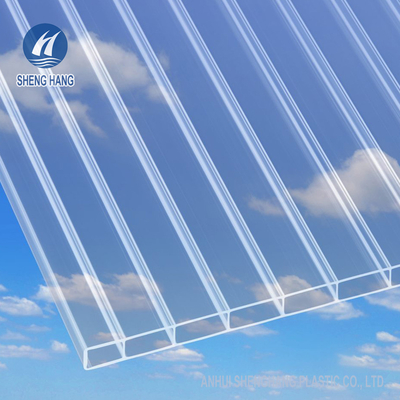

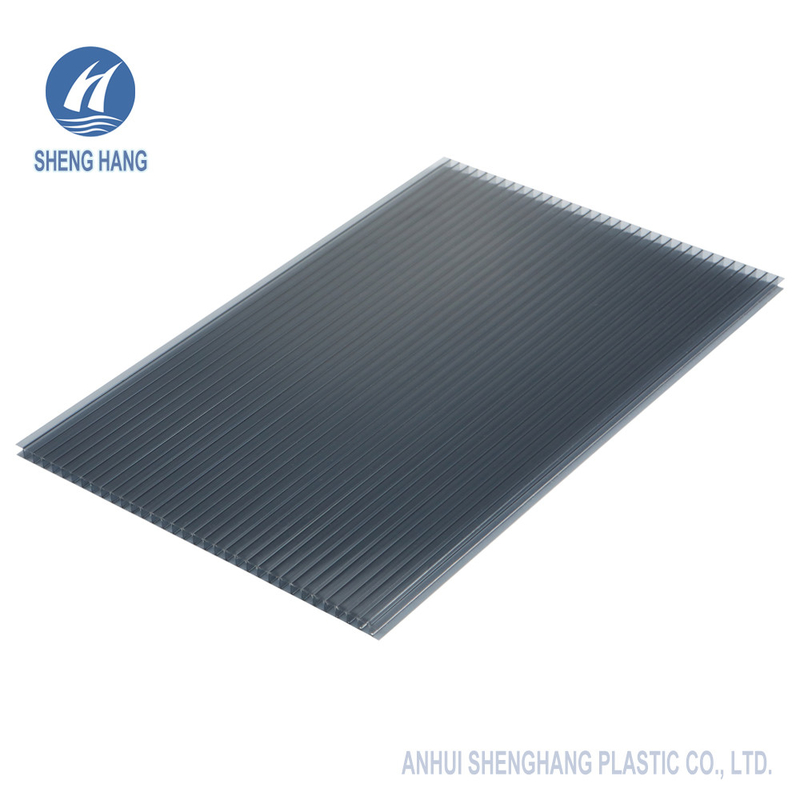

Double Wall Polycarbonate Greenhouse Panels Polycarbonate Hollow Sheet
DESCRIPTION
Polycarbonate twinwall sheet is incredibly versatile and easy to use. Polycarbonate hollow sheeting has the characteristics of light weight, high strength and good thermal insulation properties.Twin-wall polycarbonate hollow sheeting has outstanding light transmittance, easy to install and process, it is widely used in ordinary architectural lighting needs, such as building roofs, greenhouses, parking sheds and so on.The advanced UV co-extrusion technology ensures the twin-wall sheets strong UV resistance, which can meet the 10 years quality assurance under the outdoor conditions.
Saving energy
Twin-wall construction optimizes thermal insulation. In hot summer or cold winter, the ambient temperature below polycarbonate sheets will not intensively change and keep a relative stable state.
UV protection
Coextruded UV layer can absorb 98% UV rays, reducing UV damage to people, plants, organics and polymers. The UV protective layer is 50 μm in thickness, which veritably blocks UV rays out and create a safe environment.
PRODUCT ADVANTAGES
*Lightweight
*High impact strength
*High light transmittance
*UV resistance
*Weather resistance
*Good thermal insulation
*Easy to install and process
SPECIFICATIONS
1) Thickness: 4mm, 5mm, 6mm, 8mm, 10mm
2) Standard size: 2100*6000mm, 2100*5800mm
3) Colors: Clear, Bronze, Green, Blue, Lake blue, White, Gry, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twin-wall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.
| Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
| (mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
| Twin-wall | HS2R | 4 | 1.0 | 2100 | 50 | 82 | 4.00 | 700 | Clear, White, Bronze, Blue, Lake blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black… |
| 6 | 1.3 | 2100 | 50 | 81 | 3.60 | 1050 | |||
| 8 | 1.5 | 2100 | 50 | 80 | 3.30 | 1400 | |||
| 10 | 1.7 | 2100 | 50 | 79 | 3.00 | 1750 | |||
| 12 | 1.9 | 2100 | 50 | 79 | 2.80 | 2100 | |||
| 3-wall | HS3R | 6 | 1.4 | 2100 | 50 | 76 | 3.22 | 1050 | |
| 8 | 1.6 | 2100 | 50 | 72 | 2.92 | 1400 | |||
| 10 | 1.8 | 2100 | 50 | 68 | 2.70 | 1750 | |||
| 12 | 2.1 | 2100 | 50 | 66 | 2.60 | 2100 | |||
| 14 | 2.3 | 2100 | 50 | 65 | 2.40 | 2450 | |||
| 16 | 2.5 | 2100 | 50 | 63 | 2.27 | 2800 | |||
| 3-wall X | HS3R-X | 12 | 2.3 | 2100 | 50 | 65 | 2.55 | 2100 | |
| 14 | 2.5 | 2100 | 50 | 64 | 2.36 | 2450 | |||
| 16 | 2.7 | 2100 | 50 | 63 | 2.20 | 2800 | |||
| 18 | 2.9 | 2100 | 50 | 62 | 2.12 | 3150 | |||
| 4-wall | HS4R | 8 | 1.8 | 2100 | 50 | 68 | 2.56 | 1400 | |
| 10 | 1.9 | 2100 | 50 | 67 | 2.39 | 1750 | |||
| 12 | 2.0 | 2100 | 50 | 65 | 2.30 | 2100 | |||
| 14 | 2.2 | 2100 | 50 | 64 | 2.10 | 2450 | |||
| 16 | 2.4 | 2100 | 50 | 63 | 2.00 | 2800 | |||
| 18 | 2.6 | 2100 | 50 | 62 | 1.88 | 3150 | |||
| Honeycomb | HS4H | 6 | 1.5 | 2100 | 50 | 59 | 2.83 | 1050 | |
| 8 | 1.8 | 2100 | 50 | 58 | 2.48 | 1400 | |||
| 10 | 2.0 | 2100 | 50 | 57 | 2.16 | 1750 | |||
| 12 | 2.2 | 2100 | 50 | 56 | 1.98 | 2100 | |||
| 5-wall | HS5R | 8 | 1.8 | 2100 | 50 | 65 | 2.53 | 1400 | |
| 10 | 2.0 | 2100 | 50 | 64 | 2.30 | 1750 | |||
| 12 | 2.2 | 2100 | 50 | 63 | 2.26 | 2100 | |||
| 5-wall X | HS5R-X | 16 | 2.5 | 2100 | 50 | 61 | 1.89 | 2800 | |
| 18 | 2.8 | 2100 | 50 | 60 | 1.78 | 3150 | |||
| 20 | 3.2 | 2100 | 50 | 59 | 1.69 | 3500 | |||
| 25 | 3.5 | 2100 | 50 | 57 | 1.50 | 4375 | |||
| 30 | 4.0 | 2100 | 50 | 55 | 1.35 | 5250 | |||
| 6-wall Diamond | HS6D | 12 | 2.2 | 2100 | 50 | 61 | 2.17 | 2100 | |
| 14 | 2.5 | 2100 | 50 | 60 | 1.90 | 2450 | |||
| 16 | 2.9 | 2100 | 50 | 59 | 1.84 | 2800 | |||
| 18 | 3.0 | 2100 | 50 | 58 | 1.72 | 3150 | |||
| 7-wall | HS7R | 14 | 2.4 | 2100 | 50 | 58 | 1.80 | 2450 | |
| 16 | 2.6 | 2100 | 50 | 56 | 1.66 | 2800 | |||
| 18 | 2.8 | 2100 | 50 | 54 | 1.52 | 3150 | |||
| 20 | 3.0 | 2100 | 50 | 52 | 1.38 | 3500 | |||
| 22 | 3.2 | 2100 | 50 | 50 | 1.24 | 3850 | |||
| 8-wall Diamond |
HS8D | 25 | 3.4 | 2100 | 50 | 48 | 1.40 | 4375 | |
| 32 | 3.6 | 2100 | 50 | 46 | 1.28 | 5600 | |||
| 35 | 4.0 | 2100 | 50 | 44 | 1.19 | 6125 | |||
| 40 | 4.5 | 2100 | 50 | 42 | 1.10 | 7000 |
PRODUCT SHOW
COLOR SELECT
PRODUCT CATEGORY
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.
2. Lighting system for passage, walkway, the entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Bus stop, advertising lamp box, canopy for ATM.
6. Lighting decoration for the workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINER
| Thickness(mm) | Specification(mm) | Quantity for 20GP | Specification(mm) | Quantity for 40HQ |
| (PCS) | (PCS) | |||
| 4 | 2100*5800 | 550 | 2100*6000 | 1300 |
| 6 | 2100*5800 | 380 | 2100*6000 | 880 |
| 8 | 2100*5800 | 290 | 2100*6000 | 670 |
| 10 | 2100*5800 | 235 | 2100*6000 | 535 |
