Product Details:
|
| Material: | Polycarbonate | Thickness: | 6mm |
|---|---|---|---|
| Width: | 1220mm, 2100mm | Length: | 6000mm, 11800mm |
| Standard Size: | 2100*6000mm | Color: | Clear, Colored |
| UV Protection: | 50 Micron | Warranty: | Ten Years |
| Brand Of Raw Material: | Covestro, , | HS Code: | 39206100 |
| High Light: | 2100x6000mm PC Hollow Sheet,Twinwall PC Hollow Sheet,Polycarbonate Hollow Sheet 6mm |
||
2100*6000mm China Factory Price Polycarbonate Twinwall Panel PC Hollow Sheet
DESCRIPTION
As the name suggests, polycarbonate twinwall is basically a sheet of polycarbonate plastic material that is made using a twinwall construction method. To fully understand what this means, let's dive into the polycarbonate part first. Polycarbonate is known for being incredibly strong and impact resistant. It is a generally clear sheet of synthetic material that is often used in place of glass.
Twinwall is a style of plastic sheet. It basically consists of two layers of material that run parallel to one another, with small pieces of material connecting the two sides, leaving rows of empty space in between. So when this type of sheet is constructed using polycarbonate plastic, you get polycarbonate twinwall.
PRODUCT ADVANTAGES
*Lightweight
*High impact strength
*High light transmittance
*UV resistance
*Weather resistance
*Good thermal insulation
*Easy to install and process
SPECIFICATIONS
1) Thickness: 4mm~12mm(4mm, 5mm, 6mm, 8mm, 10mm)
2) Standard size: 2100*6000mm, 2100*5800mm
3) Colors: Transparent(clear), Bronze, Green, Blue, Lake blue, White, Gry, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twin-wall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.
| Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
| (mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
| Twin-wall | HS2R | 4 | 1.0 | 2100 | 50 | 82 | 4.00 | 700 | Clear, White, Bronze, Blue, Lake blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black… |
| 6 | 1.3 | 2100 | 50 | 81 | 3.60 | 1050 | |||
| 8 | 1.5 | 2100 | 50 | 80 | 3.30 | 1400 | |||
| 10 | 1.7 | 2100 | 50 | 79 | 3.00 | 1750 | |||
| 12 | 1.9 | 2100 | 50 | 79 | 2.80 | 2100 | |||
| 3-wall | HS3R | 6 | 1.4 | 2100 | 50 | 76 | 3.22 | 1050 | |
| 8 | 1.6 | 2100 | 50 | 72 | 2.92 | 1400 | |||
| 10 | 1.8 | 2100 | 50 | 68 | 2.70 | 1750 | |||
| 12 | 2.1 | 2100 | 50 | 66 | 2.60 | 2100 | |||
| 14 | 2.3 | 2100 | 50 | 65 | 2.40 | 2450 | |||
| 16 | 2.5 | 2100 | 50 | 63 | 2.27 | 2800 | |||
| 3-wall X | HS3R-X | 12 | 2.3 | 2100 | 50 | 65 | 2.55 | 2100 | |
| 14 | 2.5 | 2100 | 50 | 64 | 2.36 | 2450 | |||
| 16 | 2.7 | 2100 | 50 | 63 | 2.20 | 2800 | |||
| 18 | 2.9 | 2100 | 50 | 62 | 2.12 | 3150 | |||
| 4-wall | HS4R | 8 | 1.8 | 2100 | 50 | 68 | 2.56 | 1400 | |
| 10 | 1.9 | 2100 | 50 | 67 | 2.39 | 1750 | |||
| 12 | 2.0 | 2100 | 50 | 65 | 2.30 | 2100 | |||
| 14 | 2.2 | 2100 | 50 | 64 | 2.10 | 2450 | |||
| 16 | 2.4 | 2100 | 50 | 63 | 2.00 | 2800 | |||
| 18 | 2.6 | 2100 | 50 | 62 | 1.88 | 3150 | |||
| Honeycomb | HS4H | 6 | 1.5 | 2100 | 50 | 59 | 2.83 | 1050 | |
| 8 | 1.8 | 2100 | 50 | 58 | 2.48 | 1400 | |||
| 10 | 2.0 | 2100 | 50 | 57 | 2.16 | 1750 | |||
| 12 | 2.2 | 2100 | 50 | 56 | 1.98 | 2100 | |||
| 5-wall | HS5R | 8 | 1.8 | 2100 | 50 | 65 | 2.53 | 1400 | |
| 10 | 2.0 | 2100 | 50 | 64 | 2.30 | 1750 | |||
| 12 | 2.2 | 2100 | 50 | 63 | 2.26 | 2100 | |||
| 5-wall X | HS5R-X | 16 | 2.5 | 2100 | 50 | 61 | 1.89 | 2800 | |
| 18 | 2.8 | 2100 | 50 | 60 | 1.78 | 3150 | |||
| 20 | 3.2 | 2100 | 50 | 59 | 1.69 | 3500 | |||
| 25 | 3.5 | 2100 | 50 | 57 | 1.50 | 4375 | |||
| 30 | 4.0 | 2100 | 50 | 55 | 1.35 | 5250 | |||
| 6-wall Diamond | HS6D | 12 | 2.2 | 2100 | 50 | 61 | 2.17 | 2100 | |
| 14 | 2.5 | 2100 | 50 | 60 | 1.90 | 2450 | |||
| 16 | 2.9 | 2100 | 50 | 59 | 1.84 | 2800 | |||
| 18 | 3.0 | 2100 | 50 | 58 | 1.72 | 3150 | |||
| 7-wall | HS7R | 14 | 2.4 | 2100 | 50 | 58 | 1.80 | 2450 | |
| 16 | 2.6 | 2100 | 50 | 56 | 1.66 | 2800 | |||
| 18 | 2.8 | 2100 | 50 | 54 | 1.52 | 3150 | |||
| 20 | 3.0 | 2100 | 50 | 52 | 1.38 | 3500 | |||
| 22 | 3.2 | 2100 | 50 | 50 | 1.24 | 3850 | |||
| 8-wall Diamond |
HS8D | 25 | 3.4 | 2100 | 50 | 48 | 1.40 | 4375 | |
| 32 | 3.6 | 2100 | 50 | 46 | 1.28 | 5600 | |||
| 35 | 4.0 | 2100 | 50 | 44 | 1.19 | 6125 | |||
| 40 | 4.5 | 2100 | 50 | 42 | 1.10 | 7000 |
PRODUCT SHOW

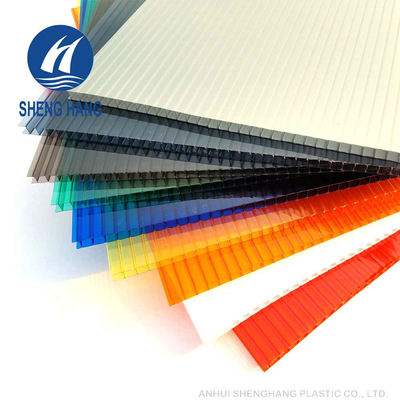

COLOR SELECT
PRODUCT CATEGORY
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.
2. Lighting system for passage, walkway, the entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Bus stop, advertising lamp box, canopy for ATM.
6. Lighting decoration for the workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINER
| Thickness(mm) | Specification(mm) | Quantity for 20GP | Specification(mm) | Quantity for 40HQ |
| (PCS) | (PCS) | |||
| 4 | 2100*5800 | 550 | 2100*6000 | 1300 |
| 6 | 2100*5800 | 380 | 2100*6000 | 880 |
| 8 | 2100*5800 | 290 | 2100*6000 | 670 |
| 10 | 2100*5800 | 235 | 2100*6000 | 535 |
