Product Details:
|
| Raw Material: | Polycarbonate Resin | Color: | Clear |
|---|---|---|---|
| Thickness: | 2mm, 3mm, 4mm, 5mm | Width: | 1220mm, 2000mm, Customized |
| Length: | 2440mm, 3000mm, Customized | Standard Size: | 1220*2440mm, 2000*3000mm |
| Fire Rating: | UL94 V-2, UL94 V-0 | UV Protection: | Double-sided UV Resistance |
| Quality Warranty: | Limited 10 Years | Transport Package: | PE Film, Kraft Paper, Wood Pallet |
| Brand Of Raw Material: | Covestro, , Lihuayi | HS Code: | 39206100 |
| OEM Production: | Acceptable | Processing Services: | Engraving, Cutting, Bending, Hot Forming, Printing, Etc. |
| High Light: | Unbreakable PC Solid Sheet,2mm PC Solid Sheet,UV Resistance Polycarbonate Solid Sheet |
||

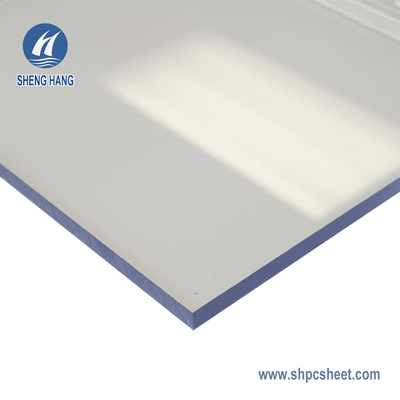

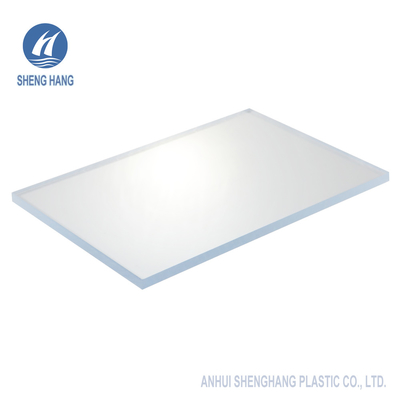

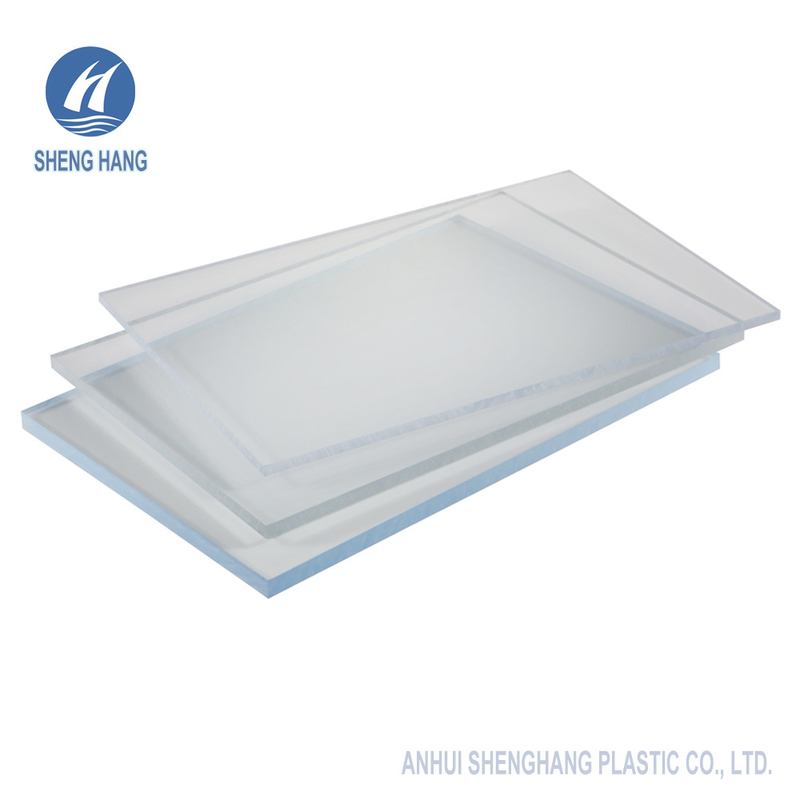

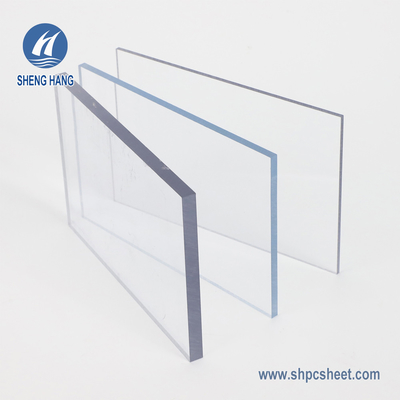

Unbreakable PC Solid Sheet UV Resistance Transparent Polycarbonate Panel
DESCRIPTION
Shenghang Plastic Polycarbonate Solid Sheet is made of virgin polycarbonate resin by the latest coextrusion technology. It has high transparency and high impact strength, but the weight is only half of the glass. Polycarbonate solid sheet is widely used for architectural lighting, indoor and outdoor decoration, industrial protection, etc.
In addition, Shenghang Plastic solid polycarbonate sheet is very suitable for processing. It can be processed into products with different shapes according to the needs of customers. Shenghang Plastic solid polycarbonate sheet has double-sided UV resistant coating to ensure outdoor service life of more than 10 years.
PRODUCT ADVANTAGES
* High impact resistance
* High transparent
* Light weight
* Weather resistant
* Fire resistant
* High sound insulation
* Long life span
* Excellent light transmission
* Excellent resistance to chemicals
* UV protection
* Temperature resistant
* Easy to install
* Superb thermal insulation
SPECIFICATIONS
| 01 | Product Name | Solid Polycarbonate Sheet |
| 02 | Thickness | 1.2mm ~ 30mm |
| 03 | Width | 1000mm, 1220mm, 2000mm, customized(Max.2100mm) |
| 04 | Length | 2440mm, 3000mm, 30 meters per roll, customized |
| 05 | Standard Size | 1000*2000mm, 1220*2440mm, 2000*3000mm |
| 06 | Color | Transparent, bronze, blue, green, white, gray, black, yellow, orange, red, customized |
| 07 | Certification | SGS, Rosh, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 08 | Surface Texture | Flat, Polished/Polished |
| 09 | Warranty | Limited 12 years |
| 10 | Design Style | Modern |
| 11 | Fire Resistance | UL94 V2, UL94 V0 |
| 12 | Scratch Resistant | HB, H, 2H |
| 13 | UV Protection | 50 micron |
| 14 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 15 | Technology | Co-extrusion |
| 16 | Delivery Time | 5-10 days after receipt of deposit |
| 17 | Sample | For free (Please contact us for samples) |
| 18 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: half weight that of glass upon the same thickness
6) Ultraviolet resistance: 50um~80um one side or double-sided anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Excellent plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing, etc.
PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
Shenghang Plastic Polycarbonate Solid Sheet has excellent dimensional stability, which is very suitable for deep processing. The processed products of PC solid sheets are widely used in industry, security, construction, new energy vehicles, and many other industries.
Shenghang Plastic can provide the professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, etc.
Welcome customers to provide drawings or samples, negotiate custom processing business. As for customized products, our minimum order quantity is one piece. You can cooperate with us for bulk order after sample test is passed.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Unusual decorations, corridors, and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings;
3) The transparent containers, front windshields of motorcycles, airplanes, trains, ships, vehicles, motorboats, submarines;
4) Advertising lightbox, telephone booths, street nameplates, and signboards;
5) Instrument and war industries - windscreens, shields;
6) Lighting materials, walls, roofs, windows, doors, screens, skylight, and other high-quality indoor decoration materials;
7) Sound insulation shields(acoustic barrier) on expressways and city overhead highways;
8) Agriculture greenhouses and sheds;
9) Ceiling material for awnings, canopy, carport, balcony;
10) Security products - shield, helmet, fences for bus and taxi drivers, protective cover and viewing window for industrial equipment;
