Product Details:
|
Color: | Clear | Outer Diameter: | 400mm |
---|---|---|---|
Wall Thickness: | 5mm | Length: | 3000mm,9.8ft |
Type: | Cast Acrylic Tube | Forming Way: | Casting |
Shipment Packing: | Standard Export Wooden Cases | Aftersale Service: | Online Technical Support |
Hs Code: | 39172900 | Port Of Loading: | Shanghai, China |
Highlight: | cast acrylic tubes 9.8ft,large clear acrylic cylinder OD400mm,PMMA Cylinder anti impact |
China Factory Cast Acrylic Tubes Casting Acrylic Plastic PMMA Cylinders
DESCRIPTION
Shenghang Plastic clear cast acrylic tubes are transparent and effective at resisting water. Lightweight, rigid features make acrylic an ideal replacement for glass, and as an added benefit, it is 17 times stronger. Molecularly speaking, cast acrylic tubes have a higher weight than extruded acrylic tubes, which gives it versatility, making it easier to shape, machine and cut. Shenghang Plastic clear cast acrylic tube is used for acrylic tube displays, lenses, acrylic protein skimmers, acrylic tube aquariums, and anywhere a clear, strong cast acrylic tube or glass replacement is needed.
PRODUCT ADVANTAGES
● Rigid
● Non-toxic
● UV stabilized
● High transparency
● Stable and durable
● High wear-resisting
● Chemical resistance
● Low water absorption
● High impact resistance
● High temperature resistant
● Stable color under outdoor exposure
● Perfect surface finish: Super smooth
● Large diameter: OD50mm~OD1800mm
SPECIFICATIONS
01 | Product Name | Cast Acrylic Tube |
02 | Outer Diameter | 50mm ~ 1800mm |
03 | Wall Thickness | 4mm ~ 100mm |
04 | Length | 2000mm, 3000mm, Cut to size |
05 | Color | Transparent, White, Customized |
06 | Certification | SGS, CNAS, ISO9001:2008 |
07 | Warranty | Limited Ten Years Guarantee |
08 | MOQ | 1 Piece (=2 meters) |

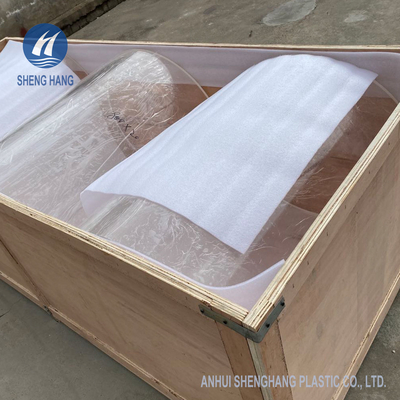

09 | Packing | Each cast acrylic tube will be coated with PE protective film, and then packed into the wooden case. |
10 | Technology | Casting |
11 | Factory or Not | We are a factory. Welcome to visit the factory online. |
12 | Aftersale Service | Online technical support, Onsite Training |
SIZE TABLE OF OUTER DIAMETER (MM)
Φ50 | Φ60 | Φ70 | Φ80 | Φ90 | Φ100 | Φ110 | Φ115 |
Φ120 | Φ125 | Φ130 | Φ133 | Φ140 | Φ150 | Φ160 | Φ165 |
Φ170 | Φ180 | Φ190 | Φ200 | Φ210 | Φ220 | Φ230 | Φ240 |
Φ250 | Φ260 | Φ270 | Φ280 | Φ290 | Φ300 | Φ305 | Φ320 |
Φ350 | Φ360 | Φ370 | Φ400 | Φ450 | Φ470 | Φ500 | Φ540 |
Φ560 | Φ600 | Φ650 | Φ700 | Φ800 | Φ900 | Φ1000 | Φ1100 |
Φ1200 | Φ1500 | Φ1700 | Φ1800 | / | / | / | / |
FEATURES
1. Excellent transparency: The light transmittance can reach more than 92%, the light intensity needed is small, low carbon, and energy saving.
2. Lightweight: The density of the acrylic tube is 1.18g/cm3.The weight of the same size material is only half of that of ordinary glass and 43% of that of aluminum.
3. Good climate endurance: Strong adaptability under natural environment, it retains perfect performance, even if long time in the sunlight, wind and rain shower.
4. Good acid and alkaline resistance: It will not turn yellow and hydrolyze due to the long-term sun and rain.
5. High impact resistance: The impact strength is 16 times that of ordinary glass, which is suitable for installation in the area where safety is particularly needed.
6. Excellent processability: Suitable for both mechanical processing and easy thermoforming.
7. Non-toxic: It's harmless for people, even if exposed for the long-term, and does not produce poisonous gas combustion when burning.
8. Pretty appearance: The surface is mirror-like, with exquisite technology, no folds, and seams. A variety of colors bring a strong visual impact.
9. Excellent comprehensive performance: The comprehensive performance provides designers multiple choices.

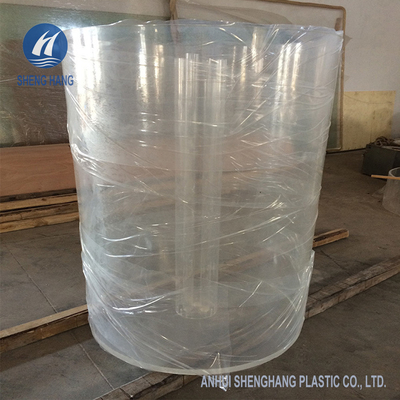

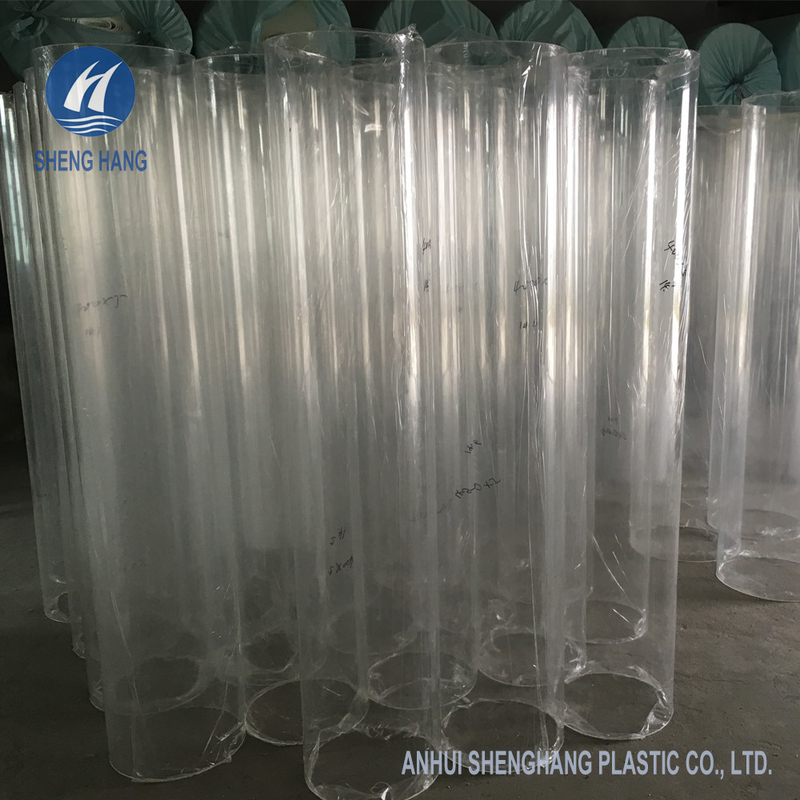

PRODUCT SHOW
PRODUCT CATEGORIES

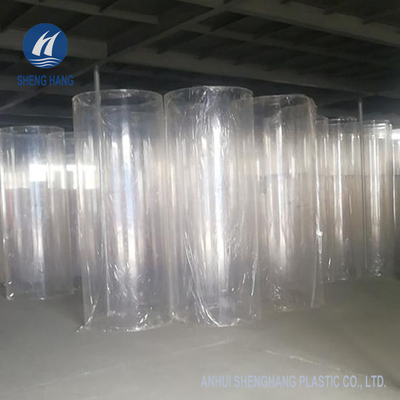

FACTORY TOUR
APPLICATIONS
Commerce, Light industry, Construction, Chemical industry, Scientific research, Military-related industry, Machinery, Advertisement, Decoration, Lighting, Aquarium, Transportation, Industry, Hotel, Furniture, Lightbox, Craft gift, Teaching instrument, Environmental protection equipment, Down equipment, Medical equipment, Cosmetics display, Water treatment equipment, etc.
