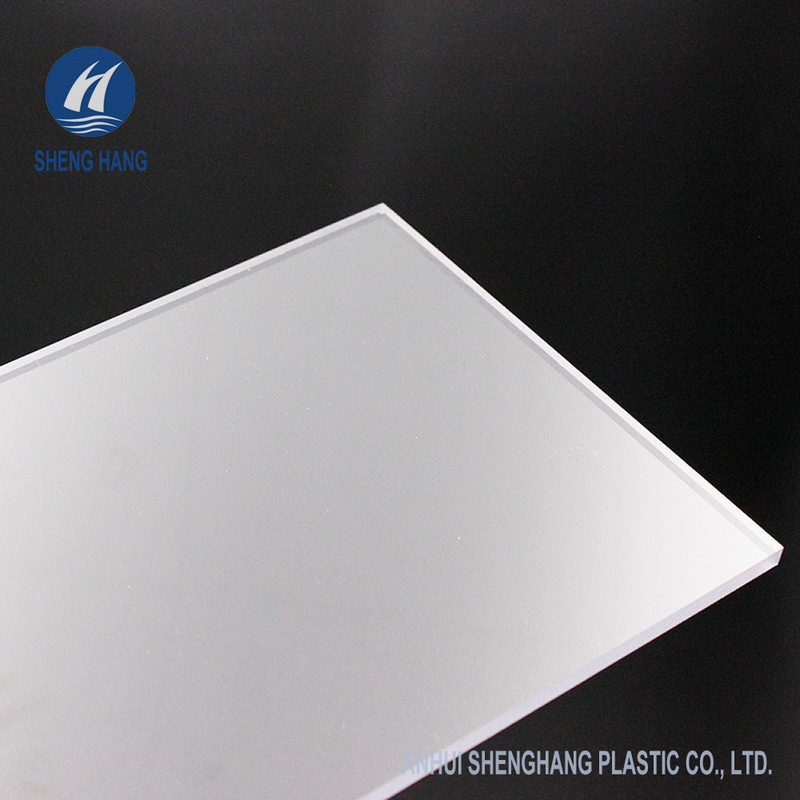

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS

Certification
China Anhui Shenghang Plastic Co., Ltd. certification
I'm Online Chat Now

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS
UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS

Large Image :  UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS

Product Details:
Place of Origin: China
Brand Name: SHENGHANG, OEM
Certification: SGS, CNAS, ISO9001:2008
Model Number: SH-SS-F02
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meters
Price: Negotiable
Packaging Details: PE Protective Film
Delivery Time: 7~10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8,500 Tons/Year

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS

Description
Material: Polycarbonate Color: White
Thickness: 1.8 Mm Width: 1220mm
Length: 2440mm Standard Size: 1220*2440mm
Fire Rating: UL94 V-2, UL94 V-0 UV Protection: 50 Micron UV Resistant Coating
Aftersale Service: Online Technical Support Transport Package: PE Protective Film, Kraft Paper, Wood Pallet
Brand Of Raw Material: Covestro, , HS Code: 39206100
High Light:

Fine Velvet Frosted Polycarbonate Sheet

,

matte polycarbonate sheet 1.8mm

,

SGS frosted polycarbonate board



UV Protected Fine Velvet Plastic Board Frosted Polycarbonate Sheet



DESCRIPTION

Shenghang Plastic frosted polycarbonate solid sheet is a new kind of green environmental protection material. Whether you are looking for added privacy in an office or home or want to add a decorative touch to a billboard or roof, matte polycarbonate is the sheeting you need. Shenghang Plastic Polycarbonate sheeting is lightweight and durable, making it a great choice for both outdoor and indoor applications. Because frosted plastic is not as translucent as traditional polycarbonate, you should take into consideration the degree of light transmittance, insulation, and UV-protection you will need.




PRODUCT ADVANTAGES

High impact strength

Unbreakable
Weather resistance

High light transmittance
● Lightweight
Fire resistant
Thermal insulation
Waterproof
Fine plasticity
● Suitable for processing
Unique textured surface

Privacy protection





SPECIFICATIONS

01 Product Name Embossed Polycarbonate Sheet
02 Thickness 2mm ~ 10mm
03 Width 1000mm, 2000mm, 2100mm, customized(Max.2100mm)
04 Length 2000mm, 3000mm, 5800mm, customized
05 Standard Size 1000*2000mm, 2000*3000mm, 2100*5800mm
06 Color Transparent, bronze, blue, green, white, gray, black, yellow, orange, red, customized
07 Certification SGS, CNAS, ISO9001:2008, Fire-resistant Test Report
08 Surface Texture Diamond Pattern
09 Warranty 10 years
10 Design Style Modern
11 Fire Resistance UL94 V-2, UL94 V-0
12 UV Protection 50 micron
13 Service Temperature -40~120 ºC (Degrees Celsius)
14 Technology Co-extrusion
15 Delivery Time 7-10 days after receipt of deposit
16 Sample For free (Please contact us for samples)
17 After-sale Service Online technical support, Onsite Installation, Onsite Training
18 Applications Decoration, Advertising light box, Roof, Door, Windows, Screens, Skylight, Partition, Daylighting panel




TECHNICAL DATA

FEATURES TEST METHOD TEST CONDITION UNIT DATA
Density ASTM D-792   g/cm3 1.2
Heat Deflection Temperature ASTM D-648 Load:1.82 MPa ºC 135
Short-term Service Temperature     ºC -50~+120
Long Service Temperature     ºC -50~+100
Linear Expansion Coefficient ASTM D-696   cm/cmºC 6.5x10-5
Thermal Conductivity ASTM C-177   W/m K 0.21
Yield Tensile Strength ASTM D-638 10mm/min Mpa 62
Tensile Strength at Break ASTM D-638 1mm/min Mpa 65
Yield Elongation ASTM D-638 10mm/min % 6
Elongation at Break ASTM D-638 10mm/min % >70
Elastic Tensile Modulus ASTM D-638 1mm/min Mpa 2300
Bending Strength ASTM D-790 1mm/min Mpa 93
Flexural Modulus ASTM D-790 1.3mm/min Mpa 1890
Shock Drop (ISO 6603/1 E50) 0.8mm sheet J 50
Rockwell Hardness ASTM D-785   R Scale 118
Light Transmittance ASTM D-1003 Transparent % 90%
Haze ASTM D-1003 Transparent % <0.5
Yellowing Index ASTM D-1003 Transparent YI <1





FEATURES

1) Light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: 1/2 of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um one side or both sides anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Fine plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing, etc.





PRODUCT SHOW

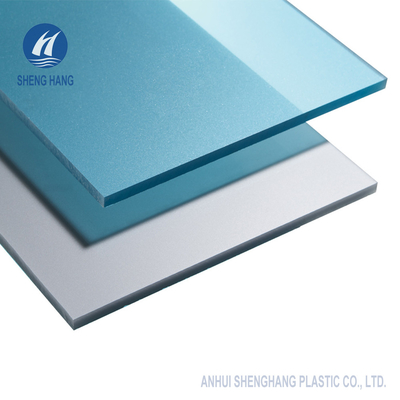

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS 0

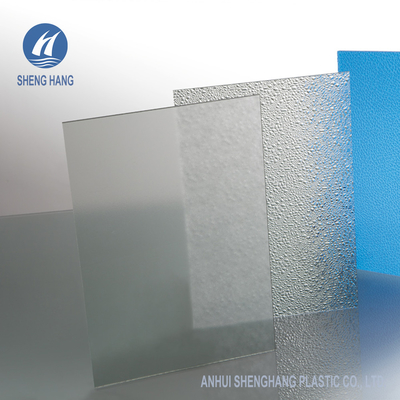

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS 1

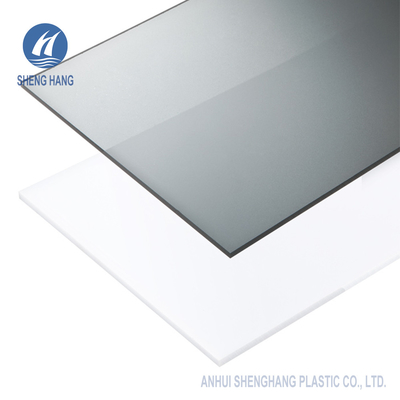

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS 2




PRODUCT CATEGORIES

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS 3





PROCESSING SERVICE

Polycarbonate sheet has excellent dimensional stability, which is very suitable for secondary processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.



Shenghang Plastic provides the professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.


Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are checked and qualified.



UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS 4





FACTORY TOUR

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS 5



UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS 6





APPLICATIONS
1) Unusual decorations, corridors and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern buildings;
3) Advertising light box, telephone booths, street name plates and sign boards;
4) Lighting materials, walls, roofs, doors and windows, screens, skylight;
5) Sound insulation shields(acoustic barrier) on express ways and city overhead highways;
6) Ceiling material for awnings, canopy, carport, balcony.



PACKING AND SHIPPING

UV Protected Fine Velvet Frosted Polycarbonate Sheet Matte Plastic Board 1.8mm SGS 7
