Product Details:
|
| Raw Material: | Polycarbonate | Color: | Clear |
|---|---|---|---|
| Thickness: | 1.5 Mm | Width: | 2.75 Ft |
| Length: | 12 Ft | Forming Way: | CoExtrusion |
| UV Protection: | 50 Micron UV Resistant Coating | Brand Of Raw Material: | Covestro, , |
| After-sale Service: | Online Technical Support | Typical Applications: | Roofing, Wall, Skylight, Greenhouse |
| HS Code: | 39206100 | Customized Shape: | Acceptable |
| Highlight: | 2.75x12ft Corrugated Polycarbonate Sheet,1.5mm polycarbonate plastic roof panel,clear corrugated plastic roofing sheets OEM |
||
2.75 ft x 12 ft Corrugated Clear Polycarbonate Plastic Roof Panel
DESCRIPTION
Shenghang Plastic Clear Corrugated Polycarbonate sheets have 90 percent light transmission. Polycarbonate square wave sheets offer a high degree of light transmittance while blocking harmful UV rays. Lightweight, yet 10 times stronger than acrylic and 200 times stronger than glass, corrugated polycarbonate is the perfect option for various applications, some of which are hobby greenhouses, pool enclosures, window replacements, skylights, canopies, carports, sunrooms, and more.
PRODUCT ADVANTAGES
● Unbreakable
● Weather resistance
● Waterproof
● Can be transparent or opaque
● Maximum condensation control
● Fire resistant
● Thermal insulation
● UV resistance
● Lifetime limited warranty
● Lightweight and easy to handle
SPECIFICATIONS
| 01 | Product Name | Corrugated Polycarbonate Sheet |
| 02 | Thickness | 0.8mm ~ 3.0mm |
| 03 | Width | 760mm, 840mm, 900mm, 930mm, 1000mm, customized |
| 04 | Length | 2000mm, 3000mm, 4000mm, 5000mm, 6000mm, customized |
| 05 | Color | Transparent, bronze, blue, green, white, gray, yellow, customized |
| 06 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 07 | Type | Corrugated |
| 08 | Warranty | 10 years |
| 09 | Design Style | Modern |
| 10 | Fire Resistance | UL94 V2, UL94 V0 |
| 11 | UV Protection | 50 micron |
| 12 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 13 | Technology | Co-extrusion |
| 14 | Delivery Time | 7-10 days after receipt of deposit |
| 15 | Sample | For free (Please contact us for samples) |
| 16 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Good light transmission: reaches 12%~95% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: only half weight of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um anti-UV coating
7) Heat insulation: heat Conductivity 0.21 W/m· K
8) Good stability, Anti-corrosion

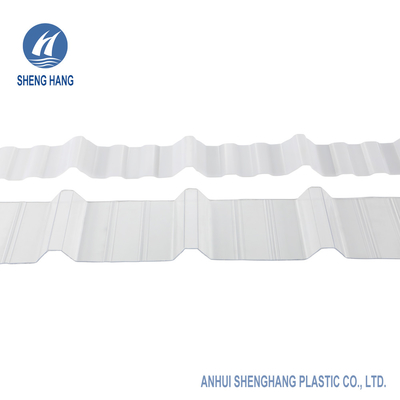

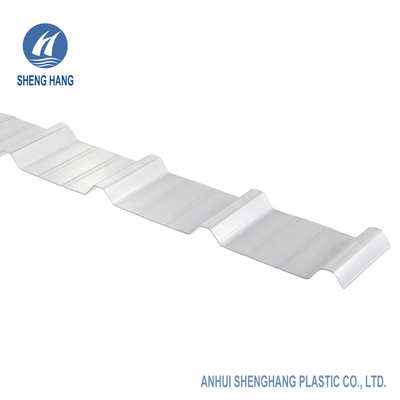

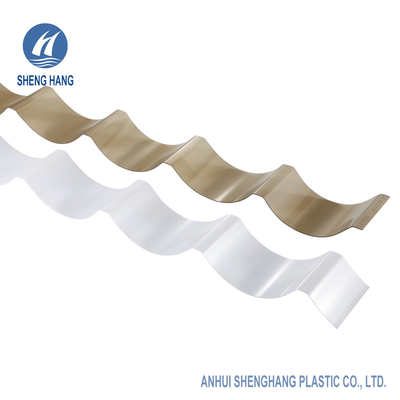

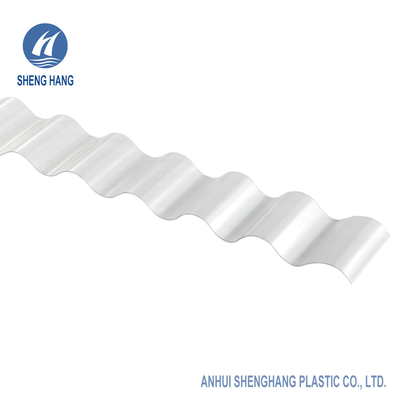

PRODUCT SHOW
PRODUCT CATEGORIES
FACTORY TOUR
TYPICAL APPLICATIONS
1) Roofing materials for the greenhouse, corridors, pavilions, recreational and rest places;
2) Roofing and wall lighting of factories, warehouses, and families;
3) Daylighting band of various building roofs;
4) Lighting materials, walls, roofs, doors and windows, screens, skylight;
5) Ceiling material for awning, canopy, carport, car shed, balcony.
