4mm To 10mm Polycarbonate Twin Wall Roofing Sheet ODM White Red

Plastic Greenhouse Roof Material Polycarbonate Twin Wall Roofing Sheet

DESCRIPTION

Double layered polycarbonate sheet (called twin wall polycarbonate sheet) is produced in a variety of colors and levels of transparency, developed for use in most standard roofing and glazing applications. The surface of the polycarbonate sheet has an anti ultraviolet coating, which can effectively block the ultraviolet radiation in the sunlight.

SHENGHANG PLASTIC twin wall polycarbonate hollow sheets are virtually unbreakable and can resist extreme weather conditions. No matter whether you live in cold or hot climate, its insulation ability against heat and cold will help you enjoy comfort and security.

PRODUCT ADVANTAGES

● High impact resistance

● Weather resistant

● High heat and sound insulation

● Long working life

● Excellent light transmission

● UV protection

● High resistance to mechanical loading

● Light weight

● Easy to install

SPECIFICATIONS
1) Thickness: 4mm~12mm(mainly 4mm, 5mm, 6mm, 8mm, 10mm)
2) Standard size: 2100*6000mm, 2100*5800mm, 2100*3000mm

3) Colors: Transparent(clear), Bronze, Green, Blue, Lake blue, White, Gray, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twinwall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.

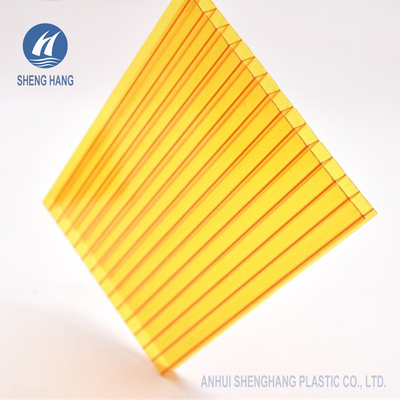

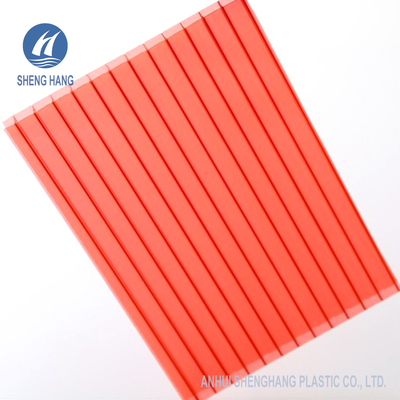

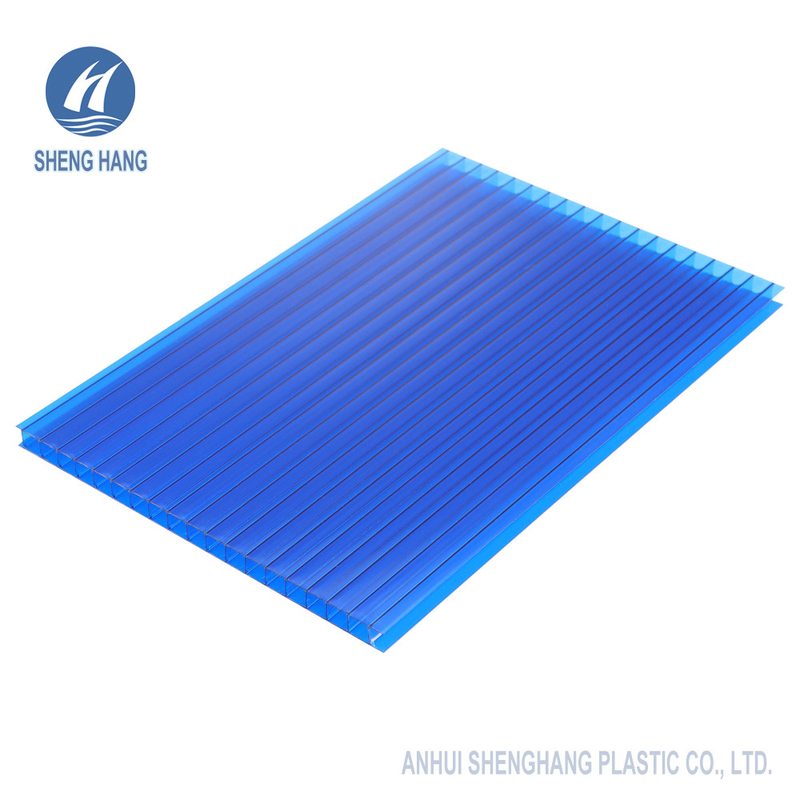

PRODUCT SHOW

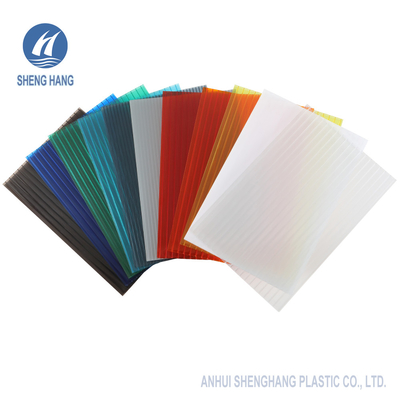

COLOR SELECT

PRODUCT CATEGORY

FEATURES

1) Lightweight: Only 1/12 of the weight of glass of the same thickness

2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet

3) Fire resistance: UL94 V-2, UL94 V-0

4) Good light transmittance: Up to 85%

5) Ultraviolet resistance: 50~80um UV coating

6) Excellent physical, mechanical, and electrical properties

7) Weather resistance: -40°C ~+120°C

8) Excellent thermal insulation performance



OPTIONAL FUNCTIONS
1. Anti-drip
The new generation of the anti-drip sheets is made of hydroxyl-coated nano-silicone anti-fogging material imported from the original. This hydrophilic anti-fogging material can increase the tension of water vapor on the surface of the polycarbonate sheet. Its typical contact angle of water droplets can be as low as 8 degrees. The water droplets formed by the accumulation of fog will quickly distribute downward along the slope of the inner wall of the polycarbonate sheet. It is suitable for lighting roofs that do not allow droplets, especially for swimming pools, agricultural greenhouses, and plant ecological gardens.

2. Frosted
The twin-wall polycarbonate sheet is modified by a special BAYER brilliant masterbatch while maintaining high transmittance. Its inner wall particle effect changes the glare band formed by light refraction of
ordinary board, so that the sunlight becomes soft and does not glare.


FACTORY TOUR

TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.

2. Lighting system for passage, walkway, the entrance of subway.

3. Agriculture greenhouse, canopy for vegetables, animals, flowers.

4. Heat insulation, soundproof for expressway, buildings.

5. Bus stop, advertising lamp box, canopy for ATM.

6. Lighting decoration for the workshop, commercial canopy, villas.

7. Lighting system for skylight, cellar, dome.

8. Decoration panel for inner/outer wall, roof.


PACKING & SHIPPING

LOADING QUANTITY OF CONTAINER
