Product Details:
|
Name: | Dual Wall Polycarbonate Panels | Material: | Polycarbonate(PC) |
---|---|---|---|
Thickness: | 4mm~12mm | Width: | 2100mm |
Length: | 5800mm, 6000mm, Customized | Standard Size: | 2100*6000mm |
Color: | Clear, Brown, Blue, Green, White, Red, Yellow... | UV Protection: | 50 Micron UV Resistant Coating |
Quality Guarantee: | 10 Years | Transport Package: | PE Protective Film |
Raw Material Band: | Covestro, , | Fire Resistance: | UL94 V-2, UL94 V-0 |
HS Code: | 3920610000 | OEM Production: | Acceptable |
High Light: | twin wall polycarbonate panels unbreakable,polycarbonate twinwall roofing sheet anti uv,dual wall polycarbonate panels 6m |
SGS Approval Building Material Colored Polycarbonate Twin Wall Roofing Sheet
DESCRIPTION
Twin wall plastic sheet is made from polycarbonate resin by the latest coextrusion technologies. Twin-wall polycarbonate sheet is a common type of polycarbonate series sheet. Its structure is rectangular and hollow, with the characteristics of light weight, high strength, heat insulation and so on.
SHENGHANG PLASTIC twin wall polycarbonate hollow sheets are virtually unbreakable and can resist extreme weather conditions. No matter whether you live in cold or hot climate, its insulation ability against heat and cold will help you enjoy comfort and security. Mostly, these sheets come with long working life, and we can offer warranty against yellowing.
PRODUCT ADVANTAGES
● High impact resistance
● Weather resistant
● High heat and sound insulation
● Long working life
● Excellent light transmission
● UV protection
● High resistance to mechanical loading
● Light weight
● Easy to install
SPECIFICATIONS
1) Thickness: 4mm~12mm(mainly 4mm, 5mm, 6mm, 8mm, 10mm)
2) Standard size: 2100*6000mm, 2100*5800mm, 2100*3000mm
3) Colors: Transparent(clear), Bronze, Green, Blue, Lake blue, White, Gray, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twinwall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.
Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
(mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
Twin-wall | HS2R | 4 | 1.0 | 2100 | 50 | 82 | 4.00 | 700 | Clear, White, Bronze, Blue, Lake blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black… |
6 | 1.3 | 2100 | 50 | 81 | 3.60 | 1050 | |||
8 | 1.5 | 2100 | 50 | 80 | 3.30 | 1400 | |||
10 | 1.7 | 2100 | 50 | 79 | 3.00 | 1750 | |||
12 | 1.9 | 2100 | 50 | 79 | 2.80 | 2100 | |||
3-wall | HS3R | 6 | 1.4 | 2100 | 50 | 76 | 3.22 | 1050 | |
8 | 1.6 | 2100 | 50 | 72 | 2.92 | 1400 | |||
10 | 1.8 | 2100 | 50 | 68 | 2.70 | 1750 | |||
12 | 2.1 | 2100 | 50 | 66 | 2.60 | 2100 | |||
14 | 2.3 | 2100 | 50 | 65 | 2.40 | 2450 | |||
16 | 2.5 | 2100 | 50 | 63 | 2.27 | 2800 | |||
3-wall X | HS3R-X | 12 | 2.3 | 2100 | 50 | 65 | 2.55 | 2100 | |
14 | 2.5 | 2100 | 50 | 64 | 2.36 | 2450 | |||
16 | 2.7 | 2100 | 50 | 63 | 2.20 | 2800 | |||
18 | 2.9 | 2100 | 50 | 62 | 2.12 | 3150 | |||
4-wall | HS4R | 8 | 1.8 | 2100 | 50 | 68 | 2.56 | 1400 | |
10 | 1.9 | 2100 | 50 | 67 | 2.39 | 1750 | |||
12 | 2.0 | 2100 | 50 | 65 | 2.30 | 2100 | |||
14 | 2.2 | 2100 | 50 | 64 | 2.10 | 2450 | |||
16 | 2.4 | 2100 | 50 | 63 | 2.00 | 2800 | |||
18 | 2.6 | 2100 | 50 | 62 | 1.88 | 3150 | |||
Honeycomb | HS4H | 6 | 1.5 | 2100 | 50 | 59 | 2.83 | 1050 | |
8 | 1.8 | 2100 | 50 | 58 | 2.48 | 1400 | |||
10 | 2.0 | 2100 | 50 | 57 | 2.16 | 1750 | |||
12 | 2.2 | 2100 | 50 | 56 | 1.98 | 2100 | |||
5-wall | HS5R | 8 | 1.8 | 2100 | 50 | 65 | 2.53 | 1400 | |
10 | 2.0 | 2100 | 50 | 64 | 2.30 | 1750 | |||
12 | 2.2 | 2100 | 50 | 63 | 2.26 | 2100 | |||
5-wall X | HS5R-X | 16 | 2.5 | 2100 | 50 | 61 | 1.89 | 2800 | |
18 | 2.8 | 2100 | 50 | 60 | 1.78 | 3150 | |||
20 | 3.2 | 2100 | 50 | 59 | 1.69 | 3500 | |||
25 | 3.5 | 2100 | 50 | 57 | 1.50 | 4375 | |||
30 | 4.0 | 2100 | 50 | 55 | 1.35 | 5250 | |||
6-wall Diamond | HS6D | 12 | 2.2 | 2100 | 50 | 61 | 2.17 | 2100 | |
14 | 2.5 | 2100 | 50 | 60 | 1.90 | 2450 | |||
16 | 2.9 | 2100 | 50 | 59 | 1.84 | 2800 | |||
18 | 3.0 | 2100 | 50 | 58 | 1.72 | 3150 | |||
7-wall | HS7R | 14 | 2.4 | 2100 | 50 | 58 | 1.80 | 2450 | |
16 | 2.6 | 2100 | 50 | 56 | 1.66 | 2800 | |||
18 | 2.8 | 2100 | 50 | 54 | 1.52 | 3150 | |||
20 | 3.0 | 2100 | 50 | 52 | 1.38 | 3500 | |||
22 | 3.2 | 2100 | 50 | 50 | 1.24 | 3850 | |||
8-wall Diamond |
HS8D | 25 | 3.4 | 2100 | 50 | 48 | 1.40 | 4375 | |
32 | 3.6 | 2100 | 50 | 46 | 1.28 | 5600 | |||
35 | 4.0 | 2100 | 50 | 44 | 1.19 | 6125 | |||
40 | 4.5 | 2100 | 50 | 42 | 1.10 | 7000 |

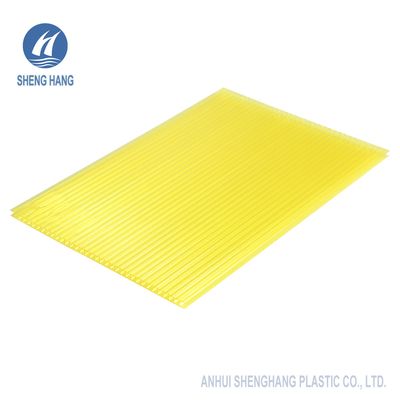

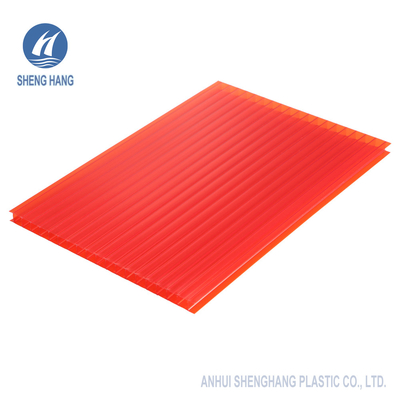

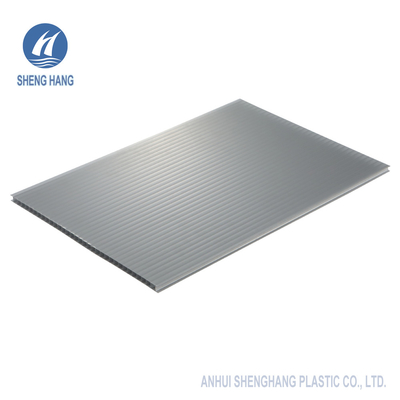

PRODUCT SHOW

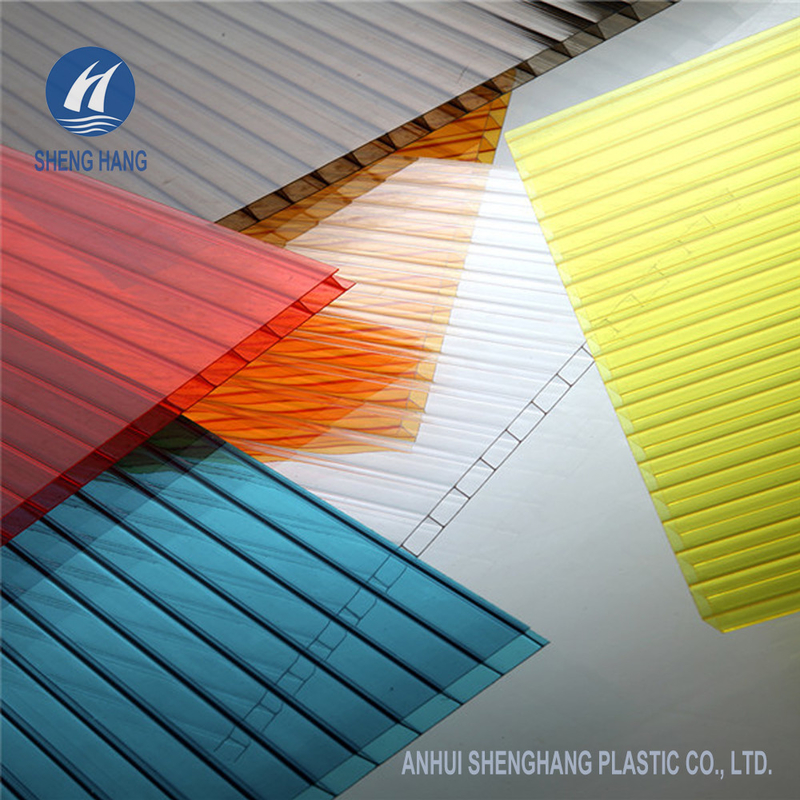

COLOR SELECT
PRODUCT CATEGORY
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
OPTIONAL FUNCTIONS
1. Anti-drip
The new generation of the anti-drip sheets is made of hydroxyl-coated nano-silicone anti-fogging material imported from the original. This hydrophilic anti-fogging material can increase the tension of water vapor on the surface of the polycarbonate sheet. Its typical contact angle of water droplets can be as low as 8 degrees. The water droplets formed by the accumulation of fog will quickly distribute downward along the slope of the inner wall of the polycarbonate sheet. It is suitable for lighting roofs that do not allow droplets, especially for swimming pools, agricultural greenhouses, and plant ecological gardens.
2. Frosted
The twin-wall polycarbonate sheet is modified by a special BAYER brilliant masterbatch while maintaining high transmittance. Its inner wall particle effect changes the glare band formed by light refraction of
ordinary board, so that the sunlight becomes soft and does not glare.
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.
2. Lighting system for passage, walkway, the entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Bus stop, advertising lamp box, canopy for ATM.
6. Lighting decoration for the workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINER
Thickness(mm) | Specification(mm) | Quantity for 20GP | Specification(mm) | Quantity for 40HQ |
(PCS) | (PCS) | |||
4 | 2100*5800 | 550 | 2100*6000 | 1300 |
6 | 2100*5800 | 380 | 2100*6000 | 880 |
8 | 2100*5800 | 290 | 2100*6000 | 670 |
10 | 2100*5800 | 235 | 2100*6000 | 535 |
