Product Details:
|
Material: | Polycarbonate | Thickness: | 4mm, 5mm, 6mm, 8mm, 10mm |
---|---|---|---|
Width: | 2100mm, Customized | Length: | 3000mm, 6000mm, Customized |
Standard Size: | 2100*3000mm, 2100*6000mm | Color: | Bronze |
Structure: | Twin-wall Rectangular Structure | UV Protection: | 50 Micron Anti-UV Coating |
Quality Guarantee: | 10 Years | Transport Package: | PE Protective Film |
Raw Material Band: | Covestro, , | Fire Resistance: | UL94 V-2, UL94 V-0 |
HS Code: | 3920610000 | OEM: | Acceptable |
High Light: | double layer polycarbonate sheet 2.1*3m,double layer polycarbonate 50 Micron,UL94 V2 twinwall polycarbonate panels |
Customized Size and Color PC Roofing Board Double Walls Polycarbonate Sheet
DESCRIPTION
SHENGHANG PLASTIC Polycarbonate hollow sheet has properties that make it an excellent choice for architectural applications. Double layered polycarbonate sheet (called Twin-Wall or Twin Wall polycarbonate sheet) is produced in a variety of colors and levels of transparency, developed for use in most standard roofing and glazing applications. The surface of the polycarbonate sheet has an anti ultraviolet coating, which can effectively block the ultraviolet radiation in the sunlight. This ensures that the internal molecular structure of the polycarbonate sheet is not damaged, and greatly prolongs the service life of the PC sheet.
PRODUCT ADVANTAGES
*Light weight
*High impact strength
*High light transmittance
*UV resistance
*Strong weather resistance
*Excellent thermal insulation
*Easy to install and process
*Customized size and color
SPECIFICATIONS
1) Thickness: 4mm~12mm(4mm, 5mm, 6mm, 8mm, 10mm)
2) Standard size: 2100*6000mm, 2100*5800mm
3) Colors: Transparent(clear), Bronze, Green, Blue, Lake blue, White, Gry, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twin-wall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.
Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
(mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
Twin-wall | HS2R | 4 | 1.0 | 2100 | 50 | 82 | 4.00 | 700 | Clear, White, Bronze, Blue, Lake blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black… |
6 | 1.3 | 2100 | 50 | 81 | 3.60 | 1050 | |||
8 | 1.5 | 2100 | 50 | 80 | 3.30 | 1400 | |||
10 | 1.7 | 2100 | 50 | 79 | 3.00 | 1750 | |||
12 | 1.9 | 2100 | 50 | 79 | 2.80 | 2100 | |||
3-wall | HS3R | 6 | 1.4 | 2100 | 50 | 76 | 3.22 | 1050 | |
8 | 1.6 | 2100 | 50 | 72 | 2.92 | 1400 | |||
10 | 1.8 | 2100 | 50 | 68 | 2.70 | 1750 | |||
12 | 2.1 | 2100 | 50 | 66 | 2.60 | 2100 | |||
14 | 2.3 | 2100 | 50 | 65 | 2.40 | 2450 | |||
16 | 2.5 | 2100 | 50 | 63 | 2.27 | 2800 | |||
3-wall X | HS3R-X | 12 | 2.3 | 2100 | 50 | 65 | 2.55 | 2100 | |
14 | 2.5 | 2100 | 50 | 64 | 2.36 | 2450 | |||
16 | 2.7 | 2100 | 50 | 63 | 2.20 | 2800 | |||
18 | 2.9 | 2100 | 50 | 62 | 2.12 | 3150 | |||
4-wall | HS4R | 8 | 1.8 | 2100 | 50 | 68 | 2.56 | 1400 | |
10 | 1.9 | 2100 | 50 | 67 | 2.39 | 1750 | |||
12 | 2.0 | 2100 | 50 | 65 | 2.30 | 2100 | |||
14 | 2.2 | 2100 | 50 | 64 | 2.10 | 2450 | |||
16 | 2.4 | 2100 | 50 | 63 | 2.00 | 2800 | |||
18 | 2.6 | 2100 | 50 | 62 | 1.88 | 3150 | |||
Honeycomb | HS4H | 6 | 1.5 | 2100 | 50 | 59 | 2.83 | 1050 | |
8 | 1.8 | 2100 | 50 | 58 | 2.48 | 1400 | |||
10 | 2.0 | 2100 | 50 | 57 | 2.16 | 1750 | |||
12 | 2.2 | 2100 | 50 | 56 | 1.98 | 2100 | |||
5-wall | HS5R | 8 | 1.8 | 2100 | 50 | 65 | 2.53 | 1400 | |
10 | 2.0 | 2100 | 50 | 64 | 2.30 | 1750 | |||
12 | 2.2 | 2100 | 50 | 63 | 2.26 | 2100 | |||
5-wall X | HS5R-X | 16 | 2.5 | 2100 | 50 | 61 | 1.89 | 2800 | |
18 | 2.8 | 2100 | 50 | 60 | 1.78 | 3150 | |||
20 | 3.2 | 2100 | 50 | 59 | 1.69 | 3500 | |||
25 | 3.5 | 2100 | 50 | 57 | 1.50 | 4375 | |||
30 | 4.0 | 2100 | 50 | 55 | 1.35 | 5250 | |||
6-wall Diamond | HS6D | 12 | 2.2 | 2100 | 50 | 61 | 2.17 | 2100 | |
14 | 2.5 | 2100 | 50 | 60 | 1.90 | 2450 | |||
16 | 2.9 | 2100 | 50 | 59 | 1.84 | 2800 | |||
18 | 3.0 | 2100 | 50 | 58 | 1.72 | 3150 | |||
7-wall | HS7R | 14 | 2.4 | 2100 | 50 | 58 | 1.80 | 2450 | |
16 | 2.6 | 2100 | 50 | 56 | 1.66 | 2800 | |||
18 | 2.8 | 2100 | 50 | 54 | 1.52 | 3150 | |||
20 | 3.0 | 2100 | 50 | 52 | 1.38 | 3500 | |||
22 | 3.2 | 2100 | 50 | 50 | 1.24 | 3850 | |||
8-wall Diamond |
HS8D | 25 | 3.4 | 2100 | 50 | 48 | 1.40 | 4375 | |
32 | 3.6 | 2100 | 50 | 46 | 1.28 | 5600 | |||
35 | 4.0 | 2100 | 50 | 44 | 1.19 | 6125 | |||
40 | 4.5 | 2100 | 50 | 42 | 1.10 | 7000 |

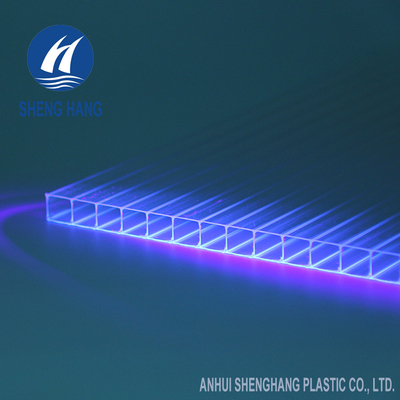

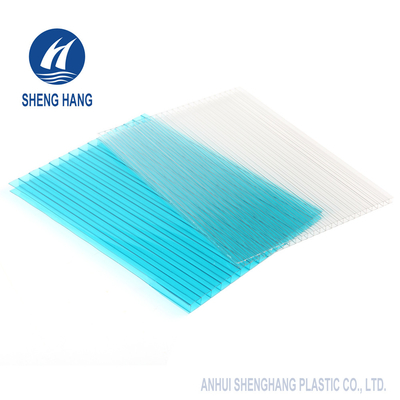

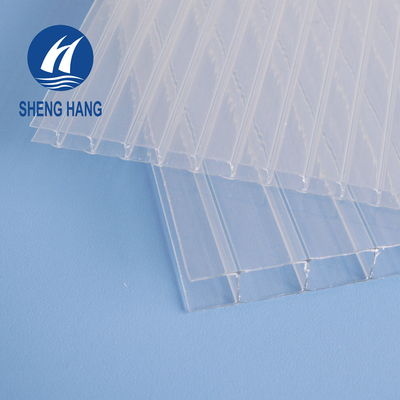

PRODUCT SHOW

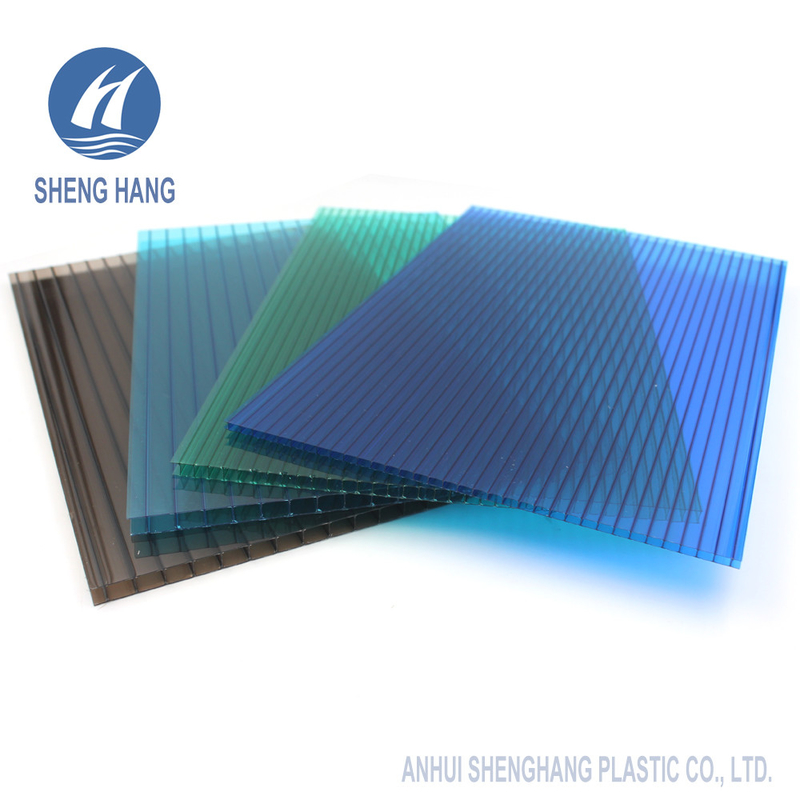

COLOR SELECT
PRODUCT CATEGORY
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
OPTIONAL FUNCTIONS
1. Anti-drip
The new generation of the anti-drip sheets is made of hydroxyl-coated nano-silicone anti-fogging material imported from the original. This hydrophilic anti-fogging material can increase the tension of water vapor on the surface of the polycarbonate sheet. Its typical contact angle of water droplets can be as low as 8 degrees. The water droplets formed by the accumulation of fog will quickly distribute downward along the slope of the inner wall of the polycarbonate sheet. It is suitable for lighting roofs that do not allow droplets, especially for swimming pools, agricultural greenhouses, and plant ecological gardens.
2. Frosted
The twin-wall polycarbonate sheet is modified by a special BAYER brilliant masterbatch while maintaining high transmittance. Its inner wall particle effect changes the glare band formed by light refraction of
ordinary board, so that the sunlight becomes soft and does not glare.
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.
2. Lighting system for passage, walkway, the entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Bus stop, advertising lamp box, canopy for ATM.
6. Lighting decoration for the workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINER
Thickness(mm) | Specification(mm) | Quantity for 20GP | Specification(mm) | Quantity for 40HQ |
(PCS) | (PCS) | |||
4 | 2100*5800 | 550 | 2100*6000 | 1300 |
6 | 2100*5800 | 380 | 2100*6000 | 880 |
8 | 2100*5800 | 290 | 2100*6000 | 670 |
10 | 2100*5800 | 235 | 2100*6000 | 535 |
