Product Details:
|
| Material: | Polycarbonate(PC) | Color: | Transparent, White, Bronze, Blue, Green |
|---|---|---|---|
| Thickness: | 0.8mm~3.0mm | Width: | 600mm~1200mm |
| Length: | Customized | UV Protection: | 50 Micron UV Resistance |
| Fire Rating: | UL94-V2, UL94-V0 | Brand Of Raw Material: | Covestro, , |
| Main Advantages: | Lightweight, High Impact, High Transparency | Service Life: | Above 10 Years |
| Transport Package: | Kraft Paper | HS Code: | 3920610000 |
| High Light: | 3m corrugated plastic roofing sheets,polycarbonate sheets for greenhouse ISO,polycarbonate sheets for greenhouse anti uv |
||
Anti-UV Plastic Roofing Material Corrugated Polycarbonate PC Solid Sheet
DESCRIPTION
SHENGHANG PLASTIC Corrugated Polycarbonate Solid Sheet is a new energy-saving product, which has the characteristics of lightweight, high strength, and excellent light transmittance. In addition, the corrugated polycarbonate sheet has better stability, is not easy to yellowing, and has a high absorption capacity in the ultraviolet spectrum range (290-400 NM). The unique flexibility makes it easier to install and effectively avoids the problem of sheet deformation caused by thermal expansion and cold contraction. SHENGHANG PLASTIC corrugated polycarbonate sheets have a variety of shapes and colors to choose from, but also can be customized according to needs.
PRODUCT ADVANTAGES
* High impact strength(Unbreakable)
* High transparency
* High light transmittance
* Strong weather resistance
* Waterproof
* Maximum condensation control
* Good flame retardancy
* Good thermal insulation
* UV resistance
* Fine plasticity
* Lightweight
* Easy to install
SPECIFICATIONS
*Thickness Range: 0.8mm~3.0mm (0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm)
*Width: 760mm, 840mm, 900mm, 930mm, 1000mm, Max.1200mm (Depending on different shapes)
*Length: 2000mm/3000mm/5800mm/6000mm/customized
*Structure selections: More than 30 structures and shapes for selecting.
*Colors: Transparent(clear), brown, lake blue, blue, green, opal white, grey, black, yellow, orange, red, pink, customized
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Good light transmission: reaches 12%~95% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: only half weight of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um one side or both sides anti-UV coating
7) Heat insulation: heat Conductivity 0.21 W/m· K
8) Good stability, Anti-corrosion

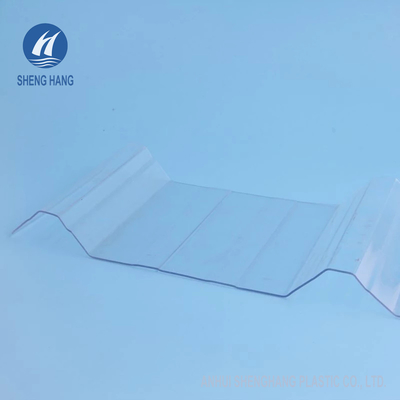

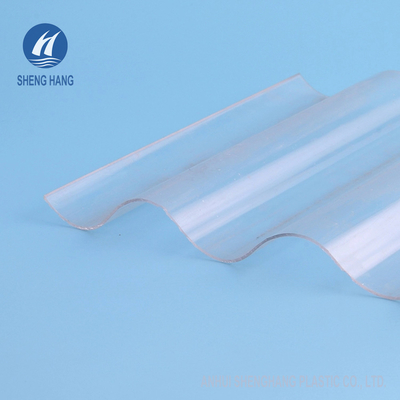

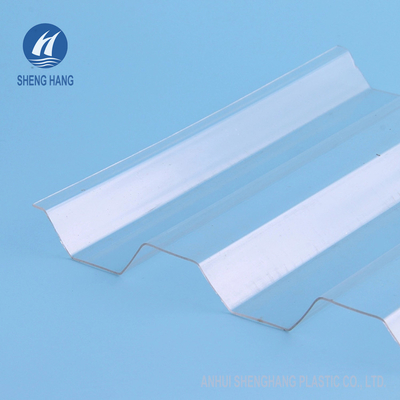

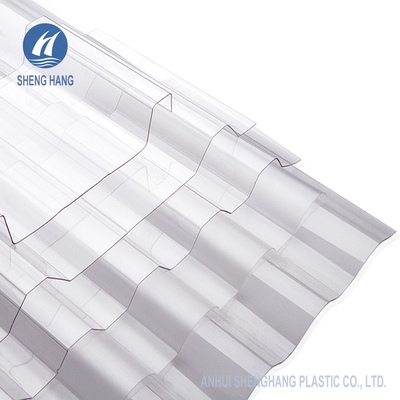

PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
Polycarbonate sheet has excellent dimensional stability, which is very suitable for secondary processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
We provide professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are tested and approved.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Roofing materials for the greenhouse, corridors, pavilions, recreational and rest places;
2) Roofing and wall lighting of factories, warehouses, and families;
3) Daylighting band of various building roofs;
4) Lighting materials, walls, roofs, doors and windows, screens, skylight;
5) Ceiling material for awning, canopy, carport, car shed, balcony.
