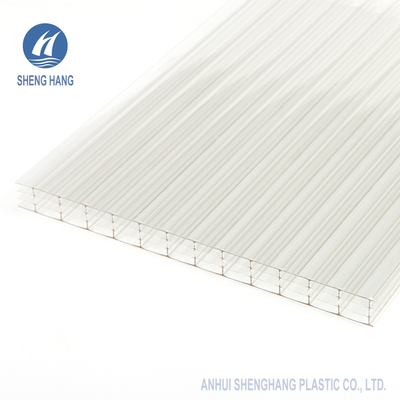

High Impact Strength Four Wall Polycarbonate Hollow Sheet Board SGS 2.2kg/ M2 14mm

High Impact Strength Roof Material Four Wall Polycarbonate PC Hollow Sheet

DESCRIPTION

SHENGHANG PLASTIC polycarbonate hollow sheet has the characteristics of light weight, high strength and good thermal insulation properties. Compared with the traditional twin-wall sheet, Four Walls Polycarbonate Hollow Sheet has better thermal insulation performance and is suitable for the occasion with higher requirements for thermal insulation and energy saving. Unique design ensures that the sheet can be installed conveniently and quickly, cutting or drilling will not cause the sheet to crack or damage easily. The surface co-extruded UV layer guarantees the weatherability of the sheet and provides 10-year quality assurance.

PRODUCT ADVANTAGES
* Lightweight
* High impact strength
* Good lighting performance
* Ultraviolet resistance(Anti-UV)
* Good weather resistance
* Good thermal insulation
* Easy to install and process

SPECIFICATIONS
1) Thickness: 8mm~18mm(10mm, 12mm, 14mm, 16mm)
2) Standard size: 2100*6000mm, 2100*5800mm

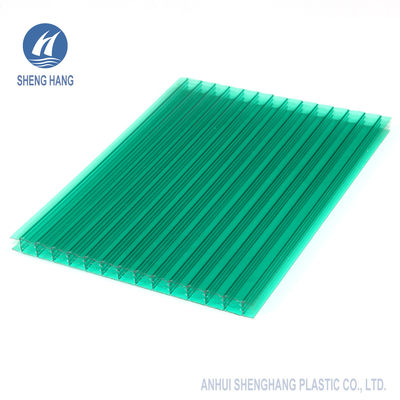

3) Colors: Transparent(clear), Bronze, Green, Blue, Lake blue, White, Gry, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twin-wall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.

PRODUCT SHOW

COLOR SELECT

PRODUCT CATEGORIES

FEATURES

1) Lightweight: Only 1/12 of the weight of glass of the same thickness

2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet

3) Fire resistance: UL94 V-2, UL94 V-0

4) Good light transmittance: Up to 85%

5) Ultraviolet resistance: 50~80um UV coating

6) Excellent physical, mechanical, and electrical properties

7) Weather resistance: -40°C ~+120°C

8) Excellent thermal insulation performance



OPTIONAL FUNCTIONS
1. Anti-drip
The new generation of the anti-drip sheets is made of hydroxyl-coated nano-silicone anti-fogging material imported from the original. This hydrophilic anti-fogging material can increase the tension of water vapor on the surface of the polycarbonate sheet. Its typical contact angle of water droplets can be as low as 8 degrees. The water droplets formed by the accumulation of fog will quickly distribute downward along the slope of the inner wall of the polycarbonate sheet. It is suitable for lighting roofs that do not allow droplets, especially for swimming pools, agricultural greenhouses, and plant ecological gardens.

2. Frosted
The twin-wall polycarbonate sheet is modified by a special BAYER brilliant masterbatch while maintaining high transmittance. Its inner wall particle effect changes the glare band formed by light refraction of ordinary board, so that the sunlight becomes soft and does not glare.


FACTORY TOUR

TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.

2. Lighting system for passage, walkway, the entrance of subway.

3. Agriculture greenhouse, canopy for vegetables, animals, flowers.

4. Heat insulation, soundproof for expressway, buildings.

5. Bus stop, advertising lamp box, canopy for ATM.

6. Lighting decoration for the workshop, commercial canopy, villas.

7. Lighting system for skylight, cellar, dome.

8. Decoration panel for inner/outer wall, roof.


PACKING & SHIPPING

LOADING QUANTITY OF CONTAINER
