Product Details:
|
| Material: | PC | Thickness: | 6mm |
|---|---|---|---|
| Size: | 2.1m*6m | Color: | Clear And Colored |
| UV Protection: | UV Resistance | Quality Warranty: | 10 Years |
| Highlight: | 6mm Double Wall Polycarbonate Sheet,6mm Clear Polycarbonate Roof Panels,Colored Double Wall Polycarbonate Sheet |
||

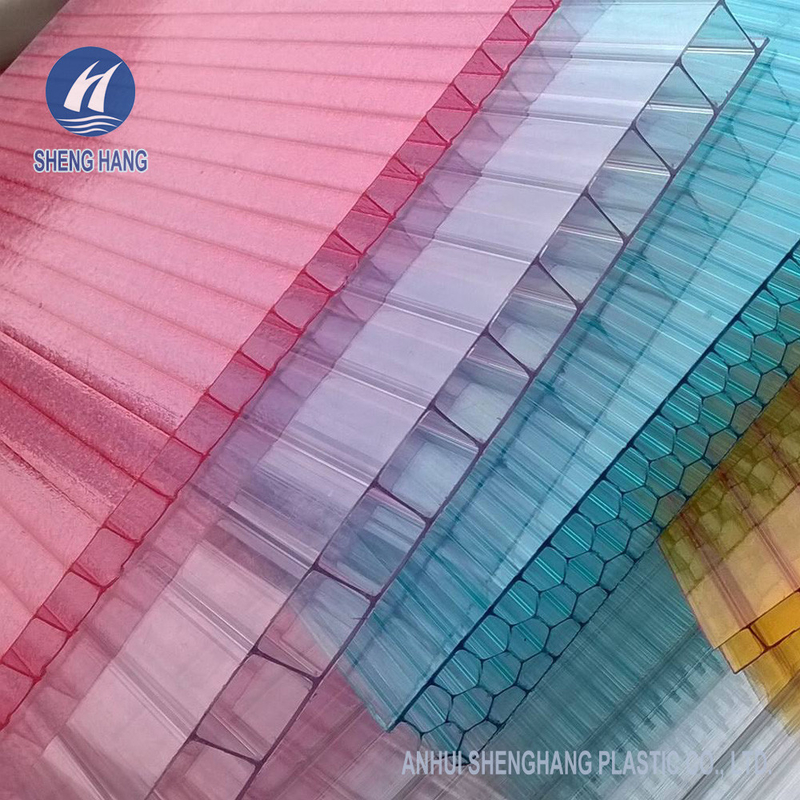

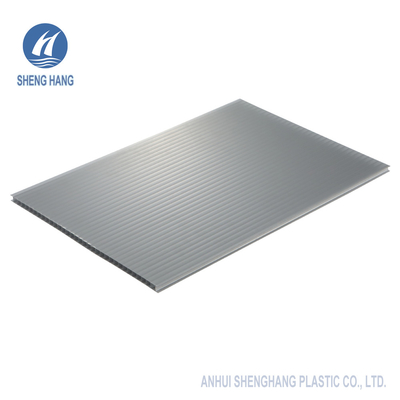

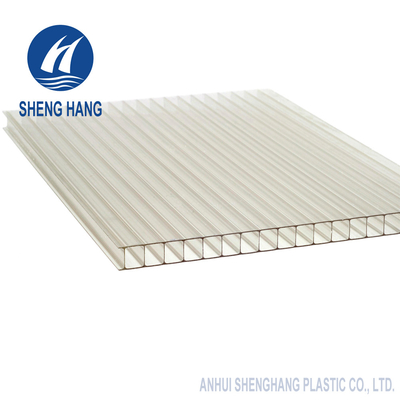

6mm Double Wall Polycarbonate Sheet Poly Carbonate Clear Roof Panel
DESCRIPTION
Twin-wall polycarbonate sheet, a standard version of multiwall polycarbonate sheet, is self-supporting without requiring as many grazing bars as floating glass, for the weight of polycarbonate sheet accounts for only a quarter of glass. Light weight and hollow structure together contributes to cost saving and high light transmission.
High light transmission
Light transmission of 4 mm clear twin-wall polycarbonate reaches 89%. Twin wall polycarbonate sheets are often used in greenhouse not only for sufficient sunlight, but also blocking out harmful UV radiation.
High impact strength
Impact strength of polycarbonate sheet is 250 times as much as the size of tempered glass. This superiority makes it an optimum material for protecting greenhouse from hail and stones.
PRODUCT ADVANTAGES
*Lightweight
*High impact strength
*High light transmittance
*UV resistance
*Weather resistance
*Good thermal insulation
*Easy to install and process
SPECIFICATIONS
1) Thickness: 4mm, 5mm, 6mm, 8mm, 10mm
2) Standard size: 2100*6000mm, 2100*5800mm
3) Colors: Clear, Bronze, Green, Blue, Lake blue, White, Gry, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twin-wall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.
| Structure | Model | Thickness | Weight | Max Width | Anti-UV Coating | Max Light Transmission | K Value | Min. Bend Radius | Color |
| (mm) | (kg/m2) | (mm) | (um) | (%) | (W/M2K) | (mm) | |||
| Twin-wall | HS2R | 4 | 1.0 | 2100 | 50 | 82 | 4.00 | 700 | Clear, White, Bronze, Blue, Lake blue, Green, Yellow, Orange, Red, Pink, Silver, Gray, Black… |
| 6 | 1.3 | 2100 | 50 | 81 | 3.60 | 1050 | |||
| 8 | 1.5 | 2100 | 50 | 80 | 3.30 | 1400 | |||
| 10 | 1.7 | 2100 | 50 | 79 | 3.00 | 1750 | |||
| 12 | 1.9 | 2100 | 50 | 79 | 2.80 | 2100 | |||
| 3-wall | HS3R | 6 | 1.4 | 2100 | 50 | 76 | 3.22 | 1050 | |
| 8 | 1.6 | 2100 | 50 | 72 | 2.92 | 1400 | |||
| 10 | 1.8 | 2100 | 50 | 68 | 2.70 | 1750 | |||
| 12 | 2.1 | 2100 | 50 | 66 | 2.60 | 2100 | |||
| 14 | 2.3 | 2100 | 50 | 65 | 2.40 | 2450 | |||
| 16 | 2.5 | 2100 | 50 | 63 | 2.27 | 2800 | |||
| 3-wall X | HS3R-X | 12 | 2.3 | 2100 | 50 | 65 | 2.55 | 2100 | |
| 14 | 2.5 | 2100 | 50 | 64 | 2.36 | 2450 | |||
| 16 | 2.7 | 2100 | 50 | 63 | 2.20 | 2800 | |||
| 18 | 2.9 | 2100 | 50 | 62 | 2.12 | 3150 | |||
| 4-wall | HS4R | 8 | 1.8 | 2100 | 50 | 68 | 2.56 | 1400 | |
| 10 | 1.9 | 2100 | 50 | 67 | 2.39 | 1750 | |||
| 12 | 2.0 | 2100 | 50 | 65 | 2.30 | 2100 | |||
| 14 | 2.2 | 2100 | 50 | 64 | 2.10 | 2450 | |||
| 16 | 2.4 | 2100 | 50 | 63 | 2.00 | 2800 | |||
| 18 | 2.6 | 2100 | 50 | 62 | 1.88 | 3150 | |||
| Honeycomb | HS4H | 6 | 1.5 | 2100 | 50 | 59 | 2.83 | 1050 | |
| 8 | 1.8 | 2100 | 50 | 58 | 2.48 | 1400 | |||
| 10 | 2.0 | 2100 | 50 | 57 | 2.16 | 1750 | |||
| 12 | 2.2 | 2100 | 50 | 56 | 1.98 | 2100 | |||
| 5-wall | HS5R | 8 | 1.8 | 2100 | 50 | 65 | 2.53 | 1400 | |
| 10 | 2.0 | 2100 | 50 | 64 | 2.30 | 1750 | |||
| 12 | 2.2 | 2100 | 50 | 63 | 2.26 | 2100 | |||
| 5-wall X | HS5R-X | 16 | 2.5 | 2100 | 50 | 61 | 1.89 | 2800 | |
| 18 | 2.8 | 2100 | 50 | 60 | 1.78 | 3150 | |||
| 20 | 3.2 | 2100 | 50 | 59 | 1.69 | 3500 | |||
| 25 | 3.5 | 2100 | 50 | 57 | 1.50 | 4375 | |||
| 30 | 4.0 | 2100 | 50 | 55 | 1.35 | 5250 | |||
| 6-wall Diamond | HS6D | 12 | 2.2 | 2100 | 50 | 61 | 2.17 | 2100 | |
| 14 | 2.5 | 2100 | 50 | 60 | 1.90 | 2450 | |||
| 16 | 2.9 | 2100 | 50 | 59 | 1.84 | 2800 | |||
| 18 | 3.0 | 2100 | 50 | 58 | 1.72 | 3150 | |||
| 7-wall | HS7R | 14 | 2.4 | 2100 | 50 | 58 | 1.80 | 2450 | |
| 16 | 2.6 | 2100 | 50 | 56 | 1.66 | 2800 | |||
| 18 | 2.8 | 2100 | 50 | 54 | 1.52 | 3150 | |||
| 20 | 3.0 | 2100 | 50 | 52 | 1.38 | 3500 | |||
| 22 | 3.2 | 2100 | 50 | 50 | 1.24 | 3850 | |||
| 8-wall Diamond |
HS8D | 25 | 3.4 | 2100 | 50 | 48 | 1.40 | 4375 | |
| 32 | 3.6 | 2100 | 50 | 46 | 1.28 | 5600 | |||
| 35 | 4.0 | 2100 | 50 | 44 | 1.19 | 6125 | |||
| 40 | 4.5 | 2100 | 50 | 42 | 1.10 | 7000 |
PRODUCT SHOW

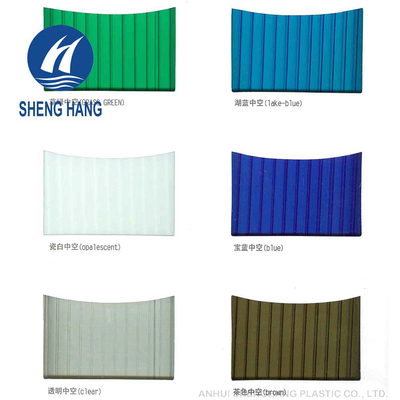

COLOR SELECT
PRODUCT CATEGORY
FEATURES
1) Lightweight: Only 1/12 of the weight of glass of the same thickness
2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet
3) Fire resistance: UL94 V-2, UL94 V-0
4) Good light transmittance: Up to 85%
5) Ultraviolet resistance: 50~80um UV coating
6) Excellent physical, mechanical, and electrical properties
7) Weather resistance: -40°C ~+120°C
8) Excellent thermal insulation performance
FACTORY TOUR
TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.
2. Lighting system for passage, walkway, the entrance of subway.
3. Agriculture greenhouse, canopy for vegetables, animals, flowers.
4. Heat insulation, soundproof for expressway, buildings.
5. Bus stop, advertising lamp box, canopy for ATM.
6. Lighting decoration for the workshop, commercial canopy, villas.
7. Lighting system for skylight, cellar, dome.
8. Decoration panel for inner/outer wall, roof.
PACKING & SHIPPING
LOADING QUANTITY OF CONTAINER
| Thickness(mm) | Specification(mm) | Quantity for 20GP | Specification(mm) | Quantity for 40HQ |
| (PCS) | (PCS) | |||
| 4 | 2100*5800 | 550 | 2100*6000 | 1300 |
| 6 | 2100*5800 | 380 | 2100*6000 | 880 |
| 8 | 2100*5800 | 290 | 2100*6000 | 670 |
| 10 | 2100*5800 | 235 | 2100*6000 | 535 |
