Product Details:
|
| Raw Material: | PC | Color: | Transparent |
|---|---|---|---|
| Thickness Range: | 6mm | Width: | Customized(Max. 2100mm) |
| Length: | 2000mm, 2440mm, 3050mm, Customized | Standard Size: | 1000*2000mm, 1220*2440mm, 2050*3050mm |
| Fire Rating: | UL94 V-2, UL94 V-0 | UV Protection: | Double-Side UV Resistance |
| Quality Warranty: | 10 Years | Transport Package: | Kraft Paper, Wood Pallet |
| Brand Of Raw Material: | Covestro, , | HS Code: | 3920610000 |
| OEM Production: | Acceptable | Processing Services: | Carving, Drilling, Cutting, Bending, Hot Forming, Printing, Etc. |
| High Light: | 8ft Polycarbonate Solid Sheet,6mm solid polycarbonate sheet waterproof,6mm polycarbonate |
||
100% Raw Material 6mm Solid Clear Polycarbonate Sheet
DESCRIPTION
Shenghang Plastic general polycarbonate solid sheet is a kind of engineering plastic sheet with excellent performance. It has the advantages of high strength, light weight, good light transmittance and suitable for processing. Shenghang Plastic polycarbonate solid sheet is widely used in building roof, engineering decoration, industrial processing and other industries. Shenghang Plastic PC solid sheet has double-sided UV resistant coating, can provide ten-year quality warranty.
PRODUCT ADVANTAGES
* High transparency
* High light transmittance
* High impact strength
* UV Resistance
* Strong weather resistance
* Light weight
* Good fire resistance
* Good thermal insulation
* Suitable for processing
SPECIFICATIONS
| 1 | Product Name | Solid Polycarbonate Sheet |
| 2 | Thickness | 1.2mm ~ 30mm |
| 3 | Width | 1000mm, 1200mm, 2050mm, customized(Max.2100mm) |
| 4 | Length | 2440mm, 3000mm, 30 meters per roll, customized |
| 5 | Standard Size | 1000*2000mm, 1220*2440mm, 2000*3000mm |
| 6 | Color | Transparent, bronze, blue, green, white, gray, black, yellow, orange, red, customized |
| 7 | Certification | SGS, CNAS, ISO9001:2008, Fire-resistant Test Report |
| 8 | Surface Texture | Flat, Polished/Polished |
| 9 | Warranty | 10 years |
| 10 | Design Style | Modern |
| 11 | Fire Resistance | UL94 V2, UL94 V0 |
| 12 | Scratch Resistant | HB, H, 2H |
| 13 | UV Protection | 50 micron |
| 14 | Service Temperature | -40~120 ºC (Degrees Celsius) |
| 15 | Technology | Co-extrusion |
| 16 | Delivery Time | 7-10 days after receipt of deposit |
| 17 | Sample | For free |
| 18 | After-sale Service | Online technical support, Onsite Installation, Onsite Training |
TECHNICAL DATA
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: half weight that of glass upon the same thickness
6) Ultraviolet resistance: 50um~80um one side or double-sided anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Fine plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing, etc.

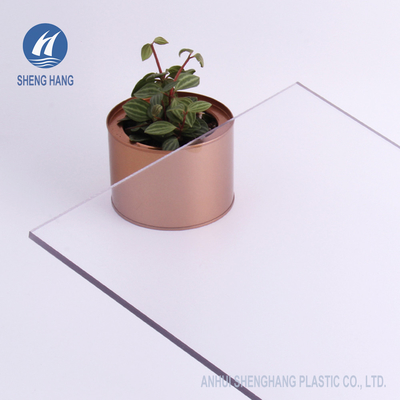

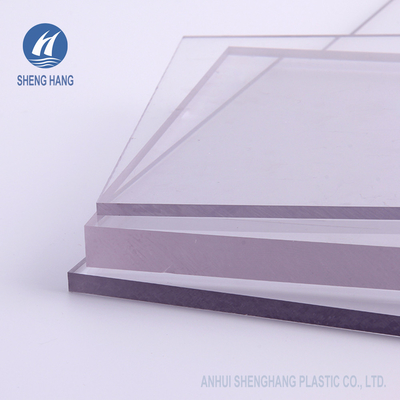

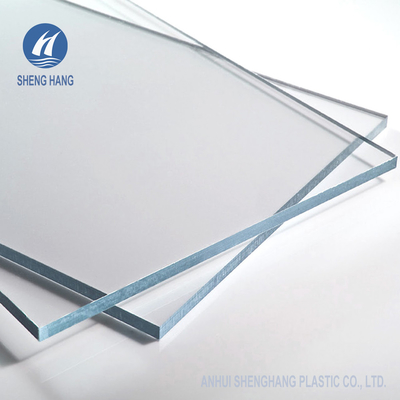

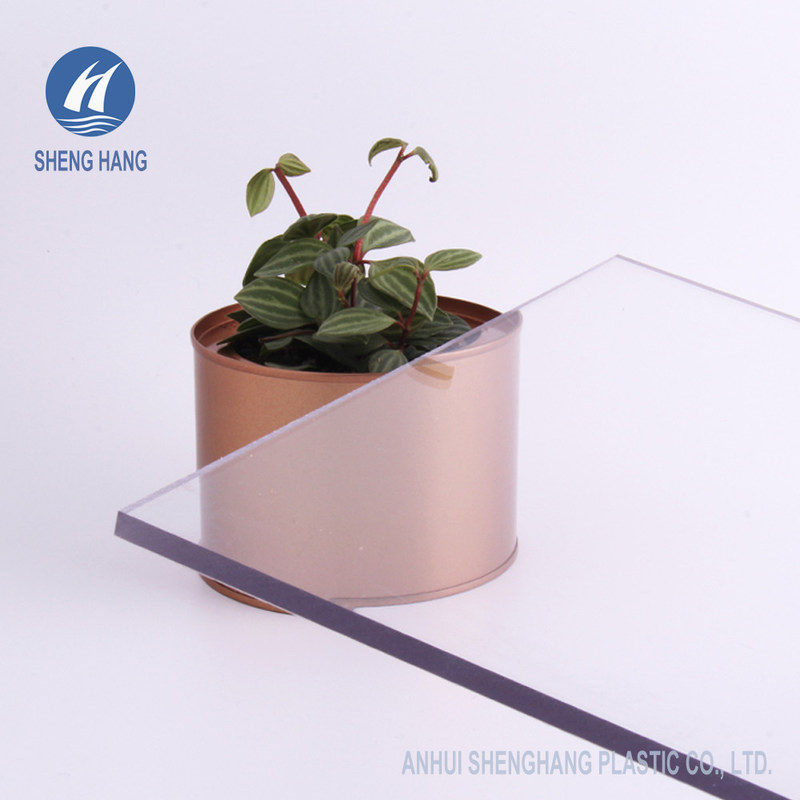

PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
The Polycarbonate Solid Sheet has excellent dimensional stability, which is very suitable for deep processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
Shenghang Plastic can provide the professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are checked and qualified.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Unusual decorations, corridors, and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings;
3) The transparent containers, front windshields of motorcycles, airplanes, trains, ships, vehicles, motorboats, submarines;
4) Advertising lightbox, telephone booths, street nameplates, and signboards;
5) Instrument and war industries - windscreens, shields;
6) Lighting materials, walls, roofs, windows, doors, screens, skylight, and other high-quality indoor decoration materials;
7) Sound insulation shields(acoustic barrier) on expressways and city overhead highways;
8) Agriculture greenhouses and sheds;
9) Ceiling material for awnings, canopy, carport, balcony;
10) Security products - shield, helmet, fences for bus and taxi drivers, protective cover and viewing window for industrial equipment;
