Product Details:
|
| Material: | PC | Color: | Transparent |
|---|---|---|---|
| Thickness Range: | 1.2mm~30.0mm | Width: | 1000mm, 1220mm, 2050mm, Customized |
| Length: | 2000mm, 2440mm, 3050mm, Customized | Standard Size: | 1000*2000mm, 1220*2440mm, 2050*3050mm |
| Fire Rating: | UL94 V-2, UL94 V-0 | UV Protection: | Double-Side UV Resistance |
| Quality Warranty: | 10 Years | Transport Package: | Kraft Paper, Pallet |
| Brand Of Raw Material: | Covestro, , | HS Code: | 3920610000 |
| OEM Production: | Acceptable | Processing Services: | Acceptable |
| Highlight: | 3cm Polycarbonate Solid Sheets,uv resistant polycarbonate sheets 30mm,uvproof 8 x 4 polycarbonate sheets |
||
UV Protected PC Solid Sheet 4 X 8 Transparent Polycarbonate Sheet
DESCRIPTION
Shenghang Plastic polycarbonate(PC) solid sheet is made of high-performance engineering plastic polycarbonate (PC) through the latest coextrusion technology. It has the characteristics of impact resistance, good light transmittance and light weight, and its strength is hundreds of times higher than that of reinforced glass and acrylic sheet. Shenghang Plastic Polycarbonate solid sheet has good processability and strong plasticity, and can be bent into arch and semi-circular shape according to the actual needs of the construction site. Shenghang Plastic Polycarbonate solid board can resist ultraviolet radiation for a long time and has excellent daylighting effect.
PRODUCT ADVANTAGES
* High transparency
* High light transmittance
* High impact strength
* UV Resistance
* Strong weather resistance
* Light weight
* Good fire resistance
* Good thermal insulation
* Suitable for processing
SPECIFICATIONS
*Thickness: 1.2mm ~ 20mm (mainly 2mm, 3mm, 4mm, 5mm, 6mm, 8mm,10mm,15mm)
*Width: 1220mm, 1560mm, 1820mm, 2100mm, customized
*Length: 2440mm, 3000mm, 30 meters per roll, customized
*Standard Size: 1220*2440mm, 2000*3000mm, customized
*Color: Transparent, brown, lake blue, blue, green, opal white, gray, black, yellow, orange, red, customized
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: half weight that of glass upon the same thickness
6) Ultraviolet resistance: 50um~80um one side or double-sided anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Fine plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing, etc.

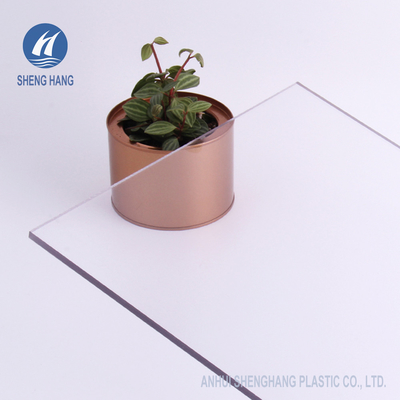

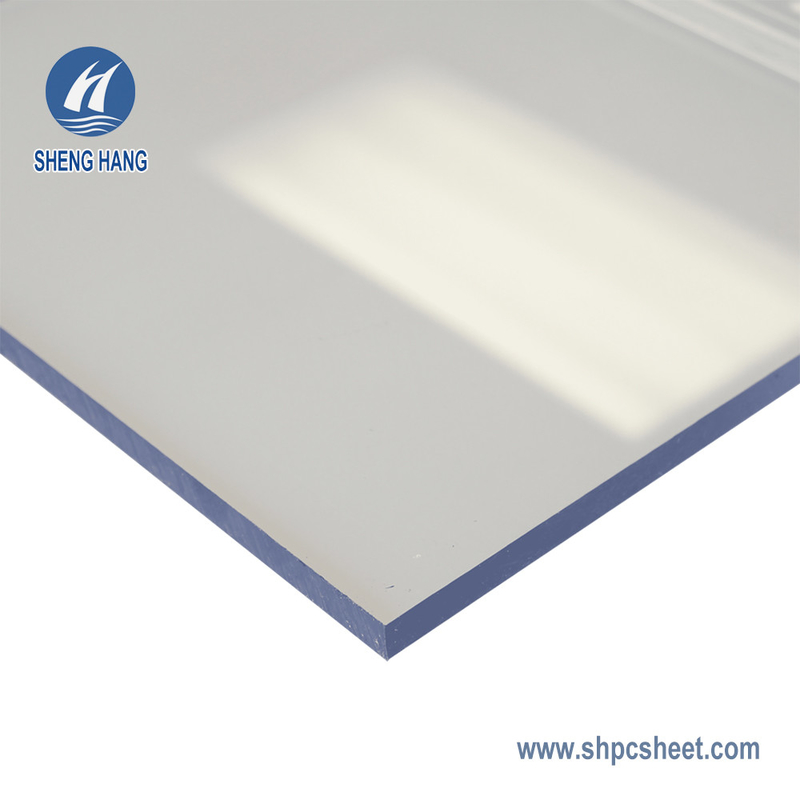

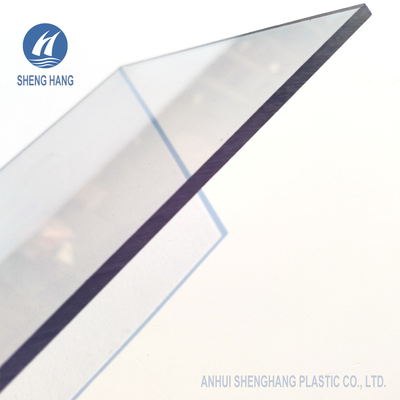

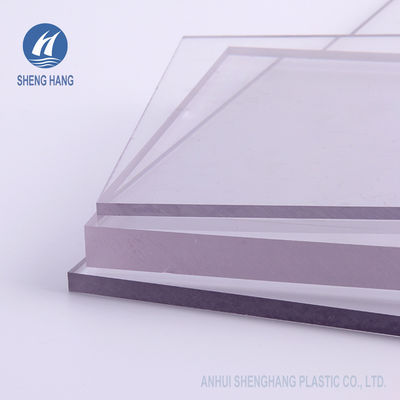

PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
The Polycarbonate Solid Sheet has excellent dimensional stability, which is very suitable for deep processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
Shenghang Plastic can provide the professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are checked and qualified.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Unusual decorations, corridors, and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings;
3) The transparent containers, front windshields of motorcycles, airplanes, trains, ships, vehicles, motorboats, submarines;
4) Advertising lightbox, telephone booths, street nameplates, and signboards;
5) Instrument and war industries - windscreens, shields;
6) Lighting materials, walls, roofs, windows, doors, screens, skylight, and other high-quality indoor decoration materials;
7) Sound insulation shields(acoustic barrier) on expressways and city overhead highways;
8) Agriculture greenhouses and sheds; Ceiling material for awnings, canopy, carport, balcony;
9) Security products - shield, helmet, fences for bus and taxi drivers, protective cover and viewing window for industrial equipment;
