Product Details:
|
| Material: | PC | Color: | Transparent |
|---|---|---|---|
| Thickness Range: | 1.2mm~30.0mm | Width: | 1000mm, 1220mm, 2050mm, Customized |
| Length: | 2000mm, 2440mm, 3050mm, Customized | Standard Size: | 1000*2000mm, 1220*2440mm, 2050*3050mm |
| Fire Rating: | UL94 V-2, UL94 V-0 | UV Protection: | Double-Side UV Resistance |
| Quality Warranty: | 10 Years | Transport Package: | Kraft Paper, Pallet |
| Brand Of Raw Material: | Covestro, , | HS Code: | 3920610000 |
| OEM Production: | Acceptable | Processing Services: | Acceptable |
| High Light: | 1.82MPa clear solid polycarbonate sheet,anti Impact 5mm solid polycarbonate sheet,50 Micron solid polycarbonate clear sheet |
||

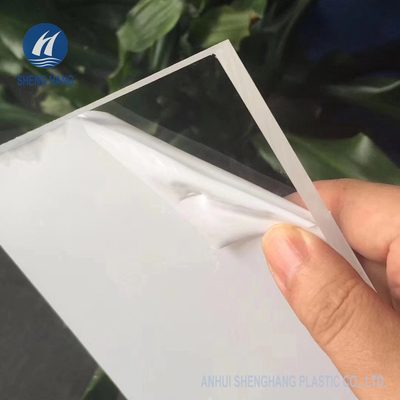

50 Micron UV Coating Plastic Daylighting Roof Clear Solid Polycarbonate Sheet
DESCRIPTION
Shenghang Plastic polycarbonate(PC) solid sheet is made from the raw material polycarbonate resin using the latest co-extrusion technology. It has high transparency and high impact strength, but weighs only half as much as glass.
Shenghang Plastic polycarbonate solid sheet is widely used in building lighting roof, special-shaped building decoration, canopy, industrial processing products, etc.
Shenghang Plastic solid polycarbonate sheet with double-sided UV protection coating ensures outdoor service life of above 10 years.
PRODUCT ADVANTAGES
* High transparency
* High light transmittance
* High impact strength
* UV Resistance
* Strong weather resistance
* Light weight
* Good fire resistance
* Good thermal insulation
* Suitable for processing
SPECIFICATIONS
*Thickness: 1.2mm ~ 20mm (mainly 2mm, 3mm, 4mm, 5mm, 6mm, 8mm,10mm,15mm)
*Width: 1220mm, 1560mm, 1820mm, 2100mm, customized
*Length: 2440mm, 3000mm, 30 meters per roll, customized
*Standard Size: 1220*2440mm, 2000*3000mm, customized
*Color: Transparent, brown, lake blue, blue, green, opal white, gray, black, yellow, orange, red, customized
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: half weight that of glass upon the same thickness
6) Ultraviolet resistance: 50um~80um one side or double-sided anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Fine plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing, etc.

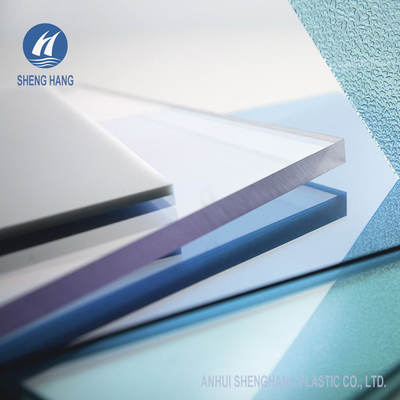

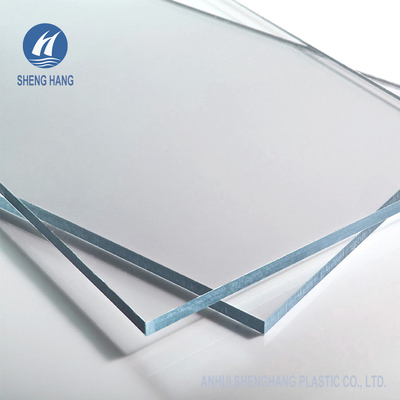

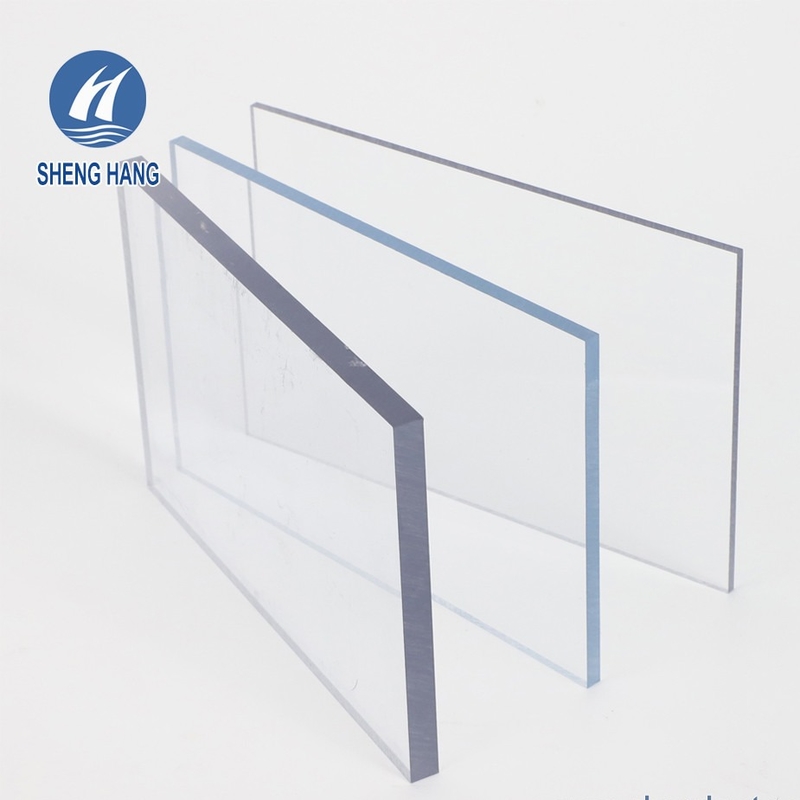

PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
The Polycarbonate Solid Sheet has excellent dimensional stability, which is very suitable for deep processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
Shenghang Plastic can provide the professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are checked and qualified.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Unusual decorations, corridors, and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings;
3) The transparent containers, front windshields of motorcycles, airplanes, trains, ships, vehicles, motorboats, submarines;
4) Advertising lightbox, telephone booths, street nameplates, and signboards;
5) Instrument and war industries - windscreens, shields;
6) Lighting materials, walls, roofs, windows, doors, screens, skylight, and other high-quality indoor decoration materials;
7) Sound insulation shields(acoustic barrier) on expressways and city overhead highways;
8) Agriculture greenhouses and sheds; Ceiling material for awnings, canopy, carport, balcony;
9) Security products - shield, helmet, fences for bus and taxi drivers, protective cover and viewing window for industrial equipment;
PACKING AND SHIPPING
