Product Details:
|
| Material: | PC | Color: | Transparent, Bronze, White, Blue, Green, Etc. |
|---|---|---|---|
| Thickness: | 1.2mm~25.0mm | Width: | 1000mm, 1220mm, 2050mm, Customized |
| Length: | 2000mm, 2440mm, 3050mm, Customized | Standard Size: | 1000*2000mm, 1220*2440mm, 2050*3050mm |
| Fire Rating: | UL94 V-2, UL94 V-0 | UV Protection: | Double-Side UV Resistance |
| Service Life: | Above 10 Years | Transport Package: | Pallet |
| Brand Of Raw Material: | Covestro, , | HS Code: | 3920610000 |
| OEM Production: | Acceptable | Processing Services: | Acceptable |
| High Light: | polycarbonate roof panels,uv polycarbonate panels 25mm,1.2mm transparent plastic roof panels |
||

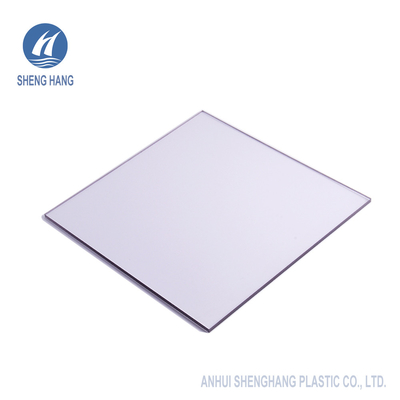

Double-sided UV Protection Plastic PC Panel Transparent Polycarbonate Solid Sheet
DESCRIPTION
SHENGHANG PLASTIC general polycarbonate solid sheet is a durable plastic sheet produced by coextrusion technology with thermoplastic polycarbonate resin as raw material. Polycarbonate solid sheet has the same transparency as glass, but its weight is only half that of glass. It has excellent thermal insulation performance, super impact resistance, smash resistance and non fragile, which is the main reason why it gradually replaces glass as a new material for doors and windows. SHENGHANG PLASTIC solid polycarbonate sheets come with double-sided UV protection and a 10 year warranty.
PRODUCT ADVANTAGES
* High transparency
* High light transmittance
* High impact strength
* UV Resistance
* Strong weather resistance
* Light weight
* Good fireproof performance
* Good thermal insulation
* Fine plasticity
* Good processability
SPECIFICATIONS
*Thickness: 1.2mm~25mm (Mainly1.5mm/2mm/3mm/4mm/5mm/6mm/8mm/10mm/12mm/15mm)
*Width: 1220mm, 1560mm, 1820mm, 2100mm, customized
*Length: 2440mm, 3000mm, 30 meters per roll, customized
*Standard Size: 1220*2440mm, 2000*3000mm, customized
*Color: Transparent, brown, lake blue, blue, green, opal white, gray, black, yellow, orange, red, customized
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: 1/2 of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um one side or double-sided anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Fine plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing, etc.

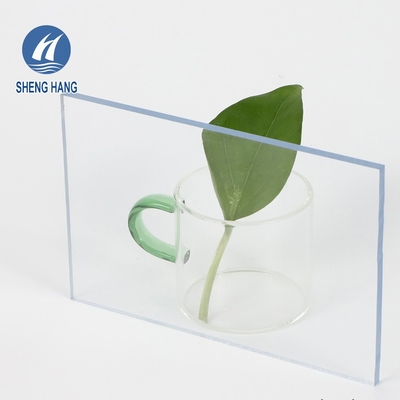

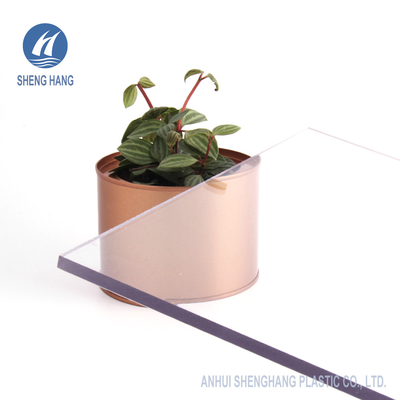

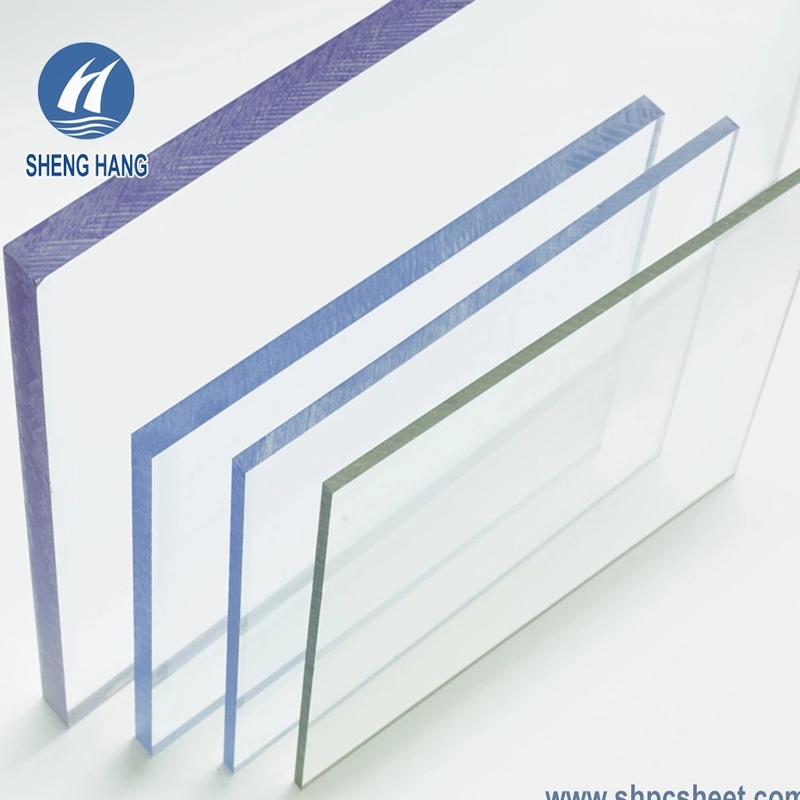

PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
Polycarbonate sheet has excellent dimensional stability, which is very suitable for secondary processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
We provide professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are checked and qualified.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Unusual decorations, corridors, and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings;
3) The transparent containers, front windshields of motorcycles, airplanes, trains, ships, vehicles, motorboats, submarines;
4) Advertising lightbox, telephone booths, street nameplates, and signboards;
5) Instrument and war industries - windscreens, shields;
6) Lighting materials, walls, roofs, windows, doors, screens, skylight, and other high-quality indoor decoration materials;
7) Sound insulation shields(acoustic barrier) on expressways and city overhead highways;
8) Agriculture greenhouses and sheds; Ceiling material for awnings, canopy, carport, balcony;
9) Security products - shield, helmet, fences for bus and taxi drivers, protective cover and viewing window for industrial equipment;
