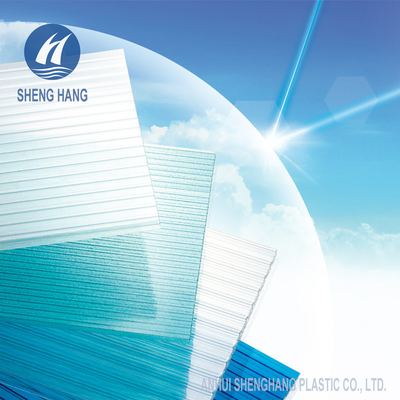

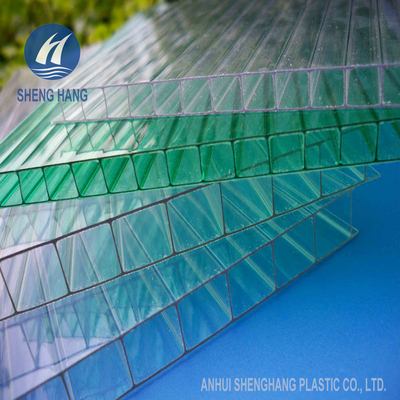

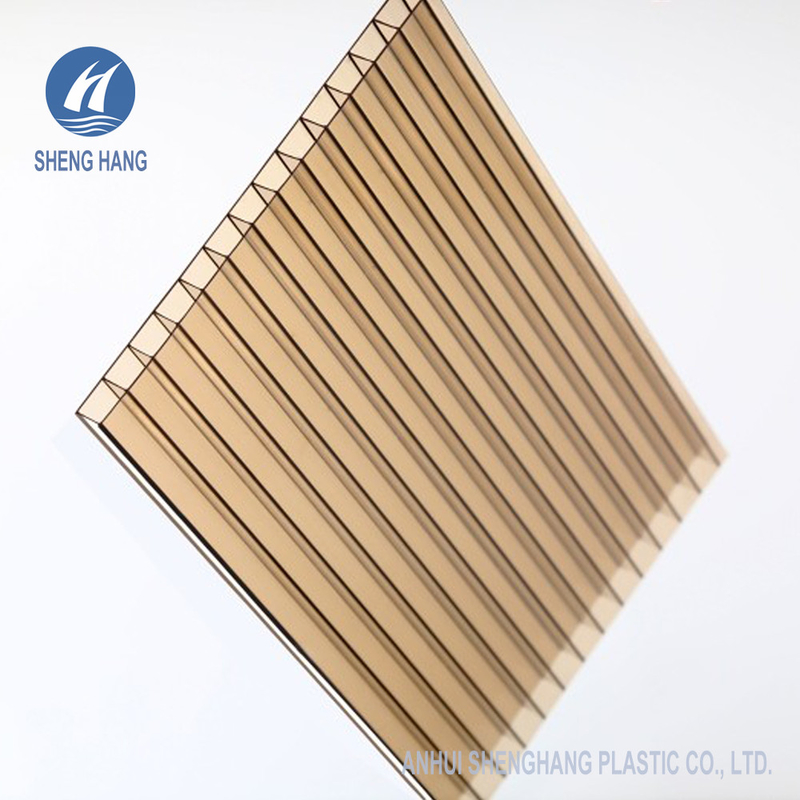

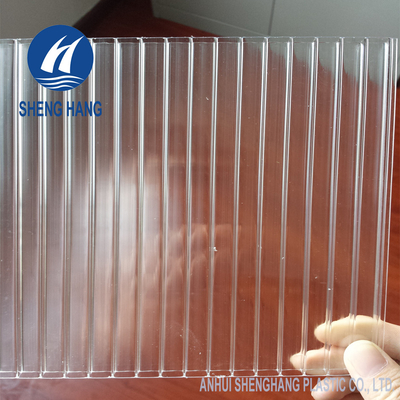

12mm Twin Wall Polycarbonate Sheet Anti Fire Crack Proof

100% Virgin Material Twin Wall Polycarbonate PC Roofing Board

DESCRIPTION

Polycarbonate sheet, also known as PC sheet, is made from polycarbonate polymer with advanced formula and the latest extrusion technology. SHENGHANG PLASTIC twin wall polycarbonate sheet is a new type of lightweight and high light transmittance building material, which is widely used in roof lighting of factories, stadiums, greenhouses and other buildings. Compared with color steel plate and FRP sheet, twinwall PC sheet has more light weight, weather resistance, super strength, flame retardant, sound insulation and other properties, and has become a popular building decoration material.

PRODUCT ADVANTAGES
*Light weight
*High impact strength
*High light transmittance
*UV resistance
*Strong weather resistance
*Excellent thermal insulation
*Easy to install and process

*Customized size and color

SPECIFICATIONS
1) Thickness: 4mm~12mm(4mm, 5mm, 6mm, 8mm, 10mm)
2) Standard size: 2100*6000mm, 2100*5800mm

3) Colors: Transparent(clear), Bronze, Green, Blue, Lake blue, White, Gry, Silver, Yellow, Orange, Red, Customized.
4) The color and size of twin-wall polycarbonate sheets can be customized.
5) Both sides of polycarbonate hollow sheets are covered with PE protective film. The Printing(logo and brand) on the PE film can be customized.

PRODUCT SHOW

COLOR SELECT

PRODUCT CATEGORY

FEATURES

1) Lightweight: Only 1/12 of the weight of glass of the same thickness

2) High impact strength: 80 times that of glass, 15 times that of acrylic sheet

3) Fire resistance: UL94 V-2, UL94 V-0

4) Good light transmittance: Up to 85%

5) Ultraviolet resistance: 50~80um UV coating

6) Excellent physical, mechanical, and electrical properties

7) Weather resistance: -40°C ~+120°C

8) Excellent thermal insulation performance



OPTIONAL FUNCTIONS
1. Anti-drip
The new generation of the anti-drip sheets is made of hydroxyl-coated nano-silicone anti-fogging material imported from the original. This hydrophilic anti-fogging material can increase the tension of water vapor on the surface of the polycarbonate sheet. Its typical contact angle of water droplets can be as low as 8 degrees. The water droplets formed by the accumulation of fog will quickly distribute downward along the slope of the inner wall of the polycarbonate sheet. It is suitable for lighting roofs that do not allow droplets, especially for swimming pools, agricultural greenhouses, and plant ecological gardens.

2. Frosted
The twin-wall polycarbonate sheet is modified by a special BAYER brilliant masterbatch while maintaining high transmittance. Its inner wall particle effect changes the glare band formed by light refraction of
ordinary board, so that the sunlight becomes soft and does not glare.


FACTORY TOUR

TYPICAL APPLICATIONS
1. Awning for the stadium, bus stop, airport.

2. Lighting system for passage, walkway, the entrance of subway.

3. Agriculture greenhouse, canopy for vegetables, animals, flowers.

4. Heat insulation, soundproof for expressway, buildings.

5. Bus stop, advertising lamp box, canopy for ATM.

6. Lighting decoration for the workshop, commercial canopy, villas.

7. Lighting system for skylight, cellar, dome.

8. Decoration panel for inner/outer wall, roof.


PACKING & SHIPPING

LOADING QUANTITY OF CONTAINER
