Product Details:
|
| Material: | Polycarbonate(PC) | Color: | Transparent |
|---|---|---|---|
| Thickness: | 1.2mm~25.0mm | Width: | 1000mm, 1220mm, 2050mm, Customized |
| Length: | 2000mm, 2440mm, 3000mm, Customized | Standard Size: | 1000*2000mm, 1220*2440mm, 2000*3000mm |
| Fire Rating: | UL94 V-2, UL94 V-0 | UV Protection: | Double-Side UV Resistance |
| Service Life: | Above 10 Years | Transport Package: | PE Protective Film |
| Brand Of Raw Material: | Covestro, , | HS Code: | 3920610000 |
| Highlight: | transparent pc sheet ODM,transparent polycarbonate sheet Lightweight,1220mm Transparent PC Sheet |
||

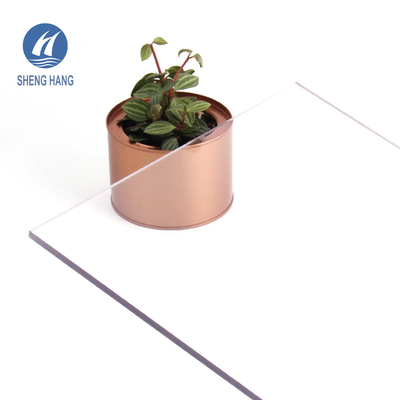

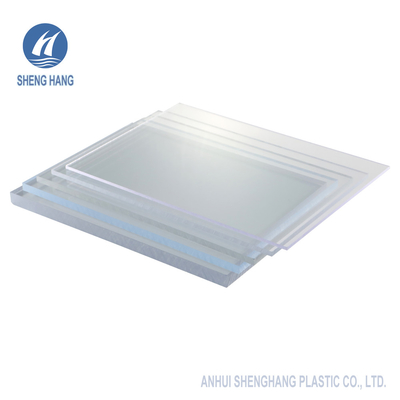

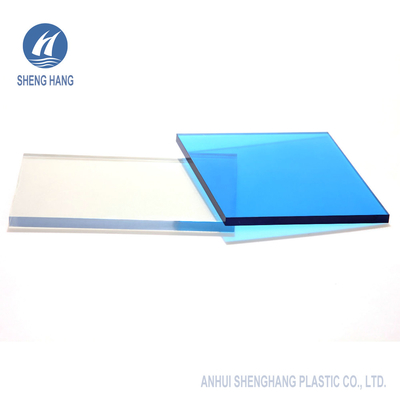

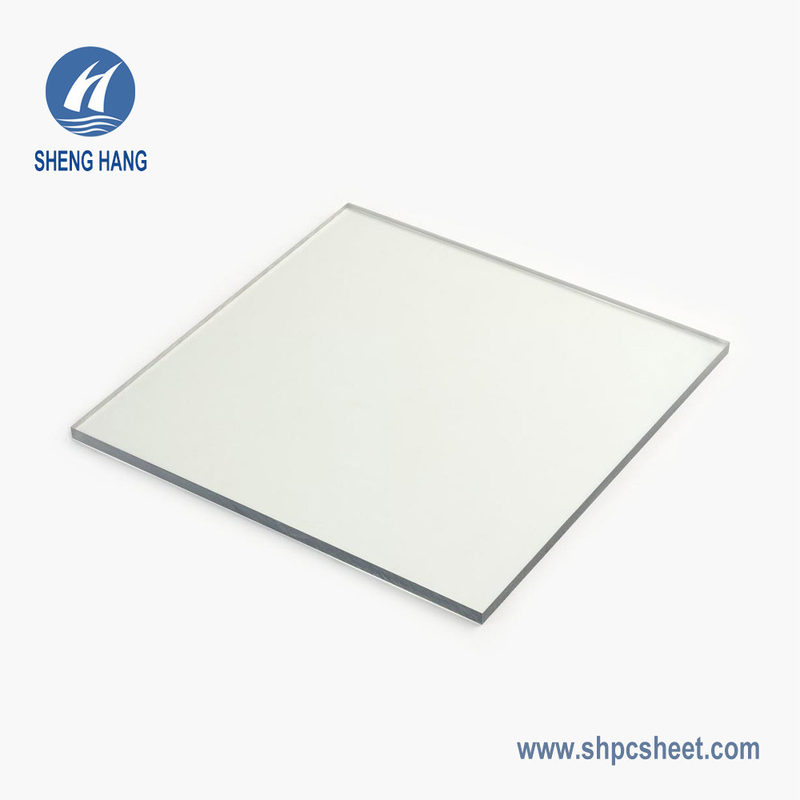

UV Resistance Transparent PC Sheet General Polycarbonate Solid Sheet
DESCRIPTION
SHENGHANG PLASTIC General Polycarbonate PC Solid Sheet is a new type of green environmental protection material, which has high transparency and high impact strength, but the weight is less than half of the glass.SHENGHANG PLASTIC General Polycarbonate PC Solid Sheet has good dimensional stability, it is very suitable for deep processing, such as cold processed and hot-formed. It is widely used in the construction, decorations, DIY, industry, and security industry.
PRODUCT ADVANTAGES
* High transparency
* High light transmittance
* High impact strength
* High tenacity(Unbreakable)
* UV Resistance
* Strong weather resistance
* Lightweight
* Good fireproof performance
* Good thermal insulation
* Fine plasticity
* Good processability
SPECIFICATIONS
*Thickness: 1.0mm~30mm (Mainly1.5mm/2mm/3mm/4mm/5mm/6mm/8mm/10mm/12mm/15mm)
*Width: 1220mm, 1560mm, 1820mm, 2100mm, customized
*Length: 2440mm, 3000mm, 30 meters per roll, customized
*Standard Size: 1220*2440mm, 2000*3000mm, customized
*Color: Transparent(clear), brown, lake blue, blue, green, opal white, grey, black, yellow, orange, red, customized
| FEATURES | TEST METHOD | TEST CONDITION | UNIT | DATA |
| Density | ASTM D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | ASTM D-648 | Load:1.82 MPa | ºC | 135 |
| Short-term Service Temperature | ºC | -50~+120 | ||
| Long Service Temperature | ºC | -50~+100 | ||
| Linear Expansion Coefficient | ASTM D-696 | cm/cmºC | 6.5x10-5 | |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 | |
| Yield Tensile Strength | ASTM D-638 | 10mm/min | Mpa | 62 |
| Tensile Strength at Break | ASTM D-638 | 1mm/min | Mpa | 65 |
| Yield Elongation | ASTM D-638 | 10mm/min | % | 6 |
| Elongation at Break | ASTM D-638 | 10mm/min | % | >70 |
| Elastic Tensile Modulus | ASTM D-638 | 1mm/min | Mpa | 2300 |
| Bending Strength | ASTM D-790 | 1mm/min | Mpa | 93 |
| Flexural Modulus | ASTM D-790 | 1.3mm/min | Mpa | 1890 |
| Shock Drop | (ISO 6603/1 E50) | 0.8mm sheet | J | 50 |
| Rockwell Hardness | ASTM D-785 | R Scale | 118 | |
| Light Transmittance | ASTM D-1003 | Transparent | % | 90% |
| Haze | ASTM D-1003 | Transparent | % | <0.5 |
| Yellowing Index | ASTM D-1003 | Transparent | YI | <1 |
FEATURES
1) Good light transmission: reaches 12%- 92% depending on color and thickness
2) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheet
3) Weather resistance: applicable temperature -40°C ~+120°C
4) Fire resistance: UL94 V-2, UL94 V-0, ASTM E84 CLASS A
5) Lightweight and easy installation: 1/2 of glass based on the same thickness
6) Ultraviolet resistance: 50um~80um one side or both sides anti-UV coating
7) Sound insulation and noise reduction: 5mm sheet attenuate 23db, 10mm sheet attenuate 35db
8) Heat insulation: heat Conductivity - 0.2 W/m2· K
9) Fine plasticity: Suitable for processing such as carving, drilling, cutting, bending, hot forming, printing, etc.
PRODUCT SHOW
PRODUCT CATEGORIES
PROCESSING SERVICE
Polycarbonate sheet has excellent dimensional stability, which is very suitable for secondary processing. Its processed products are widely used in industry, security, construction, new energy vehicles, and many other industries.
We provide professional customized plastic sheets especially polycarbonate sheet and acrylic sheet processing services, including machining, carving, engraving, precision cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, silk screen printing, and so on.
Welcome to provide drawings or samples, communicate and confirm the processed products. As for customized products, our minimum order quantity is 1 piece. You can cooperate with us for batch orders after the samples are checked and qualified.
FACTORY TOUR
TYPICAL APPLICATIONS
1) Unusual decorations, corridors, and pavilions in gardens and recreational and rest places;
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings;
3) The transparent containers, front windshields of motorcycles, airplanes, trains, ships, vehicles, motorboats, submarines;
4) Advertising lightbox, telephone booths, street nameplates, and signboards;
5) Instrument and war industries - windscreens, shields;
6) Lighting materials, walls, roofs, windows, doors, screens, skylight, and other high-quality indoor decoration materials;
7) Sound insulation shields(acoustic barrier) on expressways and city overhead highways;
8) Agriculture greenhouses and sheds; Ceiling material for awnings, canopy, carport, balcony;
9) Security products - shield, helmet, fences for bus and taxi drivers, protective cover and viewing window for industrial equipment;
PACKING AND SHIPPING
